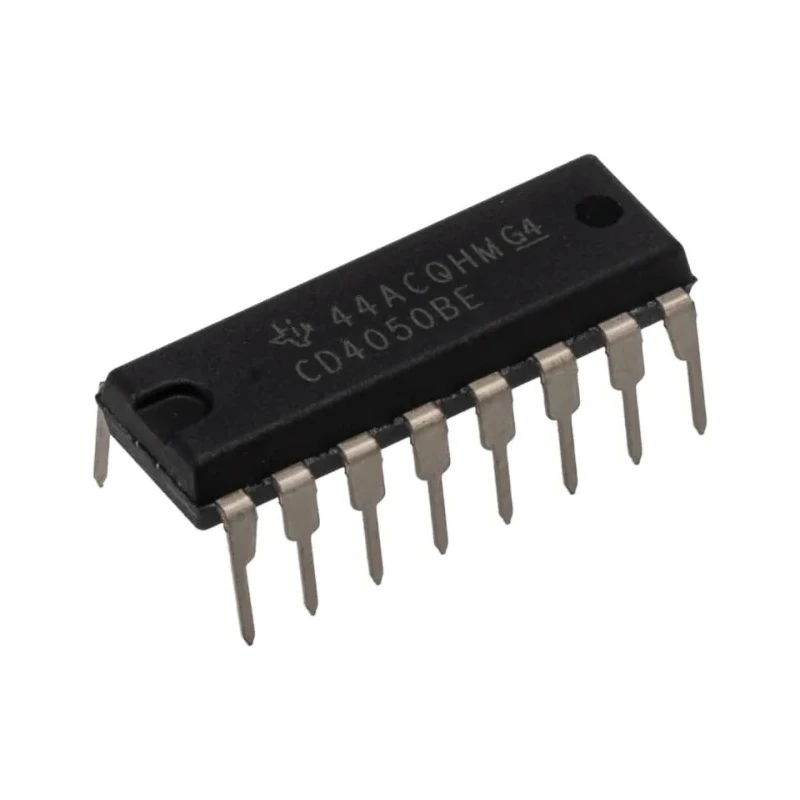

Texas Instruments Non-inverting CMOS Buffer IC 6 Elements 16-Pin PDIP CD4050BE

Texas Instruments CD4050BE is a non-inverting buffer integrated circuit belonging to the 4000 series CMOS logic family. It offers six buffer elements in a compact 16-pin PDIP through-hole package, providing versatile digital buffering solutions.

Designed for applications requiring reliable logic level buffering, this IC operates over a wide voltage range from 3 to 18 volts and supports operation in harsh temperature conditions ranging from -55°C up to 125°C. The CD4050BE's CMOS technology ensures low power dissipation while maintaining robust noise immunity.

Its maximum propagation delay time of 140 ns at specified load capacitance makes it suitable for timing-critical digital circuits. The device's output current capabilities include up to -5.2 mA at high level and 26 mA at low level, enabling it to drive various logic inputs and loads effectively.

The package dimensions are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, compatible with standard PCB layouts and through-hole assembly methods. Widely used in industrial, electronics manufacturing, and embedded systems, the CD4050BE buffer IC provides essential signal conditioning for digital logic circuits.

Offers 6 non-inverting buffer elements on a single chip. Utilizes CMOS logic family for low power consumption and high noise immunity. Features a 16-pin PDIP through-hole package for easy PCB mounting. Wide operating voltage range from 3 V to 18 V supports versatility in applications.

Operates reliably between -55°C and 125°C, suitable for industrial environments. Maximum propagation delay time is 140 ns at specified load conditions. Maximum high-level output current is -5.2 mA and maximum low-level output current is 26 mA.

Dimensions measure 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height. This buffer is ideal for use in electronic design, embedded circuit prototyping, and manufacturing of digital devices requiring stable signal buffering and logic level shaping.
