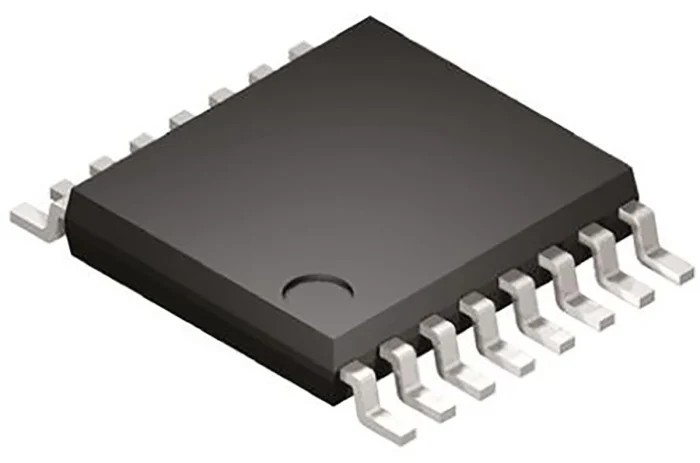

Texas Instruments 6-Channel Non-Inverting CMOS Buffer & Converter Combination Circuit, 16-Pin TSSOP CD74HC4050PWR

Texas Instruments CD74HC4050PWR is a high-speed 6-channel non-inverting CMOS buffer and converter combination circuit housed in a 16-pin TSSOP surface mount package. Operating at voltages ranging from 2 to 6 V, this device delivers CMOS compatibility for both input and output signals, making it suitable for a wide range of digital logic applications.

The device belongs to the 74HC4000 logic family, designed to provide logic speeds close to LSTTL devices while maintaining the low power consumption characteristic of CMOS technology. It offers excellent performance with a maximum propagation delay time of 130 nanoseconds under capacitive load, ensuring reliable signal timing and processing.

The CD74HC4050PWR supports six non-inverting buffer and converter channels, each capable of driving up to 10 LSTTL loads, enhancing load driving capability in digital circuits. Its functionality includes buffering and conversion of input signals with a non-inverting CMOS output type.

With an operating temperature range from -55°C to 125°C, it ensures stable performance even in harsh environments. The device supports a maximum high-level output current of -5.2 mA and a low-level output current of 5.2 mA, allowing it to interface effectively in various system designs.

Physically, the package measures 5 mm in length and 1.15 mm in height, offering a compact footprint ideal for space-constrained electronic assemblies. This device is surface mounted, simplifying integration in modern PCB manufacturing processes.

The CD74HC4050PWR is widely used in industrial, consumer electronics, and embedded systems applications that require efficient signal buffering and level conversion between different logic families.

Comprises six non-inverting buffer and converter channels. Operates within a supply voltage range of 2 V to 6 V. Surface mountable 16-pin TSSOP package. Maximum propagation delay time at capacitive load is 130 ns. CMOS input and output compatibility ensures flexibility.

Capable of operating within a temperature range of -55°C to 125°C. Maximum high-level output current of -5.2 mA and low-level output current of 5.2 mA. Compact device size supports small form factor PCB designs. Part of the 74HC4000 series with low power consumption and high speed.

Ideal for signal buffering and logic level conversion in electronic devices. Explore more electronic components and semiconductor devices at EnvMart to find the ideal products for your industrial, laboratory, or manufacturing applications.
