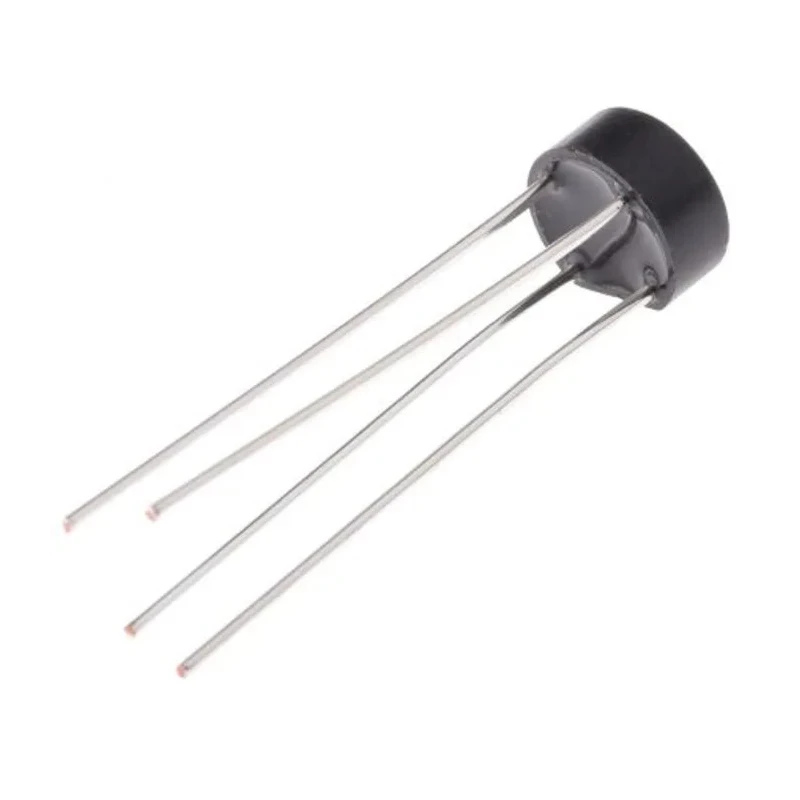

Vishay Bridge Rectifier, Single Phase, 4-Pin Through Hole, 200 V Peak Reverse Voltage, 50 A Surge Current B125C1500G-E4/51
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 5.6mm |
| Length | 9.86mm |
| Model | B125C1500G-E4/51 |
| Width | 8.84mm |
| Mount Type | Through Hole |
| Series | B125C1 |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | WOG |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 1.6A |
| Peak Forward Voltage Vf | 1V |
| HY Electronic Corp Bridge Rectifier, 600 V 50 A, 4-Pin SingleBrand | HY Electronic Corp |
| Vishay Bridge Rectifier, 125 V 50 A, 4-Pin SingleBrand | Vishay |
Key Features
- Ensures efficient AC to DC conversion with low forward voltage drop of 1 V.
- Supports continuous forward current of 1.6 A suited for various electronic applications.
- Operates reliably from -40°C up to a maximum temperature of 125°C.
- Constructed with a compact WOG package suited for PCB through hole mounting.
- Features a robust wire lead structure enhancing thermal performance and mechanical stability.
- Includes 4-pin configuration for easy integration and secure mounting.
- Ideal for electronics, power supply, and semiconductor applications needing single-phase rectification.
- Manufactured with high dielectric strength case ensuring durability and safety.
Product Description
Vishay B125C1500G-E4/51 Bridge Rectifier is a high-performance electronic component designed for converting alternating current (AC) into direct current (DC) through full-wave rectification. This single-phase 4-pin device operates efficiently with a peak reverse repetitive voltage rating of 200 V and a surge current handling capacity of 50 A, making it suitable for demanding electrical and electronic circuits.
The rectifier features a low forward voltage drop of 1 V that reduces power losses during operation. Its continuous forward current rating of 1.6 A ensures steady and reliable conduction across a broad temperature range from -40°C to 125°C, allowing durability in harsh environmental conditions.
The unit is housed in a compact WOG package designed for through hole mounting on printed circuit boards (PCBs). The robust wire lead structure enhances both thermal management and mechanical stability, ensuring long service life and performance reliability.
The 4-pin configuration enables simple and secure integration into various electronic systems including power supplies, electronic controls, and industrial machinery circuits requiring reliable bridge rectifiers.
Efficient AC to DC conversion with low forward voltage drop. Wide operating temperature range from -40°C to 125°C. Robust wire lead design for improved thermal and mechanical performance. Compact WOG package for easy through hole PCB mounting.
High dielectric strength case for enhanced durability. 4-pin configuration for reliable circuit integration. Suitable for power electronics and semiconductor rectification applications.
These bridge rectifiers find extensive usage in industries including electronics manufacturing, power supply units, industrial control systems, and energy management equipment. The product's reliable performance at elevated temperatures and high surge current rating ensures safety and efficiency in critical applications.
Manufactured in China under stringent quality standards, the Vishay B125C1500G-E4/51 Bridge Rectifier offers a trusted solution for engineers and designers seeking robust power conversion components.
Explore EnvMart’s comprehensive catalog for more Vishay semiconductor components and related electronic devices designed for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This bridge rectifier has a continuous forward current rating of 1.6 A.
The maximum operating temperature for this unit is 125°C.
The rectifier features a low forward voltage drop of 1 V, which reduces power losses during operation.
It can handle a peak non-repetitive forward surge current of 50 A.
This model is designed for through hole mounting on printed circuit boards (PCBs).
The dimensions are 9.86 mm in length, 8.84 mm in width, and 5.6 mm in height.
The minimum operating temperature for this unit is -40°C.
It features a single-phase configuration with a 4-pin design for easy integration.
This model is suitable for various electronic applications, including power supplies and industrial machinery circuits.
This bridge rectifier is manufactured in China.
The high dielectric strength case enhances durability and safety during operation.
