Vishay 40 V 3 A Schottky Diode 2-Pin DO-214AA B340LB-E3/52T

Free Delivery in India | Lowest Global Shipping Charges

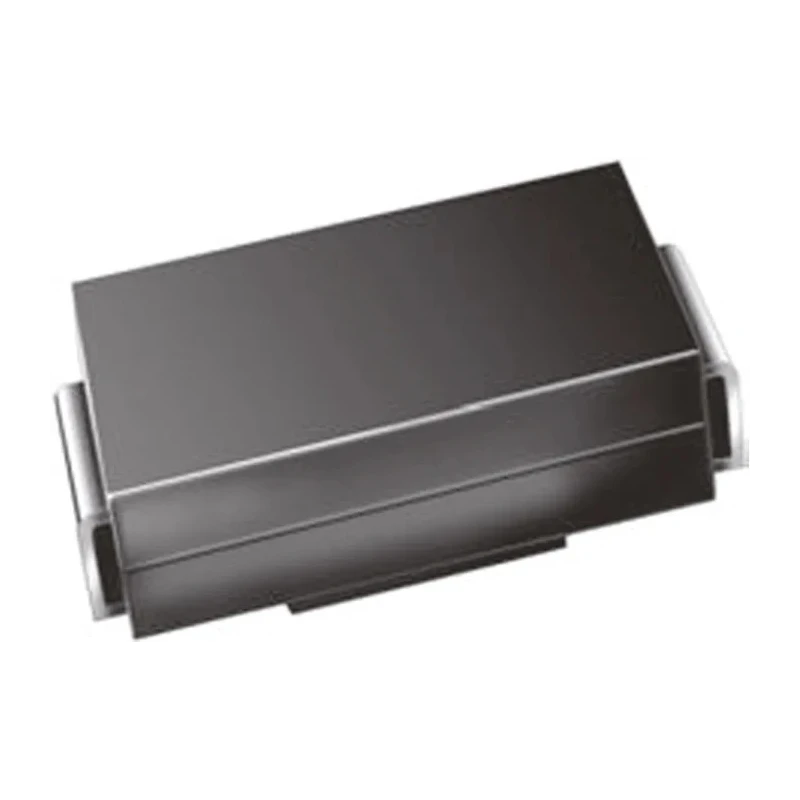

Vishay 40 V 3 A Schottky Diode 2-Pin DO-214AA B340LB-E3/52T

Name: Vishay 40 V 3 A Schottky Diode 2-Pin DO-214AA B340LB-E3/52T
Brand: Vishay
SKU: 376256
Price: 0.34 USD
Availability: InStock



Category Semiconductor Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	2.24mm
Length	4.57mm
Model	B340LB-E3/52T
Width	3.94mm
Mount Type	Surface
Series	B340LB-E3
Maximum Operating Temperature	150°C
Package Type	DO-214AA
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	3A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	40mA
Peak Non-Repetitive Forward Surge Current Ifsm	100A
Maximum Forward Voltage Vf	450mV

Key Features

High performance Schottky rectifier diode with very low forward voltage drop.
Fast switching capability suitable for low power loss applications.
Maximum continuous forward current of 3 A ensures robust operation.
Peak reverse repetitive voltage rated at 40 V for reliable reverse voltage protection.
Compact DO-214AA surface mount package with dimensions 4.57 mm length, 3.94 mm width, and 2.24 mm height.
Minimum operating temperature down to -65°C allows harsh environment use.
Maximum operating temperature up to 150°C suitable for elevated temperature environments.
Peak forward surge current of 100 A for short duration high current spikes handling.

Product Description

Vishay B340LB-E3/52T is a surface mount Schottky diode designed with a DO-214AA 2-pin package suitable for compact, high efficiency electronic power circuits. This Schottky rectifier diode offers a maximum continuous forward current capability of 3 amperes and a peak reverse repetitive voltage rating of 40 volts, making it ideal for applications requiring fast switching and low power loss.

The diode features a very low forward voltage drop of 450 mV, reducing conduction losses and improving overall device efficiency. With peak forward surge current of 100 A, it can withstand transient high current conditions, while a low peak reverse current of 40 mA ensures reduced leakage currents.

Operating temperature range from -65°C to 150°C allows usage in various industrial, automotive, and commercial electronic environments. Its compact dimensions of 4.57 mm length, 3.94 mm width, and 2.24 mm height in a surface mount package facilitate space-saving PCB designs.

This diode is part of Vishay's B340LB-E3 series of Schottky rectifiers, well suited for power supplies, voltage clamping, and polarity protection in industrial and consumer electronics.

High efficiency low forward voltage drop for power savings. Fast switching for minimized switching losses. Robust surge current capability for transient resilience. Wide operating temperature range for versatile deployment.

Compact surface mount package for modern PCB layouts. Low leakage current ensuring power retention. Single diode configuration optimized for rectification. Schottky semiconductor construction for faster recovery. Package includes one Vishay B340LB-E3/52T Schottky Diode supplied as tape for insertion in automated assembly lines. This product is manufactured in China and shipped new.
