Vishay 60 V 2 A Schottky Diode, 2-Pin DO-204AC SB260-E3/54

Free Delivery in India | Lowest Global Shipping Charges

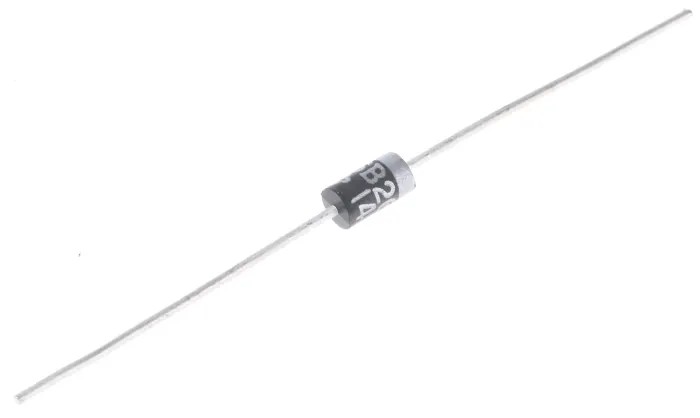

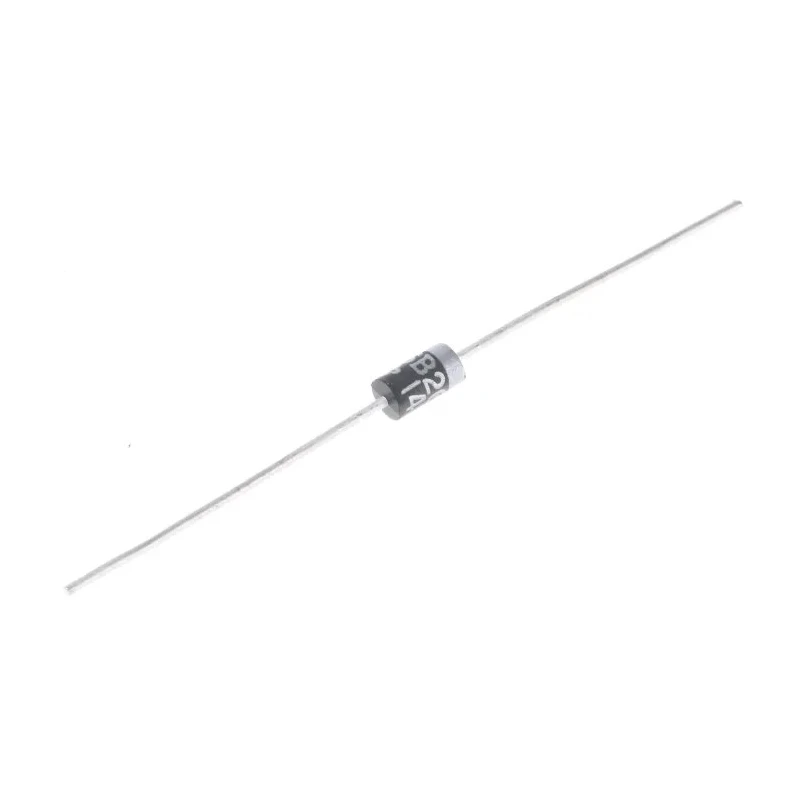

Vishay 60 V 2 A Schottky Diode, 2-Pin DO-204AC SB260-E3/54

Name: Vishay 60 V 2 A Schottky Diode, 2-Pin DO-204AC SB260-E3/54
Brand: Vishay
SKU: 375741
Price: 0.36 USD
Availability: InStock



Category Schottky Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	3.6mm
Brand	Vishay
Length	7.6mm
Model	SB260-E3/54
Mount Type	Through Hole
Series	SB260
Maximum Operating Temperature	150°C
Case	DO-204AC (DO-15)
Package Type	DO-204AC
Minimum Operating Temperature	-65°C
Terminals	Matte tin plated leads, solderable per
Pin Count	2
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	8μA
Peak Non-Repetitive Forward Surge Current Ifsm	60A
Maximum Forward Voltage Vf	680mV
Vishay 60V 2A, Schottky Diode, 2-Pin DO-204AL VS-21DQ06Brand	Vishay

Key Features

Features guardring for overvoltage protection ensuring durable operation.
Offers very small conduction losses with a low forward voltage drop of 680mV.
Extremely fast switching and high frequency operation for efficient performance.
Capable of handling peak non-repetitive forward surge currents up to 60 A.
Through-hole mounting with DO-204AC package type for easy PCB integration.
Operating temperature range from -65°C to 150°C for versatile applications.
Terminals feature matte tin plated leads solderable per industry standards.
Compliant with RoHS and designed as commercial grade, suitable for various industrial uses.

Product Description

Vishay SB260-E3/54 Schottky Diode 2-Pin DO-204AC is a precision diode designed for use in electronic circuits requiring high efficiency and reliability. Rated for a maximum continuous forward current of 2 A and peak reverse repetitive voltage of 60 V, this single diode provides excellent performance with very low forward voltage drop and minimal conduction loss.

The diode incorporates a guardring for enhanced overvoltage protection, making it suitable for demanding industrial applications such as low voltage high frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits. Its fast switching capability and high surge current tolerance up to 60 A further enable robust operation in various environments.

Constructed with a DO-204AC (DO-15) case, the diode is designed for through-hole mounting and features matte tin plated leads that comply with J-STD-002 and JESD 22-B102 for solderability. The molding compound meets UL 94 V-0 flammability rating, endorsing safety and durability.

Guardring for overvoltage protection enhances diode lifespan. Low forward voltage drop of 680mV reduces power losses. Extremely fast switching supports high frequency electronic designs. Capable of handling peak surge currents of 60 A for transient events.

Works reliably across a broad temperature range from -65°C to 150°C. Through-hole mounting with standard DO-204AC package for ease of assembly. Matte tin plated leads ensure solid solder joints and mechanical stability. RoHS compliant and commercial grade suitable for various industrial sectors.

This diode finds applications in electronic component assemblies, power and semiconductor devices essential in electronics manufacturing, industrial automation, and telecommunications. Its reliable operation under high frequency and surge conditions makes it a preferred choice for engineers designing robust power management solutions.

Explore more Schottky Diode solutions and industrial-grade electronic components at EnvMart to meet your manufacturing and engineering requirements.
