Texas Instruments 2-Element Uni-Directional ESD Protection Diode 150 W, 3-Pin SOT-323 TPD2E007DCKR

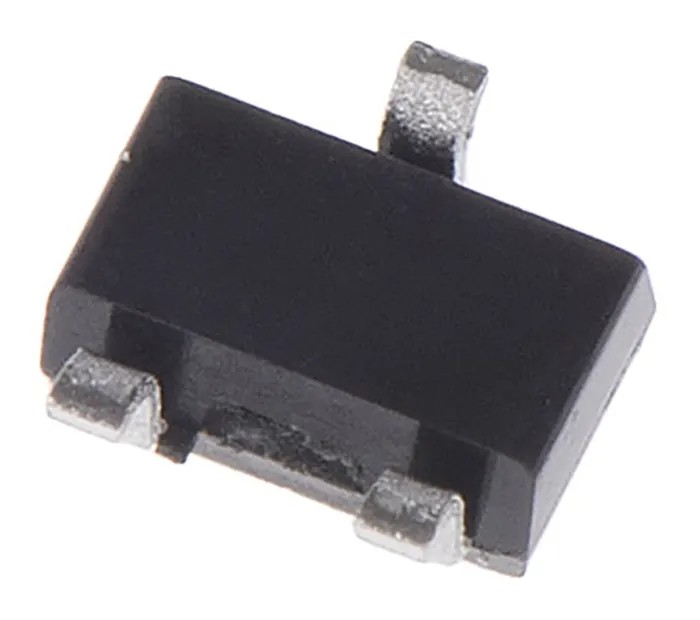

Texas Instruments TPD2E007DCKR 2-Element Uni-Directional ESD Protection Diode is engineered for robust electrostatic discharge protection with a peak pulse power dissipation rating of 150 W. It features a compact 3-pin SOT-323 surface mount package that is suitable for space-sensitive electronics designs.

This diode operates over a wide temperature range from -40°C to 85°C, delivering reliable transient voltage suppression in demanding applications. Its low leakage current of 50 nA ensures energy efficiency in sensitive circuits.

The device includes two elements per chip configured in series providing superior suppression characteristics. Its uni-directional configuration makes it ideal for protecting components in USB 3.0 interfaces and other high-speed data lines against electrostatic surges.

Additional features include a maximum peak pulse current of 4.5 A and a minimum breakdown voltage of 14 V, providing effective defense against high voltage spikes while maintaining signal integrity.

Peak pulse power dissipation of 150 W ensures high surge resilience. Maximum peak pulse current rating of 4.5 A for durable performance. Low reverse leakage current of 50 nA for optimal efficiency. Compact SOT-323 package supports efficient PCB mounting.

Wide operating temperature range from -40°C to 85°C for diverse environments. Uni-directional diode configuration tailored for transient voltage suppression. Two elements per chip enhance ESD protection capabilities. Designed for integration in USB 3.0 interface and high-speed data applications.

Manufactured to the TPD2E007 series standards by Texas Instruments.

This product is recommended for use in electronic component assemblies requiring efficient ESD protection, including power and connector subsystems, EMI protection circuits, and transient voltage suppression applications in automotive, industrial, and consumer electronics sectors.
