DiodesZetex 1 2-Input NAND Schmitt Trigger Input Logic Gate, 5-Pin SOT-25 74AHC1G00W5-7

DiodesZetex 74AHC1G00W5-7 is a surface mount 1 2-input NAND logic gate featuring Schmitt trigger inputs packaged in a compact 5-pin SOT-25 device. It belongs to the AHC logic family, delivering high-speed and low-power operation. The Schmitt trigger inputs provide improved noise immunity, making the device suitable for environments with electrical noise.

This logic gate operates over a wide supply voltage range from 2V to 5.5V, ensuring versatility for various low voltage electronic circuits. The device guarantees a maximum propagation delay time of 9.5 nanoseconds under specified load conditions, enabling fast switching and precise timing in digital applications.

With operating temperature ratings from -40°C to 125°C, it is engineered for industrial and commercial use in harsh conditions. The push-pull output stage sources and sinks currents up to 8 mA, supporting diverse load requirements.

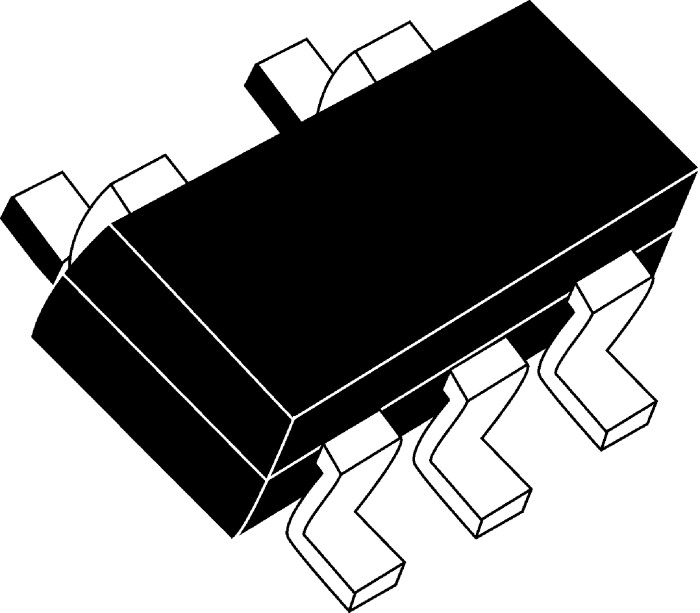

The compact SOT-25 package offers efficient board layout and space savings for modern electronic assemblies. Single gate integration allows system designers to reduce component quantity and simplify PCB designs.

Typical use cases for this NAND Schmitt trigger logic gate include industrial control systems, signal conditioning circuits, embedded systems, and general-purpose digital logic implementations requiring robust noise immunity and high-speed performance.

Provides NAND logic function with Schmitt trigger inputs for enhanced noise immunity. Operates from a minimum supply voltage of 2V up to a maximum of 5.5V. Maximum propagation delay time of 9.5 nanoseconds ensures fast switching performance.

Supports operating temperature range from -40°C to 125°C for industrial applications. 5-pin SOT-25 surface mount package optimizes board space usage. Outputs are of push-pull type capable of sourcing and sinking up to 8 mA.

Single logic element integration reduces component count in designs. Logic family AHC ensures compatibility with advanced high-speed CMOS logic circuits. Suitable for industrial, electronic design, and embedded system applications requiring reliable logic gating.
