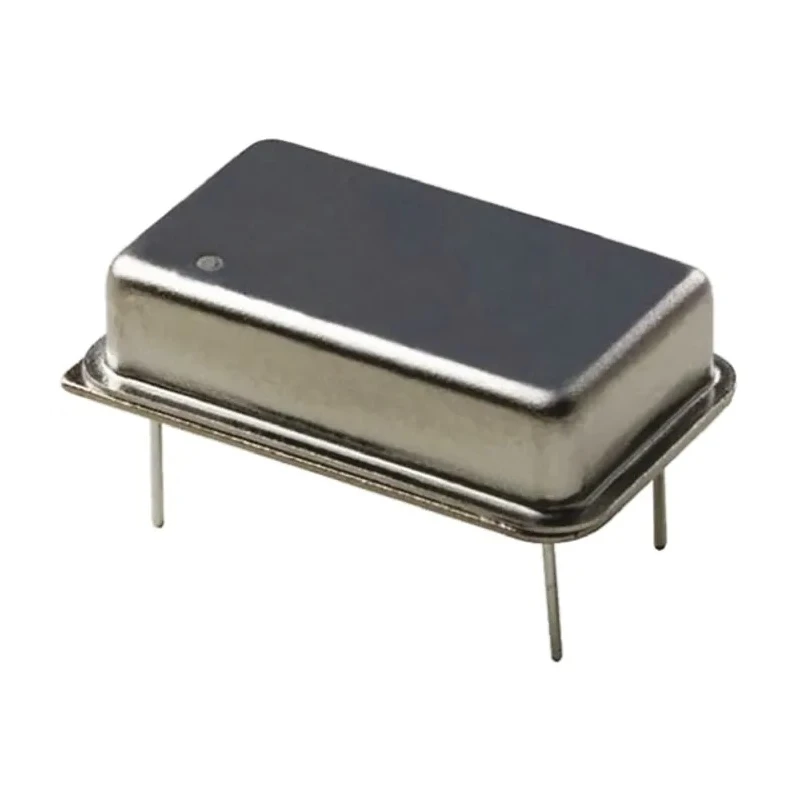

QANTEK 2.4576MHz XO Oscillator ±50 ppm HCMOS 14-Pin DIP-14 QX14T50B2.457600B50TT
Specifications
| Country of Origin | China |
|---|---|
| Brand | QANTEK |
| Height | 5.08mm |
| Length | 20.8mm |
| Model | QX14T50B2.457600B50TT |
| Packaging | Tube |
| Width | 13.2mm |
| Mount Type | Through Hole |
| Series | QX14 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 2.4576MHz |
| Package Type | DIP-14 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Load Capacitance | 50pF |
| Oscillator Type | XO |
| Output Level | HCMOS |
Key Features
- Industry-standard 14 pin Dual-in-Line (DIP-14) package for easy mounting.
- Outputs HCMOS logic level signals compatible with digital circuits.
- Operates over a temperature range from -40°C to 85°C.
- Maximum supply voltage of 5 V with through-hole mount type.
- Hermetically sealed for high reliability and low aging effects.
- Includes tristate function allowing enable/disable control.
- Load capacitance rated at 50 pF for stable oscillation.
- RoHS compliant, ensuring environmental safety standards.
Product Description
QANTEK QX14T50B2.457600B50TT is an XO oscillator designed for precision frequency generation with an output frequency of 2.4576MHz. Packaged in an industry-standard 14-pin Dual-in-Line (DIP-14) hermetically sealed package, it ensures high reliability and minimal aging, ideal for long-term industrial and electronic applications. The oscillator provides HCMOS output level signals compatible with a wide range of digital circuit inputs and operates on a maximum supply voltage of 5 volts.
This oscillator guarantees frequency stability of ±50 ppm, suitable for timing-critical systems requiring high precision. It features a tristate function that enables or disables the oscillator output, providing additional control versatility.
Operating temperature ranges from -40°C to 85°C make the QX14T50B2.457600B50TT ideal for use in harsh industrial environments, automotive, communications, and instrumentation applications. Its through-hole mount type and typical load capacitance of 50 pF allow straightforward integration on PCBs.
The compact dimensions (20.8 mm length, 13.2 mm width, 5.08 mm height) make it suitable for designs requiring small form factors. Industry-standard 14-pin DIL package for compatibility. Hermetically sealed for reliability and low aging.
Tristate enable/disable function. Precision frequency stability ±50 ppm. Wide operating temperature range (-40°C to 85°C). Operating voltage up to 5 V. Compatible with HCMOS output levels. RoHS certified for environmental compliance.
Compact size for space-saving designs. Load capacitance of 50pF for stable oscillation.
This crystal oscillator is well-suited for industrial, telecommunications, instrumentation, and embedded system applications, where precision and reliability are critical. It supports building robust clock generation and timing subsystems compliant with strict environmental regulations.
Explore EnvMart's Electronics Components category for more crystal Oscillators and electronic passive components to complement your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of the QX14T50B2.457600B50TT oscillator is 2.4576 MHz.
This oscillator operates over a temperature range from -40°C to 85°C.
The maximum supply voltage for this oscillator is 5V.
It provides HCMOS output level signals, which are compatible with a wide range of digital circuits.
The dimensions of the QX14T50B2.457600B50TT are 20.8 mm in length, 13.2 mm in width, and 5.08 mm in height.
Yes, the QX14T50B2.457600B50TT is RoHS compliant, ensuring it meets environmental safety standards.
The load capacitance rated for this oscillator is 50 pF, which is essential for stable oscillation.
Yes, it features a tristate function that allows for enable/disable control of the oscillator output.
This oscillator comes in a DIP-14 package type, which is an industry-standard 14-pin Dual-in-Line package.
The QX14T50B2.457600B50TT is packaged in a tube for easy handling and mounting.
This model belongs to the QX14 series of oscillators.
It is suitable for industrial, telecommunications, instrumentation, and embedded systems applications where precision and reliability are critical.
