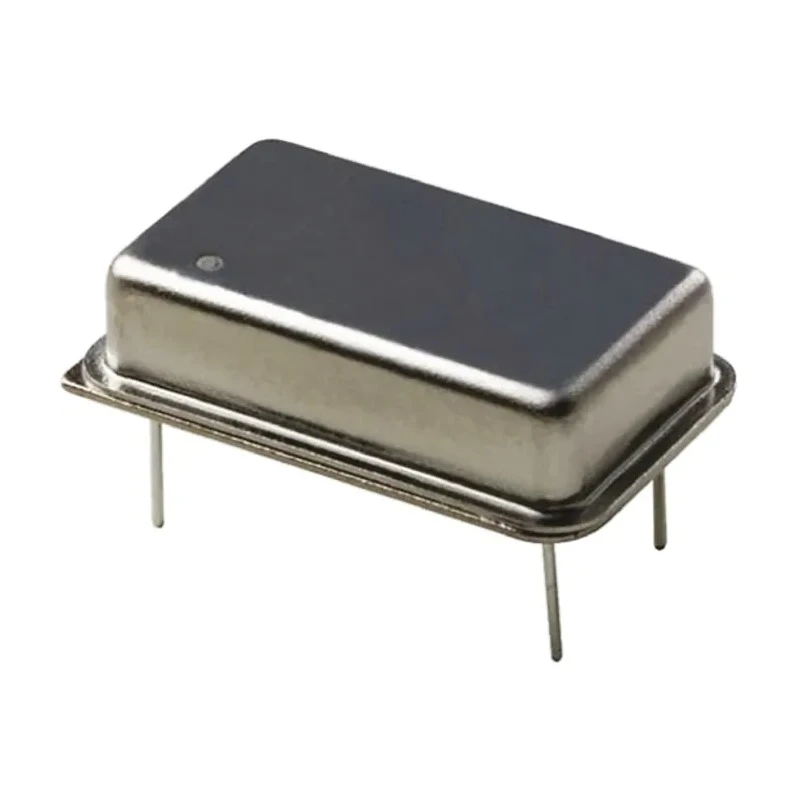

QANTEK 16.384MHz XO Oscillator ±50 ppm HCMOS 14-Pin DIP-14 QX14T50B16.38400B50TT
Specifications
| Country of Origin | China |
|---|---|
| Brand | QANTEK |
| Height | 5.08mm |
| Length | 20.8mm |
| Model | QX14T50B16.38400B50TT |
| Packaging | Tube |
| Width | 13.2mm |
| Mount Type | Through Hole |
| Series | QX14 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 16.384MHz |
| Package Type | DIP-14 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Load Capacitance | 50pF |
| Oscillator Type | XO |
| Output Level | HCMOS |
Key Features
- Industry-standard 14-pin Dual-in-Line package ensures compatibility.
- HCMOS output level offers high-speed digital signal performance.
- Hermetically sealed package provides reliability and low aging.
- Operating temperature range from -40°C to 85°C supports diverse conditions.
- Maximum supply voltage of 5V is suitable for many circuits.
- Tristate enable/disable function offers flexible control.
- Load capacitance of 50pF maintains signal integrity.
- Through-hole mount type facilitates easy PCB assembly.
Product Description
QANTEK QX14T50B16.38400B50TT is a 16.384MHz XO Oscillator designed with HCMOS output and a stable frequency accuracy of ±50 ppm. Packaged in a 14-pin Dual-in-Line (DIP-14) hermetically sealed case, it ensures low aging and enhanced reliability, making it ideal for precision timing and frequency control in electronic applications.
The oscillator supports a load capacitance of 50pF and operates at a maximum supply voltage of 5 volts. It functions within an operating temperature range of -40°C to 85°C, which suits industrial, commercial, and laboratory equipment operating under varying environmental conditions.
Its through-hole mount type facilitates straightforward incorporation into printed circuit boards. The tristate enable/disable feature offers flexible control of the oscillator output, adapting to diverse circuit requirements.
This product meets RoHS compliance, reflecting commitment to environmental standards. Manufactured in China, it is part of QANTEK’s QX14 series, known for quality and consistency in frequency components.
Industry-standard 14-pin DIL package ensures broad compatibility. HCMOS output provides high-speed digital signal quality. Hermetically sealed for enhanced durability and aging resistance. Wide operating temperature range (-40°C to 85°C) supports varied applications.
Tristate function for controlled oscillator enable/disable. Load capacitance rating of 50pF maintains signal integrity. Through-hole mount suited for PCB assembly. RoHS compliant and environmentally friendly. Manufactured in China under strict quality guidelines.
This XO oscillator is ideal for use in industrial, laboratory, and electronic manufacturing applications where precision frequency generation is critical. Browse EnvMart’s Electronics Components category for more QANTEK crystal Oscillators and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The QX14T50B16.38400B50TT oscillator has an output frequency of 16.384MHz.
This oscillator operates at a maximum supply voltage of 5V.
The load capacitance for this oscillator is rated at 50pF, which helps maintain signal integrity.
It operates within a temperature range of -40°C to 85°C, suitable for various environmental conditions.
This model features an HCMOS output level, which offers high-speed digital signal performance.
The oscillator is packaged in a 14-pin Dual-in-Line (DIP-14) hermetically sealed case.
It features a through-hole mount type, facilitating easy assembly onto printed circuit boards.
Yes, the QX14T50B16.38400B50TT oscillator meets RoHS compliance standards.
The dimensions are 20.8mm in length, 13.2mm in width, and 5.08mm in height.
This oscillator belongs to the QX14 series, known for its quality and consistency in frequency components.
The tristate enable/disable function allows for flexible control of the oscillator output, adapting to various circuit requirements.
The QX14T50B16.38400B50TT oscillator is manufactured in China.
