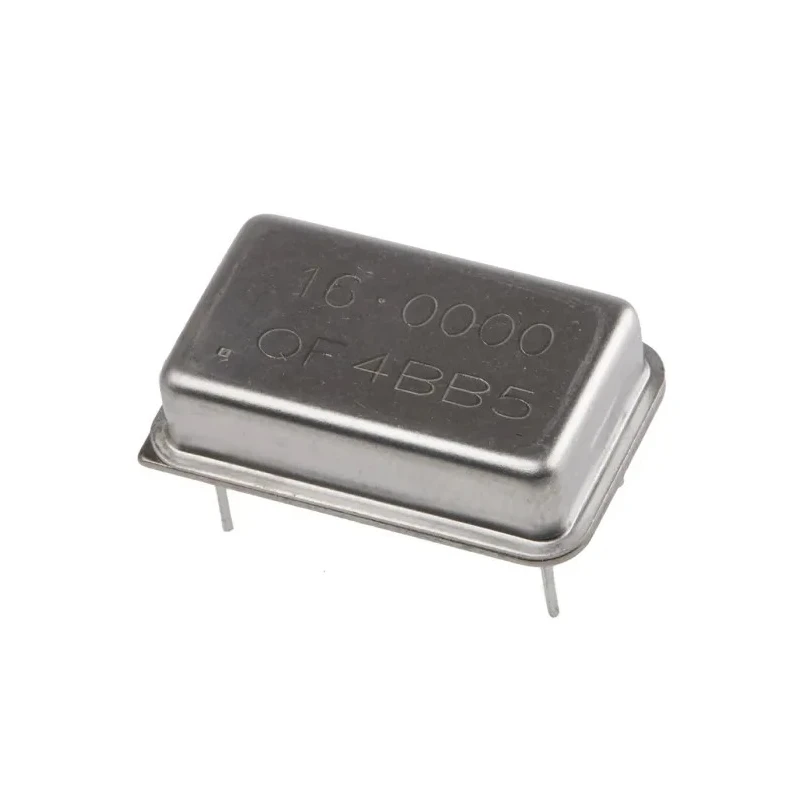

QANTEK 16MHz XO Oscillator ±50 ppm HCMOS 14-Pin DIP-14 QX14T50B16.00000B50TT

QANTEK QX14T50B16.00000B50TT is a precision 16MHz XO oscillator designed with HCMOS output for high-speed digital applications. The device is housed in a durable 14-pin DIP-14 package which is industry standard for easy integration on through-hole PCBs.

This oscillator features a tight frequency stability of ±50 ppm, making it suitable for timing-critical and communications equipment. Its hermetically sealed package reduces aging effects and enhances operational reliability over time.

Operating at a maximum supply voltage of 5V, it supports industrial temperature ranges from -40°C up to 85°C, enabling use in harsh environments. The device output level is compatible with HCMOS logic families, ensuring noise immunity and fast switching speeds.

The oscillator includes a tristate function, allowing users to effectively enable or disable the output, which is valuable for power management and signal control.

Measuring 20.8mm in length, 13.2mm in width, and 5.08mm in height, it fits standard dual-in-line PCB footprints. The 50pF load capacitance supports stable waveform outputs essential for precision timing systems.

Ideal for industrial, communication, instrumentation, and consumer electronic applications where accurate clock generation is necessary. The oscillator uses HCMOS output level for compatibility with modern digital circuits.

It features a robust, hermetically sealed package ensuring reliability and low aging. Designed for through-hole mounting with a standard 14-pin dual-in-line package. Supports a maximum supply voltage of 5V and operates between -40°C to 85°C.

Provides a load capacitance of 50pF, supporting stable oscillation output. Includes tristate function enabling enable/disable control of the output. The device complies with RoHS standards for environmental compliance. Compact dimensions of 20.8mm length, 13.2mm width, and 5.08mm height facilitate versatile PCB integration.

Manufactured in China, suitable for industrial and electronic component applications. Explore the range of crystal Oscillators and electronic components on EnvMart to find compatible products and accessories.
