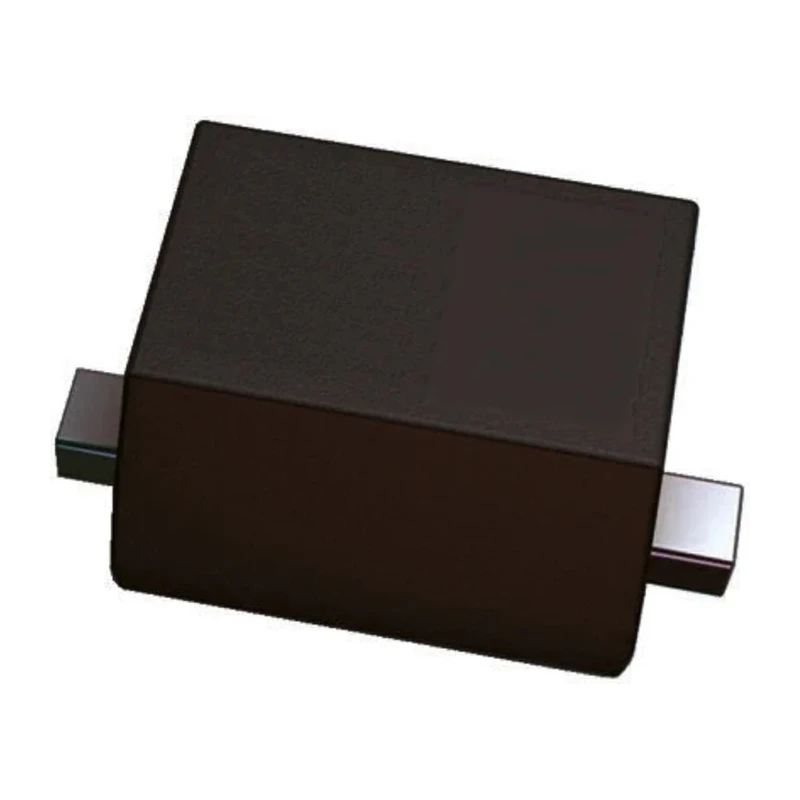

onsemi Schottky Diode 20 V 500 mA Surface Mount SOD-523 Package NSR0520V2T1G

onsemi NSR0520V2T1G Schottky Diode is a surface mount 2-pin diode supplied in a SOD-523 package designed for applications requiring efficient low voltage, high-frequency rectification. This device uses a Schottky barrier metal to achieve an optimized balance of forward voltage drop and reverse current.

It is rated for a continuous forward current of 500 mA and a peak repetitive reverse voltage of 20 V, making it suitable for a variety of power electronics and protection circuits. The diode supports peak non-repetitive forward surge currents up to 2 A and operates effectively within the temperature range of -55°C to 125°C.

The diode's compact and lightweight epoxy moulded package at dimensions 1.3 mm by 0.9 mm by 0.7 mm facilitates automated board assembly and efficient use of PCB space. It is lead-free and RoHS compliant, supporting environmentally conscious manufacturing.

Equipped with AEC-Q101 automotive certification, this diode excels in automotive applications requiring stringent quality standards. Its fast peak reverse recovery time of 12 ns ensures high-speed switching performance.

Applications include low voltage rectification, freewheeling, polarity protection, and power conversion in industrial, automotive, consumer electronics, and telecommunication equipment. The diode is optimized for compact, high-frequency, and surface mount designs where weight and volume are critical.

This diode utilizes the Schottky barrier principle providing excellent forward voltage drop to reverse current characteristics. It features a maximum continuous forward current of 500 mA. The package is compact and lightweight, making it ideal for automated assembly in space-sensitive applications.

Operational temperature range extends from -55°C to 125°C ensuring reliability in harsh conditions. Peak repetitive reverse voltage is rated at 20 V with a low peak reverse current of 30 μA. Complies with AEC-Q101 automotive standard for enhanced quality and reliability.

The diode is suitable for freewheeling and polarity protection in surface mount applications. Epoxy moulded case provides stress protection and robustness in industrial environments. Lead-free and RoHS compliant for environmentally friendly use.

Compact dimensions of 1.3 mm length, 0.9 mm width, and 0.7 mm height enable efficient PCB usage. Explore our wide range of Schottky Diodes at EnvMart for industrial, automotive, and consumer electronics applications.
