STMicroelectronics Operational Amplifier 1.3 MHz Gain Bandwidth Product, 14-Pin TSSOP, 2.7V-6V LMV324IPT

STMicroelectronics LMV324IPT is a quad-channel operational amplifier integrated circuit housed in a 14-pin TSSOP surface-mount package designed for applications requiring low power consumption and rail-to-rail input/output capability. It offers a gain bandwidth product of 1.3 MHz, making it ideal for precision analog circuits in industrial, automotive, and portable electronic devices.

The device operates from a minimum supply voltage of 2.7 V up to a maximum of 6 V, facilitating use in battery-operated and low-voltage systems. Its low quiescent current of approximately 145 μA per amplifier enables extended battery life in portable applications.

The LMV324IPT integrates four operational amplifiers with rail-to-rail input and output stages, ensuring maximum dynamic range in signal processing. The robust output current of up to 46 mA supports a wide variety of loads and interfacing requirements.

With an input offset voltage of 6 mV and a low input bias current of 95 nA, this amplifier supports accurate signal conditioning tasks. The slew rate of 0.45 V/μs enables handling moderate frequency signals effectively, while an ESD tolerance of 2 kV ensures reliability in high static environments.

Operating efficiently across a broad temperature range from -40°C to 125°C, the LMV324IPT meets automotive AEC-Q100 quality standards, lending confidence in critical automotive and industrial applications.

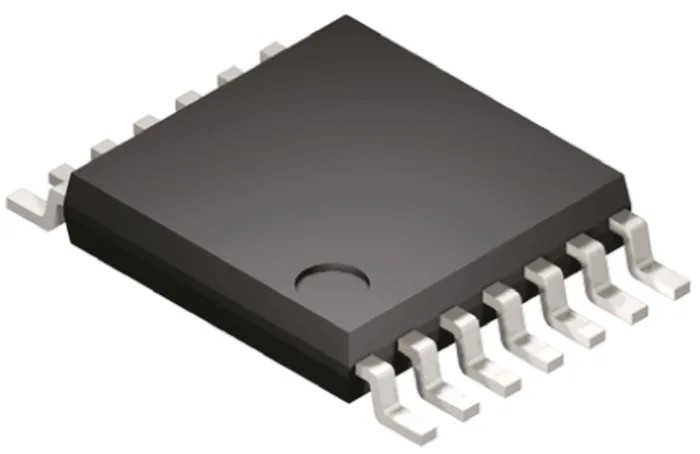

Additional features include a compact TSSOP 14-pin surface mount package measuring 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height, making it suitable for space-constrained electronic circuit boards.

This operational amplifier series, including LMV321, LMV324, and LMV358, is widely used for industrial controls, instrumentation, automotive sensor interfaces, and portable and battery-operated devices requiring low noise and low power consumption.

Operates on a supply voltage ranging from 2.7 V to 6 V for versatile power configurations. Offers low supply current of 145 μA, suitable for battery-powered and portable equipment. Provides rail-to-rail input and output for maximum signal swing.

Contains 4 amplifier channels in a compact 14-pin TSSOP package. High output current capability of 46 mA for driving loads efficiently. Designed to meet automotive standard AEC-Q100 for enhanced reliability. Wide operating temperature range from -40°C to 125°C for harsh environments.

Input offset voltage of 6 mV and input bias current of 95 nA support precision operations. Slew rate of 0.45 V/μs to manage signal speed effectively. Electrostatic discharge (ESD) tolerance up to 2 kV for robust device protection.
