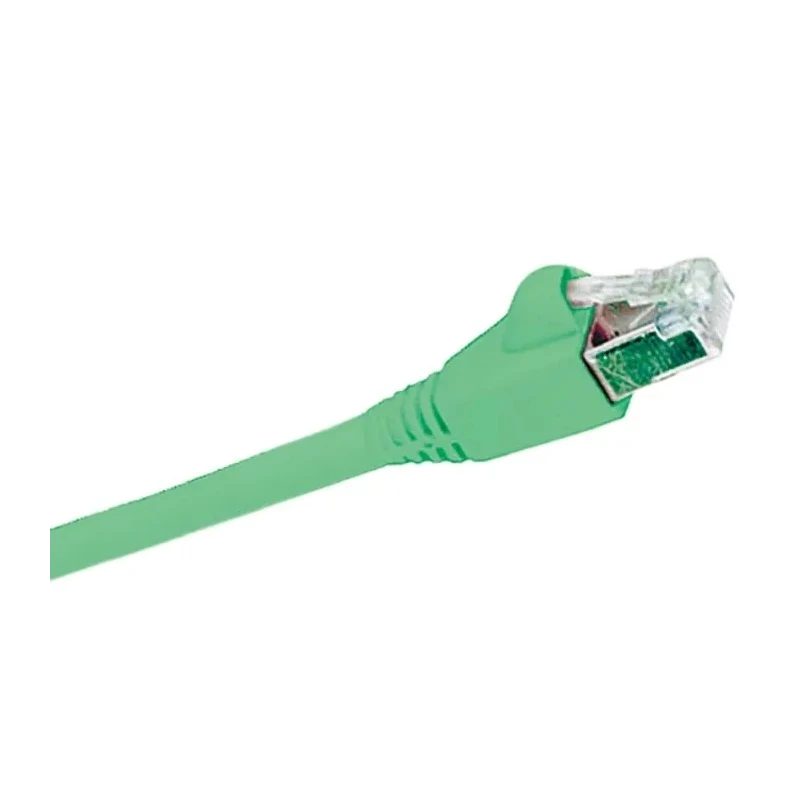

Molex CES PCD Cat6 Shielded Ethernet Cable, 10 m, Green Low Smoke Zero Halogen

Free Delivery in India | Lowest Global Shipping Charges

Molex CES PCD Cat6 Shielded Ethernet Cable, 10 m, Green Low Smoke Zero Halogen

Name: Molex CES PCD Cat6 Shielded Ethernet Cable, 10 m, Green Low Smoke Zero Halogen
Brand: Molex CES
SKU: 371053
Price: 48 USD
Availability: InStock



Category Ethernet Cable Brand Molex CES Condition New

Specifications

Country of Origin	India
Voltage	150V
Brand	Molex CES
Model	Cat6
Cable Length	10m
Series	PCD
Outside diameter	6.3mm
Maximum Operating Temperature	60°C
Number Of Cores	4
Conductor Material	Wire, 26 AWG Stranded Copper Wire
Minimum Operating Temperature	-20°C
Jacket Material	Low Smoke Zero Halogen
Shield Type	Shielded
Jacket Colour	Green
Conductor Type	Stranded
LAN Category	Cat6
Terminated/Unterminated	Terminated
Molex Premise Networks Green 10m Cat6 Ethernet Cable AssemblyBrand	Molex Premise Networks

Key Features

This Cat6 cable is shielded for enhanced noise resistance.
It features a low smoke zero halogen (LS0H) green jacket for safety and durability.
Cable length is 10 meters with an outside diameter of 6.3 mm.
Constructed with 26 AWG stranded copper wire conductors for flexibility and conductivity.
Terminated with an RJ45 plug with anti-snag slip-on strain relief boot.
Supports EIA 568A and 568B wiring standards.
Operates at voltages up to 150 V and temperatures from -20°C to 60°C.
Complies with multiple standards including UL-1863, ETL, TIA-568-C.2 Cat 6, ISO/IEC 11801, RoHS, and CSA C2.2.

Product Description

Molex CES PCD-04019-0J Cat6 Shielded Ethernet Cable, 10 m length, features a green low smoke zero halogen (LS0H) jacket designed for secure and safe industrial and commercial network installations.

This Ethernet cable is constructed with four pairs of 26 AWG stranded copper wires, shielded with an aluminium/polyester foil to provide high performance and reduced interference. The cable has a nominal outside diameter of 6.3 mm, balancing durability and flexibility for various installation demands.

The cable is pre-terminated with RJ45 connectors equipped with anti-snag slip-on strain relief boots, ensuring robust physical connection and ease of use. Compatible with wiring standards EIA 568A and 568B, it supports Cat6 LAN category for high-speed data transmission.

Operating voltage is rated at 150 V, with an operating temperature range from -20°C to 60°C, making it suitable for many electrical and networking environments. The jacket material ensures compliance with fire behaviour standards IEC 60754-1, IEC 60754-2, IEC 60332-1, and IEC 61034-2, providing enhanced safety in confined spaces.

This Ethernet Cable conforms to international standards including UL-1863, ETL, TIA-568-C.2 Cat 6, ISO/IEC 11801:2002/Amd 2:2010 Cat 6, RoHS, and CSA C2.2, certifying quality and environmental compliance.

It is widely used in commercial networking, industrial automation, and data communications applications that require reliable, shielded Cat6 cabling with safety features like LS0H jackets.

This Cat6 cable is shielded for enhanced noise resistance. It features a low smoke zero halogen (LS0H) green jacket for safety and durability. Cable length is 10 meters with an outside diameter of 6.3 mm. Constructed with 26 AWG stranded copper wire conductors for flexibility and conductivity.

Terminated with an RJ45 plug with anti-snag slip-on strain relief boot. Supports EIA 568A and 568B wiring standards. Operates at voltages up to 150 V and temperatures from -20°C to 60°C. Complies with multiple standards including UL-1863, ETL, TIA-568-C.2 Cat 6, ISO/IEC 11801, RoHS, and CSA C2.2.

Ideal for commercial networking, data transfer, and automation applications requiring shielded Cat6 cabling. Explore our extensive selection of networking cables and related electrical products at EnvMart for trusted quality and performance.
