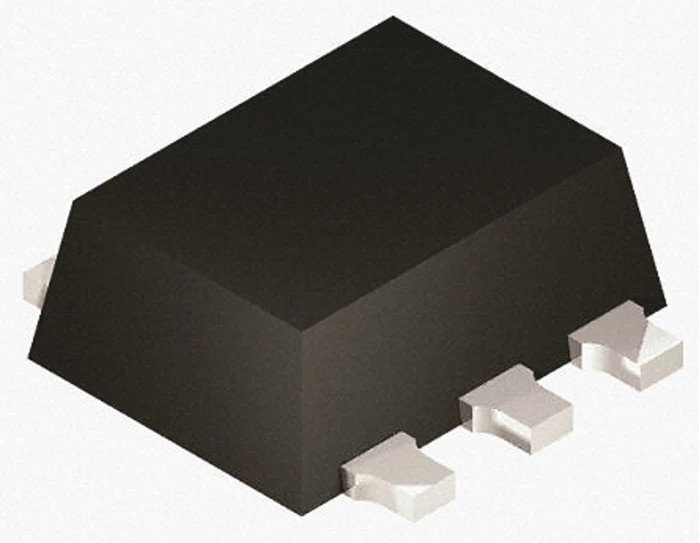

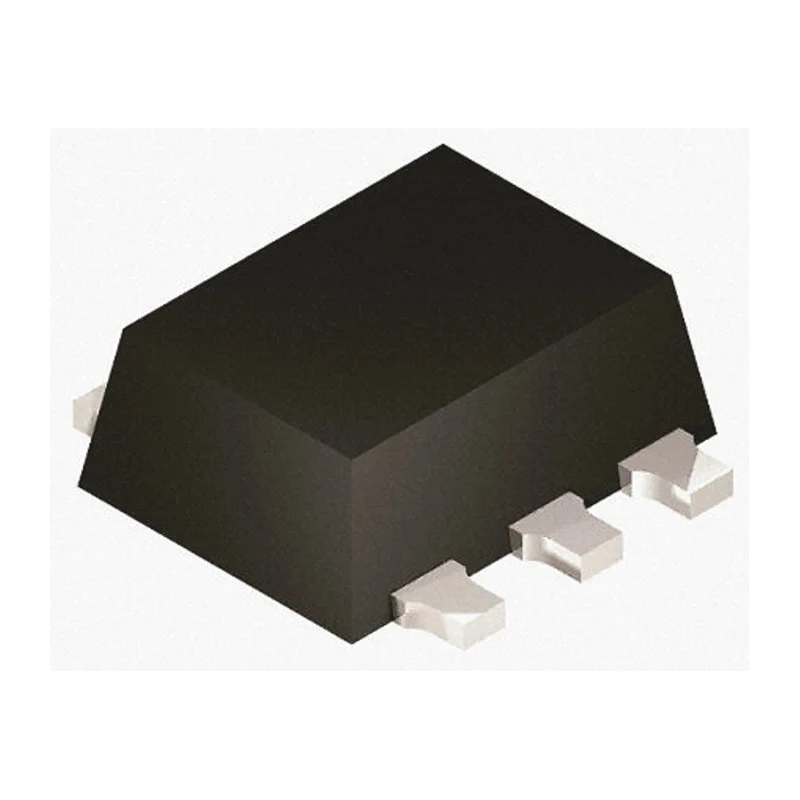

STMicroelectronics 3-Element Bi-Directional ESD Protection Array, 6-Pin SOT-666 ESDAULC6-3BP6

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 3-Element Bi-Directional ESD Protection Array, 6-Pin SOT-666 ESDAULC6-3BP6

Name: STMicroelectronics 3-Element Bi-Directional ESD Protection Array, 6-Pin SOT-666 ESDAULC6-3BP6
Brand: STMicroelectronics
SKU: 287720
Price: 0.29 USD
Availability: InStock



Category ESD Protection Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	0.6mm
Length	1.7mm
Model	ESDAULC6-3BP6
Width	1.7mm
Mount Type	Surface
Series	ESDAULC6
Maximum Operating Temperature	150°C
Package Type	SOT-666
Minimum Operating Temperature	-55°C
Pin Count	6
Number of Elements per Chip	3
Diode Configuration	Complex Array
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	6V
Maximum Reverse Stand-off Voltage Vwm	5V
Maximum Peak Pulse Current Ippm	6A
Maximum Reverse Leakage Current	500nA

Key Features

Bi-directional diode configuration protects against voltage spikes in both polarities.
Surface mount package type SOT-666 enables compact PCB design.
Rated for a maximum peak pulse current of 6 amperes ensuring reliable transient voltage suppression.
Wide operating temperature range from -55°C to 150°C for diverse applications.
Minimal dimensions of 1.7mm length and width with 0.6mm height allow for space-saving integration.
Complex array format with 3 elements per chip optimizes protection efficiency.
Maximum reverse stand-off voltage of 5 volts prevents damage during normal operation.
Extremely low reverse leakage current of 500nA reduces power loss.

Product Description

STMicroelectronics ESDAULC6-3BP6 is a 3-element bi-directional ESD protection array designed to safeguard sensitive electronic components from damaging electrostatic discharges. Housed in a compact 6-pin SOT-666 surface-mount package, this device is ideal for use in electronic circuits where space is limited and reliable transient voltage suppression is critical.

The device features a complex diode array with three individual elements per chip, providing dependable protection for multiple signal lines simultaneously. Its bi-directional operation allows it to clamp voltage spikes regardless of polarity, ensuring versatile application compatibility.

With a maximum reverse stand-off voltage of 5 volts and a minimum breakdown voltage of 6 volts, the ESDAULC6-3BP6 effectively shields circuits from voltage surges without interrupting normal circuit function. The robust maximum peak pulse current rating of 6 amperes further guarantees resilience under transient events.

Designed to perform in harsh environments, the device operates reliably across a wide temperature range from -55°C to 150°C, making it suitable for industrial, automotive (non-certified), telecommunications, and consumer electronics applications. The minimal leakage current of 500nA minimizes power consumption during standby conditions.

The device complies with standard surface mount packaging conventions but does not carry automotive standards or additional certifications, aligning with general industrial usage requirements.

Bi-directional diode configuration for comprehensive ESD protection. Compact 6-pin SOT-666 surface mount package. Supports transient peak pulse currents up to 6A. Wide operating temperature range: -55°C to 150°C. Three elements per chip enhance multi-line protection.

Low leakage current of 500nA reduces power loss. Ideal for industrial, telecom, and consumer electronics applications.

This ESD protection array is part of the ESDAULC6 series by STMicroelectronics, recognized for reliable transient voltage suppression in a variety of electronic designs. Explore EnvMart's Electronics & Electricals category for complementary semiconductor components and TVS diode solutions to enhance your projects.

Explore more products in our ESD Protection Diode category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum peak pulse current rating of the ESDAULC6-3BP6 is 6 amperes, ensuring reliable transient voltage suppression during electrical surges.

This unit operates reliably across a wide temperature range from -55°C to 150°C, making it suitable for various applications in harsh environments.

The ESDAULC6-3BP6 is housed in a compact 6-pin SOT-666 surface mount package, which facilitates space-saving integration on PCBs.

This model features a complex diode array with three individual elements per chip, providing enhanced protection for multiple signal lines simultaneously.

The maximum reverse stand-off voltage for the ESDAULC6-3BP6 is 5 volts, which prevents damage during normal operation.

The minimum breakdown voltage of this model is 6 volts, ensuring effective clamping of voltage spikes.

The maximum reverse leakage current for the ESDAULC6-3BP6 is 500nA, which helps reduce power loss during standby conditions.

This ESD protection array is suitable for use in industrial, automotive (non-certified), telecommunications, and consumer electronics applications.

It utilizes a bi-directional diode configuration, allowing it to clamp voltage spikes regardless of polarity for comprehensive protection.

The dimensions of this model are 1.7mm in length and width, with a height of 0.6mm, enabling compact design.

The device complies with standard surface mount packaging conventions but does not carry automotive standards or additional certifications, aligning with general industrial usage requirements.

The complex array format with three elements per chip optimizes protection efficiency, allowing for simultaneous protection of multiple signal lines.
