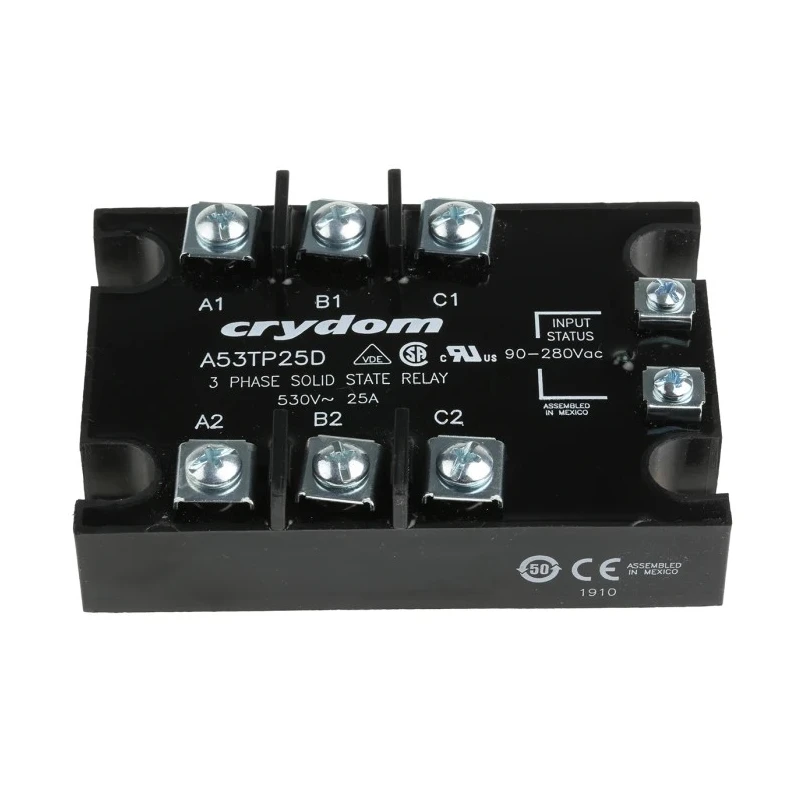

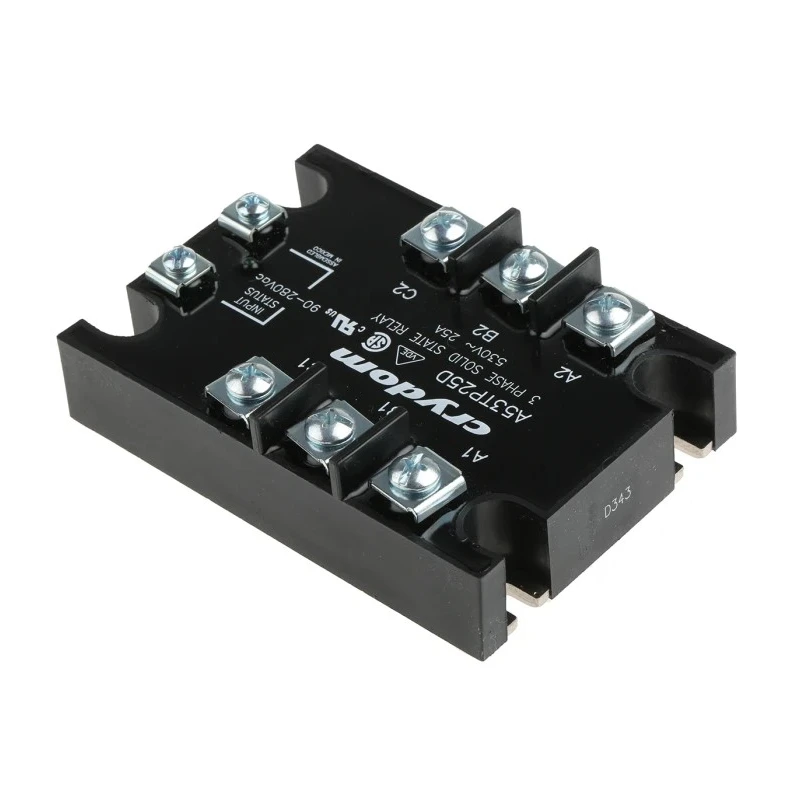

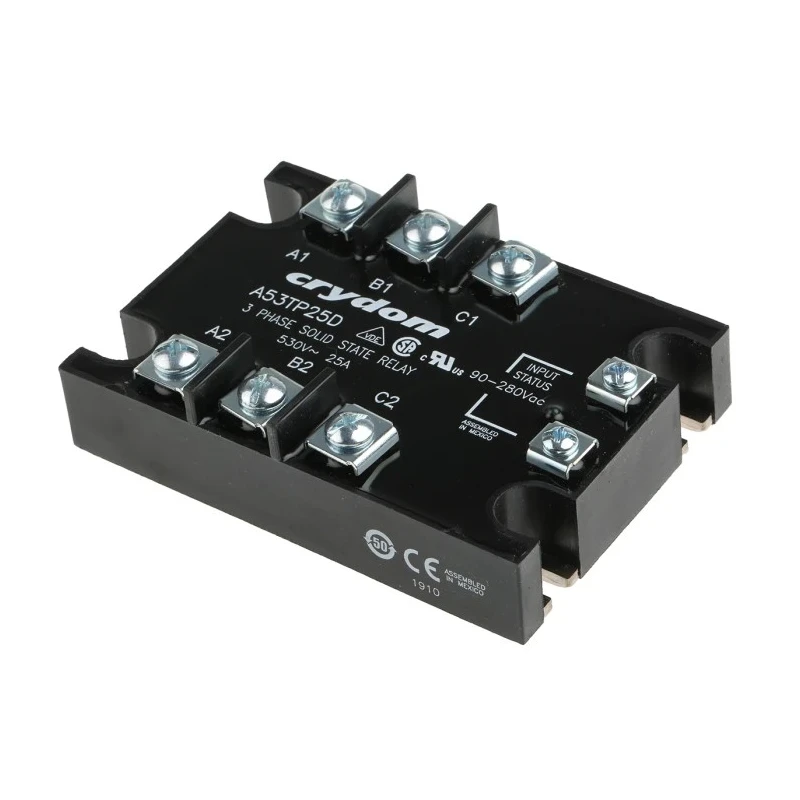

Crydom 53TP Series Solid State Relay, Panel Mount, 25 A Load Current, 530 Vrms Load Voltage, 280 Vrms Control A53TP25D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 30mm |
| Length | 103.8mm |
| Model | A53TP25D |
| IP Rating | IP20 |
| Width | 73.4mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | 53TP |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 25A |
| Standards/Approvals | RoHS |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 90V ac |
| Off State Leakage Current | 10mArms |
Key Features
- Supports maximum load current of 25 A suitable for heavy-duty industrial applications.
- Enables zero voltage switching to reduce electrical noise and inrush currents.
- Panel mount type with compact dimensions of 103.8mm length and 73.4mm width to save space.
- Screw terminal type provides secure and reliable wiring connections.
- Operates reliably within a wide temperature range from -40°C to 80°C for harsh environments.
- Constructed with SCR output type for robust three-phase load management.
- Equipped with built-in transient voltage protection to safeguard against power surges.
- LED indicator simplifies input status monitoring during operation.
Product Description
Crydom A53TP25D is a 53TP Series solid state relay designed for industrial automation, offering a panel mount form factor for convenient integration in control panels. It supports a maximum load current of 25 A with a load voltage up to 530 Vrms, making it ideal for heavy-duty electrical applications requiring reliable switching of three-phase motors and heating elements. The relay uses an SCR output and features zero voltage switching to minimize electrical noise and limit inrush currents, enhancing circuit longevity.

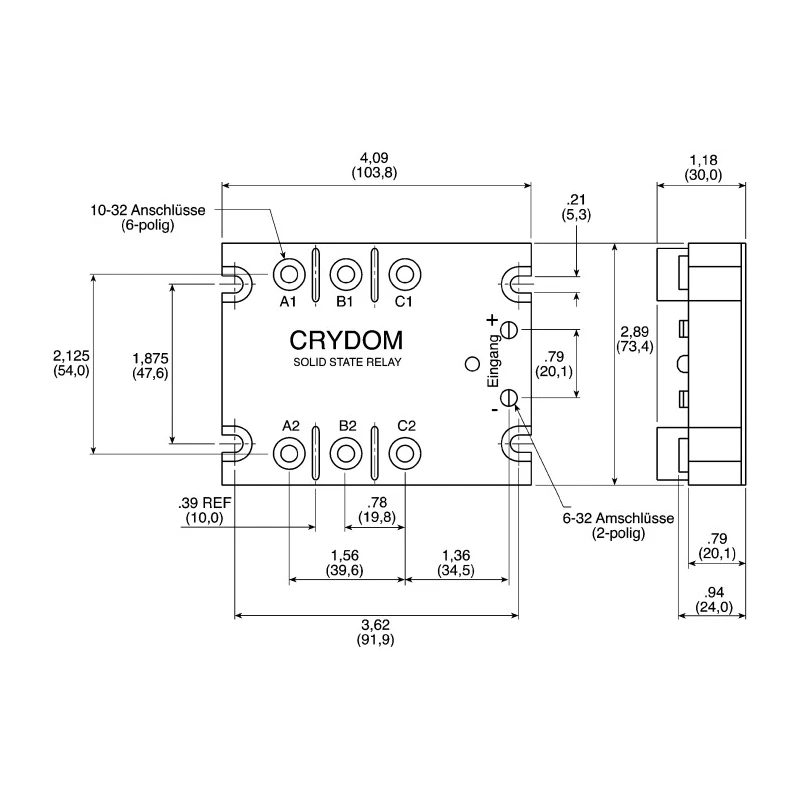

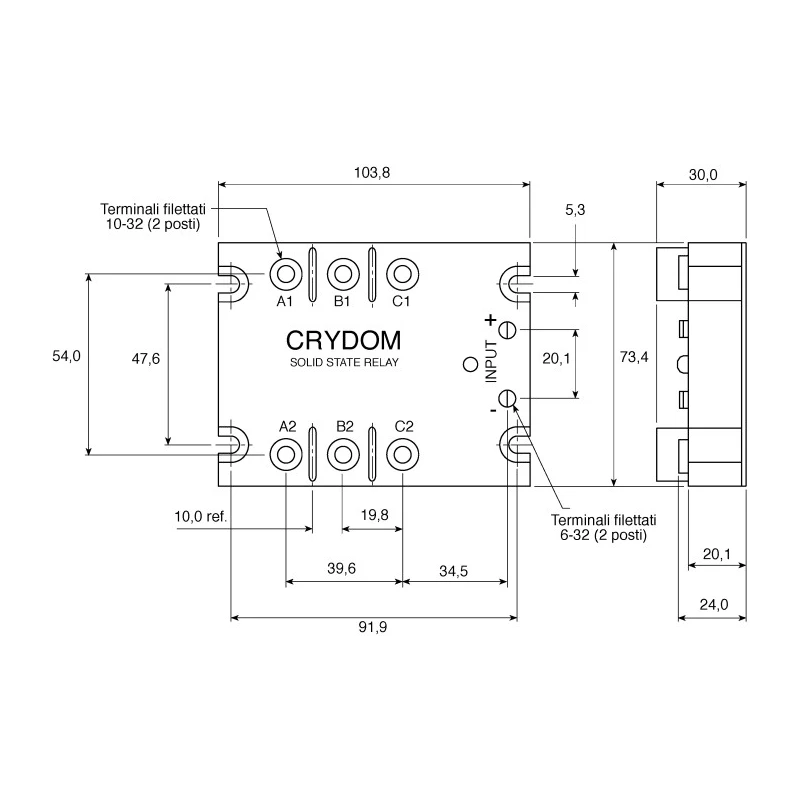

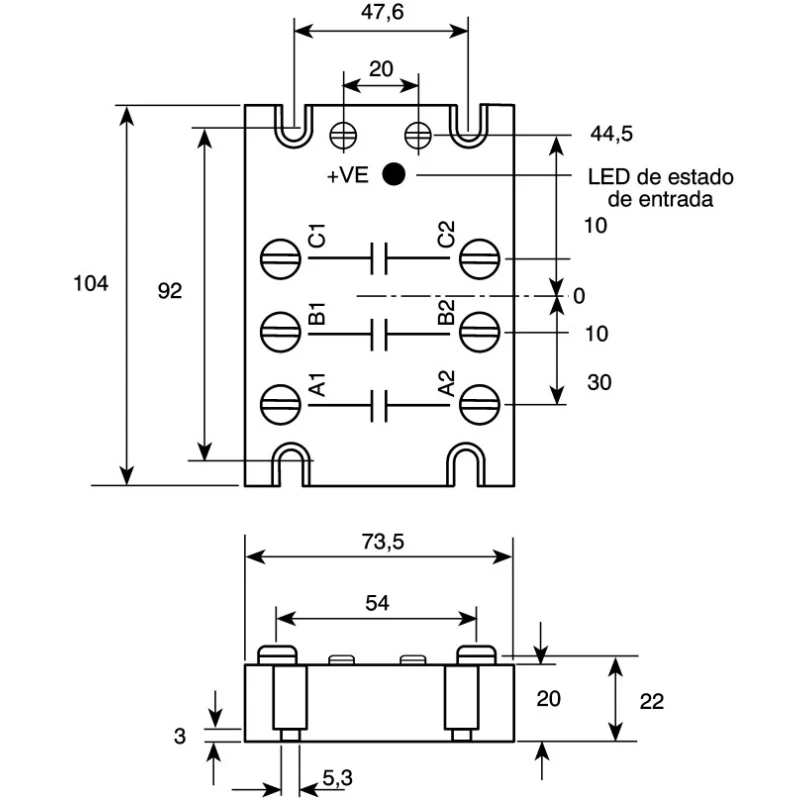

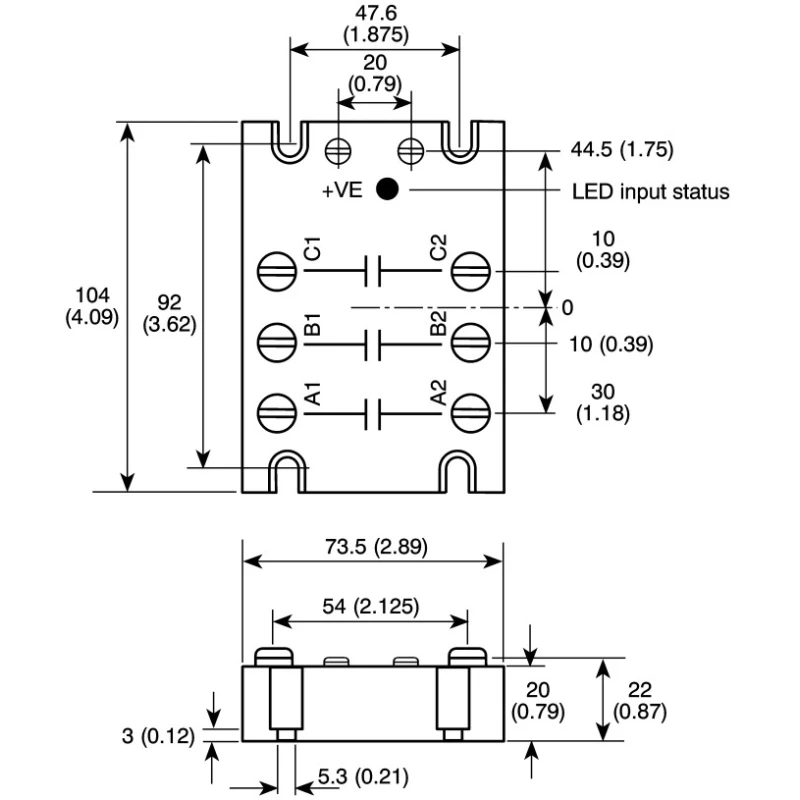

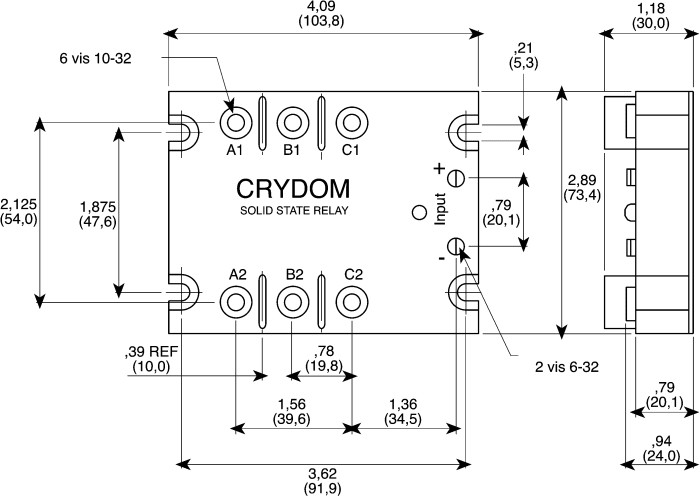

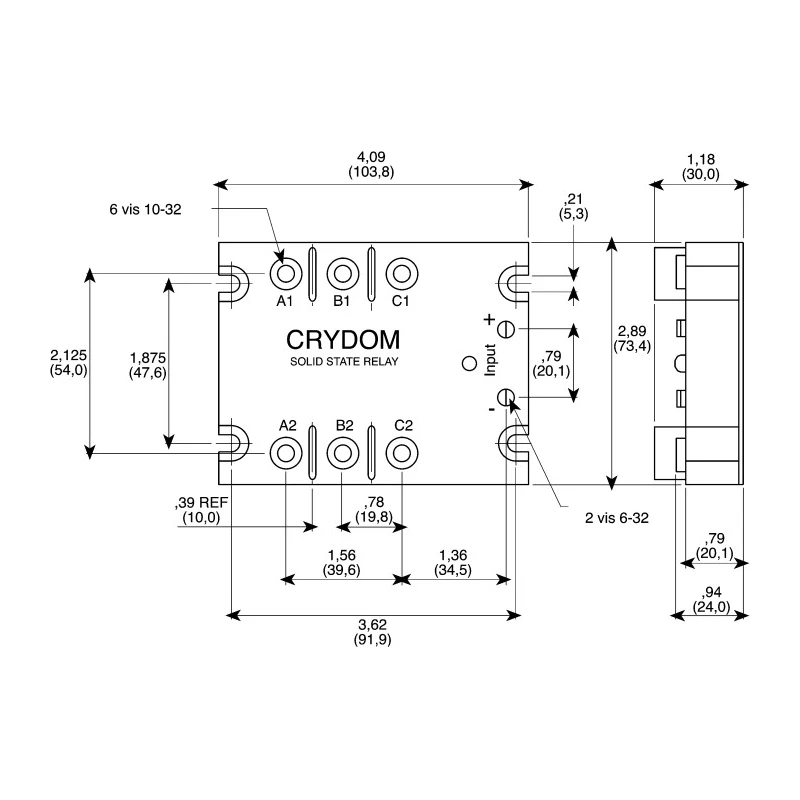

Its wide operating temperature range from -40°C to 80°C allows deployment in harsh industrial environments. The relay incorporates screw terminal connections for secure wiring and built-in transient voltage protection to prevent damage from power spikes. An LED indicator helps quickly verify input signal status, reducing troubleshooting time. Compact dimensions of 103.8 mm (L) x 73.4 mm (W) x 30 mm (H) enable efficient panel space utilization.
The Crydom 53TP Series solid state relay is RoHS compliant, ensuring it meets environmental regulations. It is suitable for controlling heating, lighting, and motion control systems within industrial, manufacturing, HVAC, and automation contexts where silent and robust switching is required. This unit is recognized with UL, C-UL, and VDE approvals for quality assurance and safety standards.
Maximum load current of 25 A for heavy-duty industrial loads. Zero voltage switching to minimize noise and inrush current. Compact panel mount design saves space. Screw terminals ensure reliable electrical connections. Wide operating temperature from -40°C to 80°C suits varied environments.
SCR output type for robust three-phase control. Built-in transient voltage protection safeguards equipment. LED input status indicator for operational visibility. RoHS compliant for environmental safety. Standards include UL, C-UL, and VDE approvals.
Explore the Crydom range of Solid State Relays and related control components at EnvMart for reliable automation solutions tailored to industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Crydom A53TP25D supports a maximum load current of 25 A, making it suitable for heavy-duty industrial applications.
This model operates with a load voltage of up to 530 Vrms, allowing it to handle substantial electrical loads.
It features an SCR output type, which is designed for robust three-phase load management.
The relay operates reliably within a wide temperature range from -40°C to 80°C, suitable for harsh environments.
This unit is designed for panel mounting, allowing for convenient integration into control panels.
The A53TP25D utilizes screw terminals for secure and reliable wiring connections.
Yes, it is equipped with built-in transient voltage protection to safeguard against power surges.
The dimensions of this model are 103.8 mm in length, 73.4 mm in width, and 30 mm in height.
The minimum control voltage required for this relay is 90V AC.
It is recognized with UL, C-UL, and VDE approvals, ensuring compliance with quality assurance and safety standards.
The IP rating for this relay is IP20, indicating its suitability for indoor use without exposure to water or dust ingress.
It features zero voltage switching, which minimizes electrical noise and limits inrush currents during operation.
