onsemi Isolated Dual N-Channel Power MOSFET 60 V 300 mA Enhancement Mode 6-Pin SC-88 NTJD5121NT1G

onsemi NTJD5121NT1G is a dual N-channel isolated power MOSFET designed specifically for efficient and reliable switching in electronic circuits. It has a maximum continuous drain current of 300 mA and a maximum drain-source voltage rating of 60 V, making it suitable for low power industrial, automotive, and consumer electronic applications.

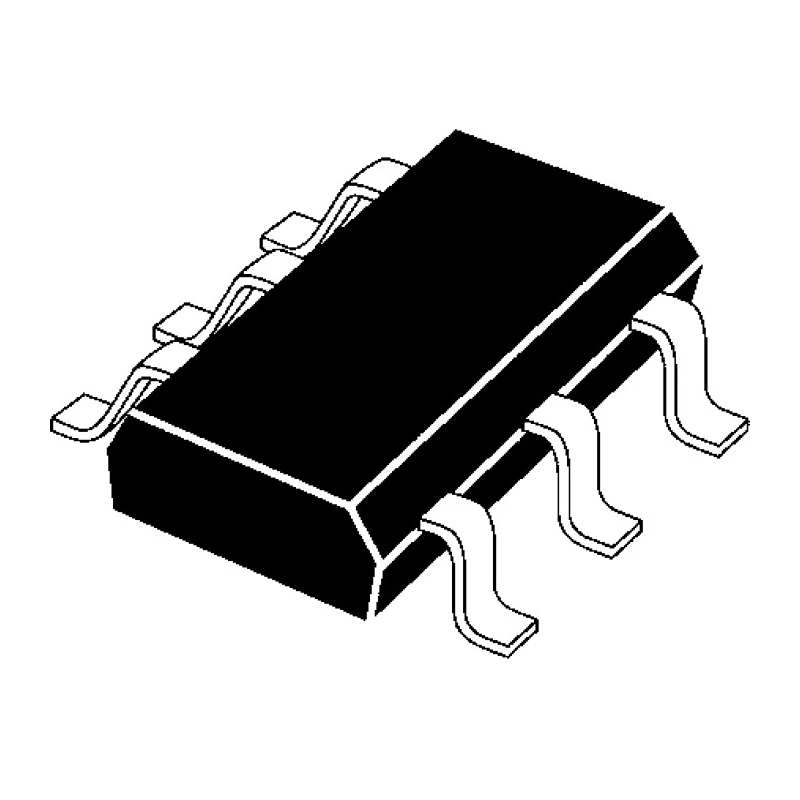

This enhancement mode MOSFET comes in a compact 6-pin SC-88 surface mount package, measuring just 2.2 mm in length, 1.35 mm in width, and 1 mm in height. It supports high operating temperatures from -55°C up to +150°C, ensuring durability under harsh environmental conditions.

The device features a low typical gate charge of 0.9 nC at Vgs, facilitating efficient switching and reducing gate drive losses. The maximum power dissipation is 266 mW, which suits usage in compact and energy-efficient electronic systems.

It is compliant with the automotive AEC-Q101 standard, guaranteeing the robustness needed for automotive electronics. The transistor configuration is isolated dual N-channel, incorporating two elements per chip to optimize space and functionality in design layouts.

The MOSFET offers a gate-source voltage range of ±20 V and a forward voltage of 0.8 V, providing robust and predictable switching characteristics. Its surface mount design enables easy integration into PCBs using modern assembly techniques.

Enhancement mode dual N-channel MOSFET for controlled switching. 300 mA continuous drain current and 60 V drain-source voltage rating. Compact 6-pin SC-88 surface mount package. Automotive standard compliant for high reliability.

Wide operating temperature range from -55°C to +150°C. Low typical gate charge for efficient switching. Maximum power dissipation of 266 mW for low power applications. Isolated transistor configuration with two elements per chip.

Robust gate-source voltage and forward voltage characteristics. Ideal for industrial, automotive, and consumer electronic sectors.

This NTJD5121NT1G Power MOSFET by onsemi is an excellent choice for designers needing a reliable, high-performance MOSFET transistor with compact sizing and automotive-grade quality. For more options and detailed electronic components, explore the Electronics & Electricals section on EnvMart for quality power semiconductor devices and related components.
