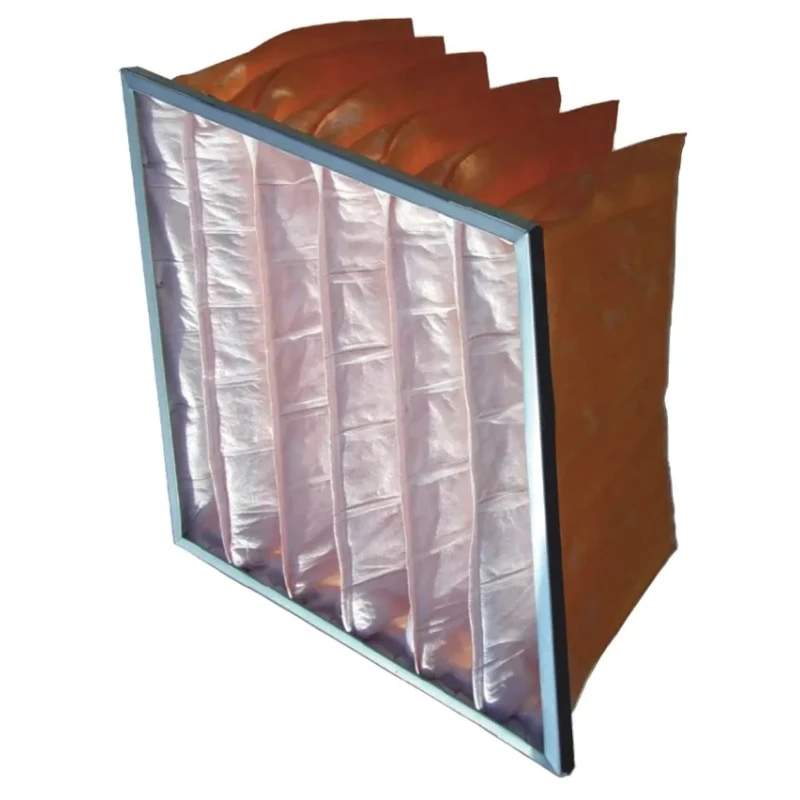

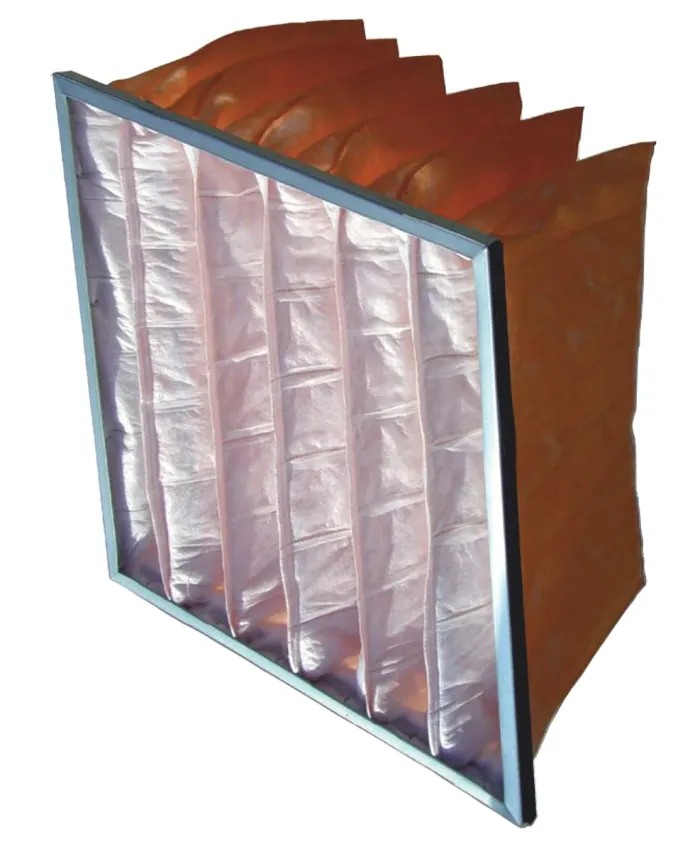

RS PRO Ultraseal Series Polypropylene Bag Filter, 11 MERV Rating, Brown, Galvanised Steel Frame, 592mm x 592mm x 827-9699

RS PRO 827-9699 Ultraseal Series Polypropylene Bag Filter is a high-quality HVAC air filter designed for medium efficiency filtration with an 11 MERV rating. It features a robust galvanised steel header frame supporting a hydrophobic 100% polypropylene synthetic media, making it suitable for use in damp atmospheres.

The filter contains 8 pockets that maximize the surface area for enhanced dust and soot capture, achieving filtration efficiency compliant with BS EN 779 = F6 and a MERV 11 rating to ASHRAE 52.2. This makes the filter ideal for applications in sensitive environments such as hospitals, government buildings, laboratories, offices, theatres, and computer rooms where maintaining clean air quality is essential.

Its dimensions include an actual height and width of 592 mm each, and an actual depth of 500 mm with a nominal depth of 508 mm, supported by a 20 mm header size. The bag filter is brown in color and constructed with galvanised steel casing, ensuring durability in demanding HVAC installations.

Key features include rolled safety edges to prevent damage during installation, ultrasonically welded seams to prevent leaks, and an extra built-in pre-filter layer that extends the filter's operational life. The polypropylene media is non-toxic and non-irritant, providing safe operation in occupied spaces.

The initial pressure drop is rated at 75 Pa, with a final pressure drop of 250 Pa, supporting a maximum air flow of 69.46 cubic meters per hour. The product meets international standards including ISO and RoHS, ensuring environmental compliance and quality assurance.

The filter includes 8 pockets designed to maximize filtration surface area. It supports a maximum air flow rate of 69.46 cubic meters per hour. Constructed with hydrophobic polypropylene media suitable for damp environments.

The bag filter features rolled safety edges and ultrasonically welded seams for leak-free performance. Its dimensions measure 592 mm height, 592 mm width, and 500 mm depth. Compliance with ISO, RoHS, and BS EN standards ensures reliability and safety.

Effective for use in laboratories, offices, theatres, and computer rooms requiring clean air. Designed to extend filter life with an integrated pre-filter layer.

This RS PRO Ultraseal Series filter is made in the United Kingdom and represents a reliable choice for HVAC air filtration solutions in industrial, commercial, and laboratory environments. Browse the HVAC Air Filters category in EnvMart for more premium filtration products.
