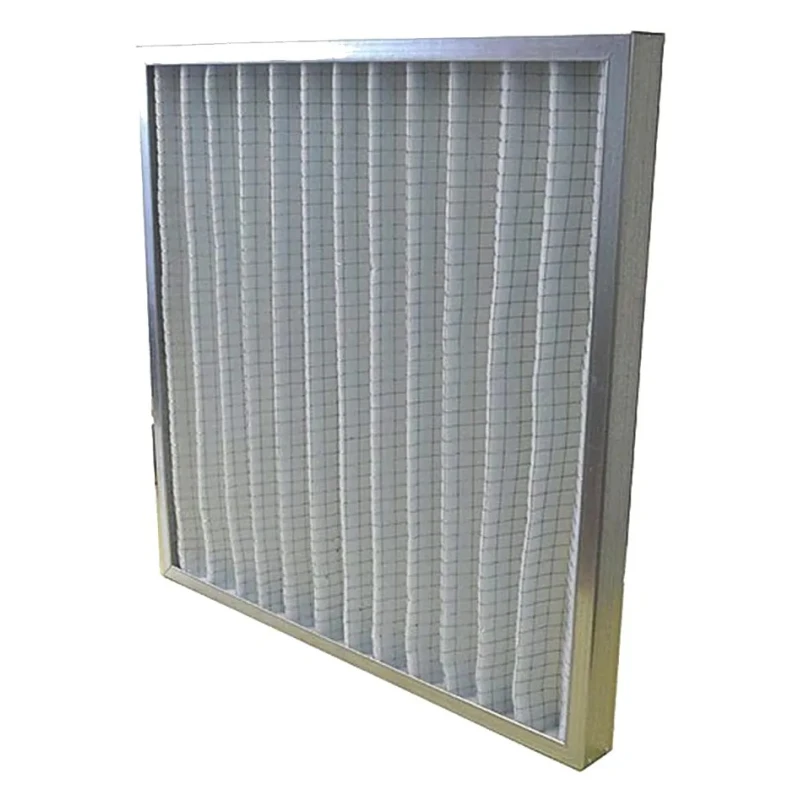

RS PRO Polyethylene Terephthalate Pleated Panel HVAC Air Filter G4 Grade 490mm x 490mm x 45mm 840-4703

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Polyethylene Terephthalate Pleated Panel HVAC Air Filter G4 Grade 490mm x 490mm x 45mm 840-4703

Name: RS PRO Polyethylene Terephthalate Pleated Panel HVAC Air Filter G4 Grade 490mm x 490mm x 45mm 840-4703
Brand: RS PRO
SKU: 380593
Price: 9587.42 INR
Availability: InStock



Category HVAC Air Filter Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Brand	RS PRO
Colour	White
Model	840-4703
Filter Type	Pleated Panel
Case Material	Galvanised Steel
Initial Pressure Drop	65Pa
Final pressure drop	250Pa
Maximum Air Flow	2340m³/h
Standards/Approvals	EN, ISO, DIN, CP413, NF
Media Area	0.5m²
Filter Grade	G4
Actual Width	490mm
Actual Height	490mm
Actual Depth	45mm
Media Material	Polyethylene Terephthalate
Nominal Height	508mm
Nominal Depth	50.8mm
Nominal Width	508mm
RS PRO Polyethylene Terephthalate Pleated Panel Filter, G4 Grade w	490 mm h: 490 mm d: 45 mm

Key Features

The pleated PET media offers an increased surface area for enhanced dust capture.
Constructed with a galvanised steel frame coated in zinc to prevent corrosion.
G4 grade filter removes coarse dust particles to improve air quality.
Features an initial pressure drop of 65 Pa and final pressure drop of 250 Pa.
Maximum air flow capacity of 2340 cubic meters per hour.
Flame-retardant and moisture-resistant polyethylene terephthalate media ensures durability and safety.
Nominal dimensions of 508 mm height x 508 mm width x 50.8 mm depth for compatibility with HVAC systems.
White color and sturdy construction secure filter effectiveness and prevent leaks.

Product Description

RS PRO 840-4703 Polyethylene Terephthalate Pleated Panel HVAC Air Filter, G4 grade, with dimensions 490 mm height x 490 mm width x 45 mm depth, is crafted to capture coarse dust particles to maintain clean indoor air quality in industrial and commercial ventilation systems.

The filter employs a thermobonded, non-woven PET media that increases surface area via pleats to trap larger airborne particles effectively while maintaining optimal airflow. The high-quality polyethylene terephthalate media is flame-retardant and moisture-resistant, enhancing safety and filter lifespan.

Encased in a galvanised steel frame with zinc coating, this filter is protected against corrosion, ensuring durability even in harsh environments. Its G4 filtration grade targets coarse particulate matter, suitable for pre-filtration in HVAC systems.

Key technical specifications include an initial pressure drop of 65 Pa and a final pressure drop of 250 Pa, supporting a maximum airflow rate of 2340 m³/h. The nominal size of 508 mm x 508 mm x 50.8 mm ensures suitability for standardized HVAC filter slots, while the actual dimensions are 490 mm x 490 mm x 45 mm.

This RS PRO panel filter conforms to international standards EN, ISO, DIN, CP413, and NF, validating its performance for industrial ventilation, manufacturing facilities, commercial buildings, and air conditioning systems.

The pleated PET media increases filtration area and efficiency. Galvanised steel frame is corrosion-resistant and robust. G4 grade for effective coarse dust filtration. Moisture-resistant and flame-retardant filter media for safety.

Optimized airflow with 2340 m³/h maximum capacity. Pressure drop levels ensure operational efficiency. Standard nominal dimensions for broad compatibility. Meets EN, ISO, DIN, CP413, and NF standards. Ideal for industrial, commercial HVAC and air purification systems.

Choose RS PRO HVAC Air Filters for reliable air quality management in demanding environments. Discover more options and related filtration products in the industrial filters category at EnvMart.
