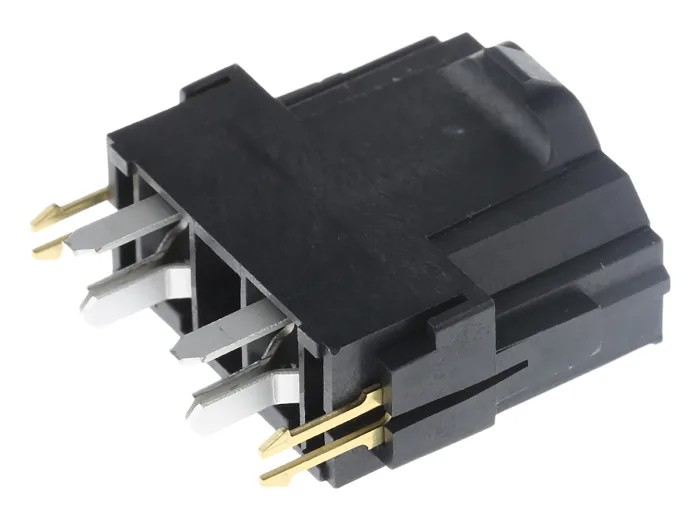

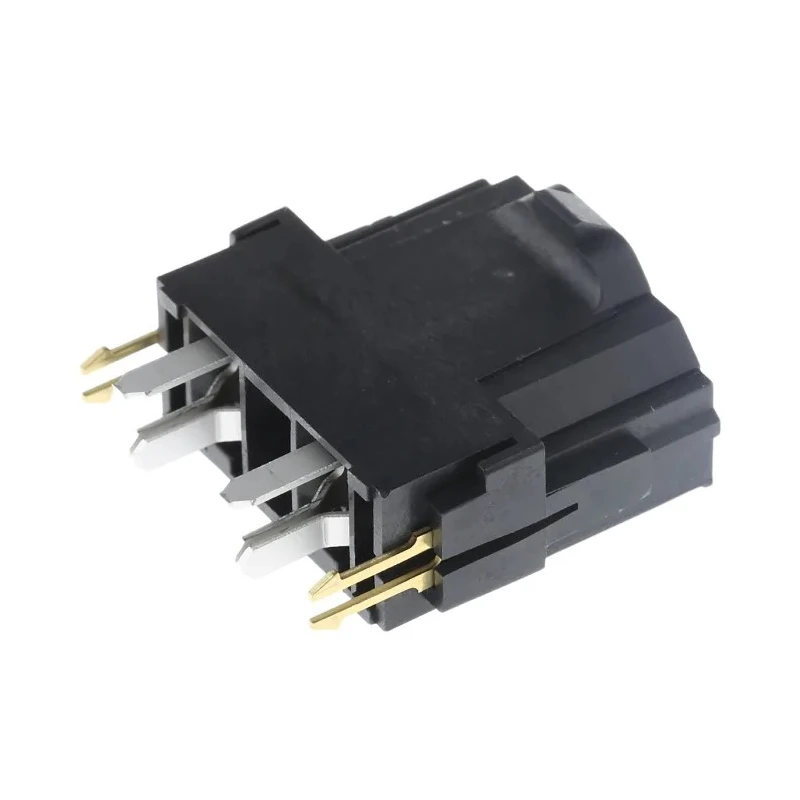

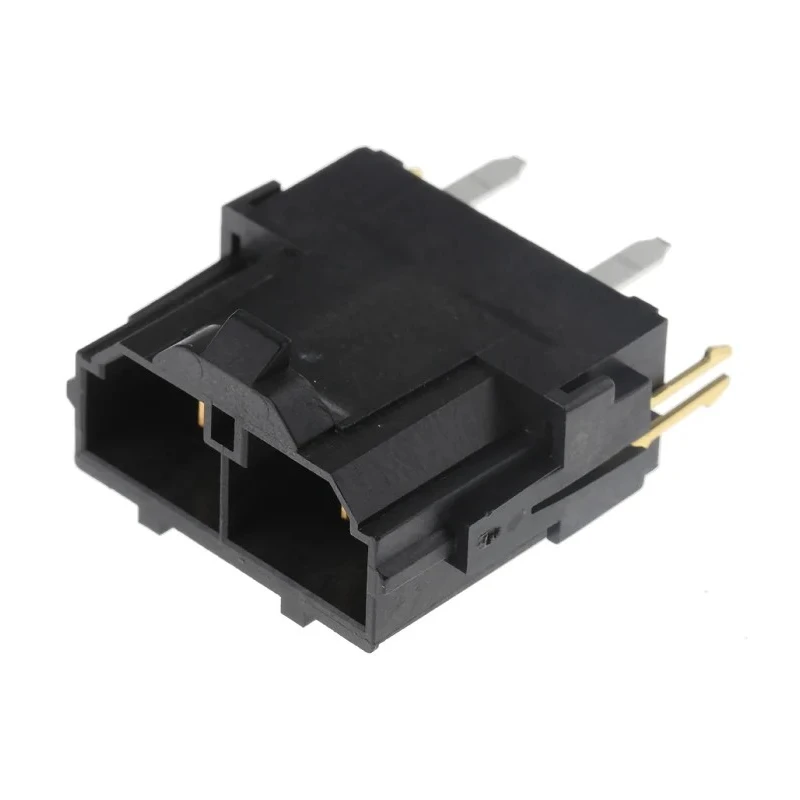

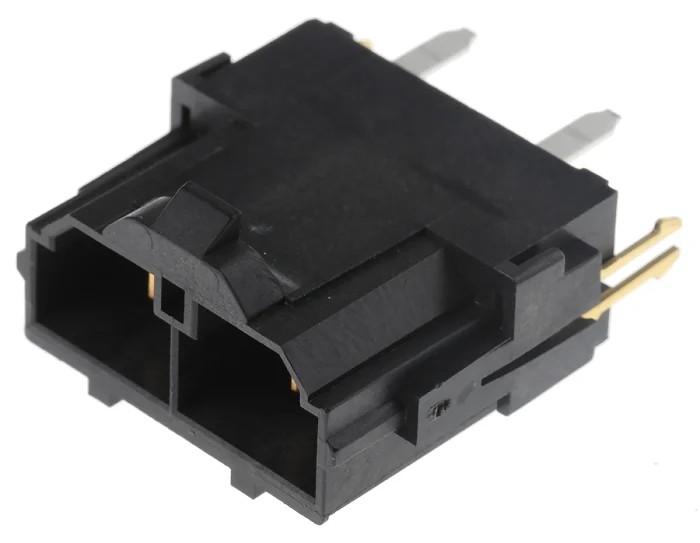

Molex Mini-Fit Sr Series Straight Through Hole PCB Header 2 Contact 10 mm Pitch 1 Row Shrouded 42819-2223

Name: Molex Mini-Fit Sr Series Straight Through Hole PCB Header 2 Contact 10 mm Pitch 1 Row Shrouded 42819-2223
Brand: Molex
SKU: 368705
Price: 8.11 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	Mexico
Voltage	600V
Brand	Molex
Orientation	Straight
Current	50A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Brass
Series	Mini-Fit Sr
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	10mm
Contact Plating	Gold
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
428xx-x2x2	Tin plated contact area
428xx-x2x3	Gold plated contact area
428xx-x21x	1.57 mm nominal PCB thickness
428xx-x22x	2.36 mm nominal PCB thickness
428xx-x23x	3.18 mm nominal PCB thickness
428xx-x24x	6.35 mm nominal PCB thickness

Key Features

This PCB header supports a current rating of 50A for high power handling.
Constructed with a thermoplastic housing material ensuring durability.
Features brass contact material plated with gold for reliable conductivity and corrosion resistance.
Designed for through-hole mounting with solder termination type for secure installation.
Operating temperature range from -40°C to 105°C suitable for varied environments.
Shrouded design improves connection security and protection.
Single row configuration with a 10 mm row pitch supports clear circuit layout.
Male contact gender suited for mating with cable receptacle housings in wire-to-board systems.

Product Description

Molex 42819-2223 Mini-Fit Sr Series Straight Through Hole PCB Header offers a robust wire-to-board connection solution. This product features 2 gold-plated brass contacts housed in high-quality thermoplastic, providing excellent electrical and mechanical performance for power connector applications.

The header supports a current capacity of 50A and is designed for through-hole mounting with solder termination, ensuring firm PCB attachment. Its shrouded, straight orientation with a 10 mm pitch and single-row configuration facilitates easy and reliable connections in electronic assemblies.

Operating reliably in temperature ranges from -40°C to 105°C, this connector is ideal for demanding industrial, electronic, and power distribution applications. The male contact design ensures secure mating with compatible cable receptacles.

Manufactured in Mexico, the Molex Mini-Fit Sr series adheres to industry standards for safety and performance. Typical use cases include power supply units, industrial machinery, HVAC systems, and electronic control panels.

This header supports a current rating of 50A for high power handling. Constructed with a thermoplastic housing material ensuring durability. Features brass contact material plated with gold for reliable conductivity and corrosion resistance.

Designed for through-hole mounting with solder termination type for secure installation. Operating temperature range from -40°C to 105°C suitable for varied environments. Shrouded design improves connection security and protection.

Single row configuration with a 10 mm row pitch supports clear circuit layout. Male contact gender suited for mating with cable receptacle housings in wire-to-board systems. Rated for operating voltage of 600V meeting industrial power connector standards.

Choose Molex Mini-Fit Sr Series PCB Headers for reliable electrical connections in demanding industrial and commercial electronic systems. Explore more power connector solutions at EnvMart.
