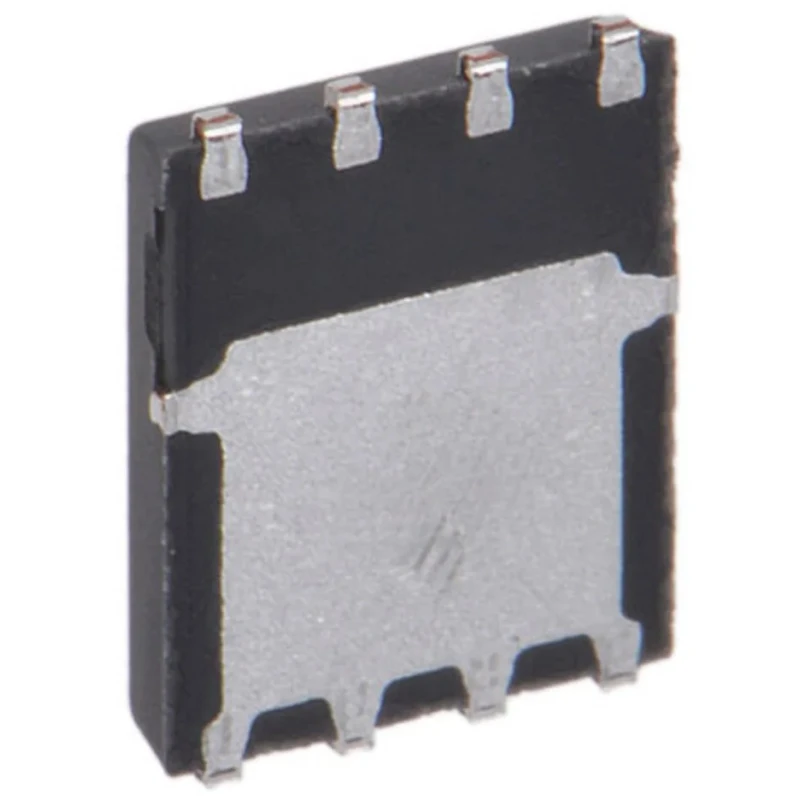

onsemi PowerTrench N-Channel MOSFET 40 V 238 A Surface Mount 8-Pin WDFN FDMS8320L

onsemi FDMS8320L PowerTrench N-Channel MOSFET is a high-performance power transistor designed for demanding electronic applications requiring high current and low voltage operation.

This device is rated for a maximum continuous drain current of 238 A and can withstand a drain-source voltage of up to 40 V, making it suitable for power management in industrial and consumer electronic systems.

The FDMS8320L comes in a compact 8-Pin WDFN surface mount package measuring 5 mm length, 6 mm width, and 1.05 mm height, which facilitates easy integration into densely populated electronic circuits.

Its low on-resistance of 1.7 milliohms and typical gate charge of 121 nanocoulombs enable efficient switching with minimized losses and improved thermal management. The transistor operates across a wide temperature range from -55°C to 150°C, supporting reliability in harsh environmental conditions.

The device features an enhancement mode channel for precise control and includes a forward voltage of 740 millivolts for effective conduction. The maximum gate-source voltage rating of -20 to +20 volts provides robust protection against electrical overstress.

Supports a maximum continuous drain current of 238 A. Maximum drain-source voltage rating of 40 V. Compact surface mount WDFN 8-Pin package. Low on-resistance of 1.7 mΩ for efficient power handling. Wide operating temperature range from -55°C to 150°C.

Maximum power dissipation of 104 W suitable for robust applications. Typical gate charge of 121 nC for fast switching capability. Forward voltage of 740 mV aiding efficient conduction. Maximum gate-source voltage rating: -20 to +20 V.

Ideal for industrial power management, automotive electronics where automotive standard is not required, and consumer electronic applications requiring reliable discrete semiconductor components.
