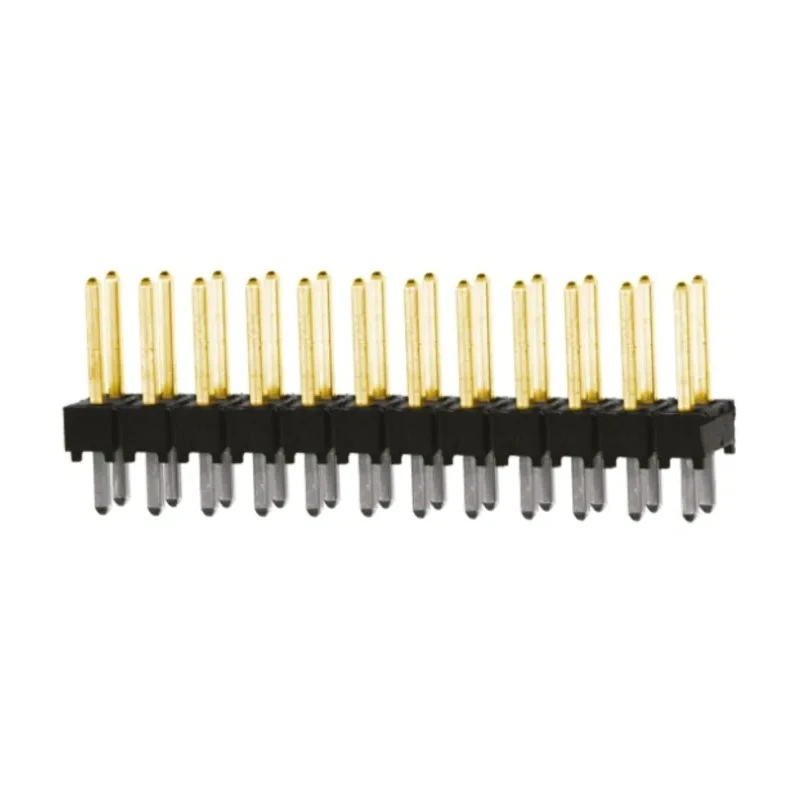

Samtec TSW Series Straight Through Hole Pin Header 24 Contacts 2.54 mm Pitch 2 Row Unshrouded TSW-112-07-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | TSW-112-07-L-D |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.54mm |
| Mating Pin Length | 5.84mm |
Key Features
- This pin header features a 2.54 mm pitch suitable for standard PCB layouts.
- It has 24 electrical contacts arranged in 2 rows for compact and reliable connections.
- The housing is made of black, glass filled polyester, offering durability and heat resistance.
- Contacts are made from phosphor bronze with gold plating to ensure excellent conductivity and corrosion resistance.
- Designed for through-hole mounting, providing firm physical and electrical connection.
- Operating temperature range from -55°C to 125°C for versatile applications.
- Maximum rated voltage of 550V and current capacity of 7.6 A for effective power transfer.
- The connector is unshrouded, suitable for board-to-board and wire-to-board systems.
Product Description
Samtec TSW-112-07-L-D is a TSW Series Straight Through Hole Pin Header designed with 24 contacts and a 2.54 mm pitch. It features a two-row configuration and an unshrouded design, making it suitable for board-to-board and wire-to-board connector systems. The pin header uses a black glass-filled polyester housing that is durable and heats resistant while providing mechanical support.
The contacts are made from phosphor bronze with gold plating, which enhances electrical conductivity and corrosion resistance. It is intended for through-hole mounting on printed circuit boards, allowing secure solder termination. This product operates efficiently in temperatures from -55°C to 125°C.
The connector supports electrical specifications up to 7.6 amperes current and 550 volts, ensuring safe and reliable operation in various industrial and electronic applications. The contact design includes a tail pin length of 2.54 mm and mating pin length of 5.84 mm for compatibility with corresponding sockets.
This pin header series is commonly used in industrial machinery, electronic assemblies, power distribution, and manufacturing systems requiring robust board connections. Its unshrouded female gender design allows easy mating with related connectors for flexible architectural layouts.
This header contains 24 male contacts arranged in two rows with 2.54 mm pitch. Housing is glass filled polyester for mechanical strength and thermal resistance. Contacts use phosphor bronze material with gold plating for enhanced conductivity.
Designed for through hole mount with solder termination on PCBs. Temperature rated from -55°C to 125°C for wide usage range. Electrical ratings of 7.6A current and 550V voltage. Connector system supports board-to-board and wire-to-board configurations.
Unshrouded design allows easy connector mating and maintenance.
Choosing Samtec TSW-112-07-L-D ensures high performance in electronics, industrial power, and manufacturing sectors. Explore EnvMart for more connectors, headers, and electronic components suitable for your applications.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 2.54 mm, which is suitable for standard PCB layouts.
This model features 24 electrical contacts arranged in two rows.
The maximum rated voltage for this connector is 550V.
The current capacity of this pin header is 7.6A.
The housing is made of glass-filled polyester, while the contacts are made from phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.
The operating temperature range for this connector is from -55°C to 125°C.
This model is designed for through-hole mounting, allowing secure solder termination on printed circuit boards.
The termination type for this pin header is solder, which is common for through-hole connectors.
The contact gender of this model is male, allowing it to mate with corresponding female connectors.
This pin header supports board-to-board and wire-to-board connector systems.
The tail pin length of this connector is 2.54 mm.
The mating pin length for this model is 5.84 mm, ensuring compatibility with corresponding sockets.
