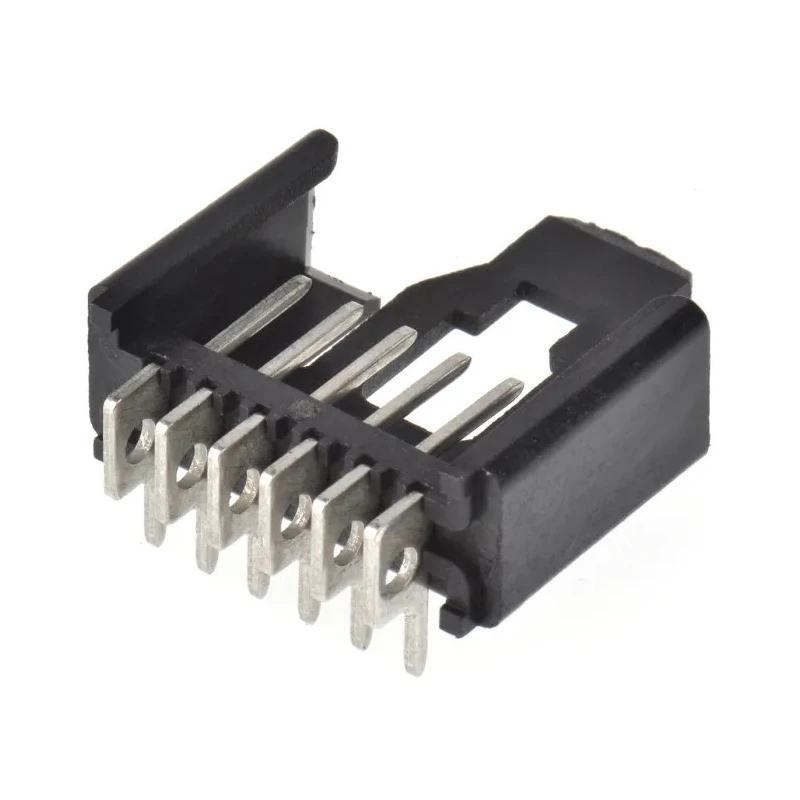

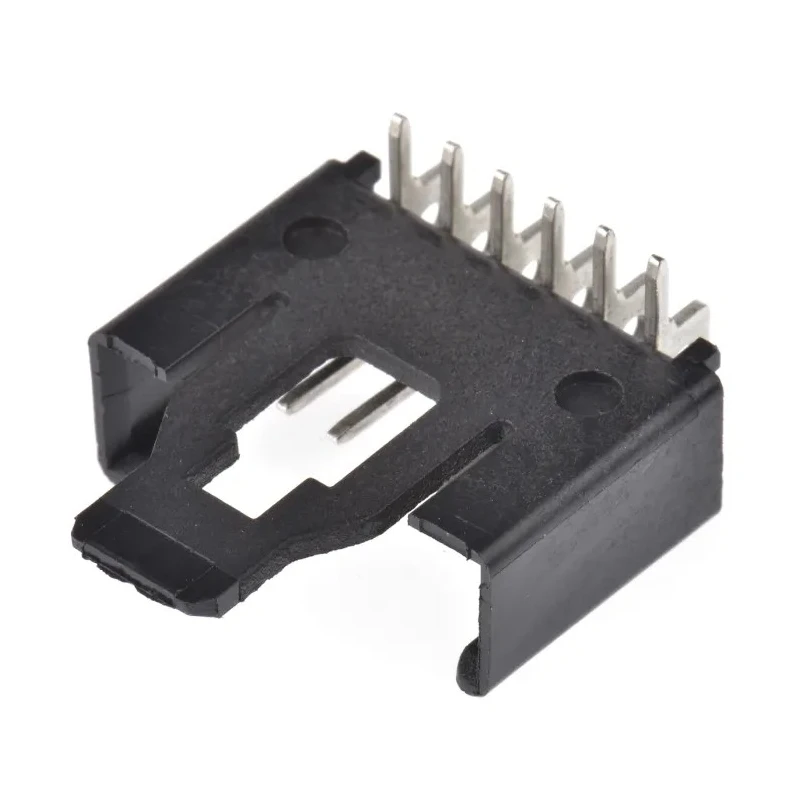

Lumberg Minimodul Series Right Angle Through Hole PCB Header, 6 Contact(s), 2.5 mm Pitch, 1 Row, Shrouded 2,5 MSFW 06

Lumberg 2,5 MSFW 06 is a Minimodul Series PCB Header designed for robust wire-to-board connection applications. Featuring a right angle orientation and shrouded design, this connector has 6 male contacts with a 2.5 mm pitch arranged in a single row. The contacts are brass with tin plating, ensuring good conductivity and corrosion resistance. The glass filled polyamide housing provides mechanical strength and electrical insulation.

This PCB header operates reliably within a temperature range of -40°C to 120°C, making it suitable for various industrial, electronic, and electrical applications requiring stable connections under diverse ambient conditions. It complies with DIN EN 60664, IEC 60664, IEC 60335-1, and IEC 60695-2-11 standards, reflecting its high quality and safety. The component supports up to 160 volts and 5 amperes of current, making it appropriate for signal transmission and low to medium load currents.

Lumberg Minimodul components enable efficient, low-volume production with proven crimp technology. This header is compatible with Lumberg’s 3114 Series crimp contact housings, facilitating fast and reliable cable-to-board connections for single wires or flat cables. The solder termination type secures the connector onto the PCB through a through-hole mount, suitable for various electronic equipment assemblies.

The header has a single row configuration with male contacts. The 2.5 mm pitch ensures precise mating with corresponding connectors. Brass contacts plated with tin provide durability and conductivity. Glass filled polyamide housing offers strength and electrical insulation.

Rated for operation from -40°C to 120°C temperature range. Meets international standards for safety and performance. Supports voltage up to 160 V and current up to 5 A. Solder termination and through-hole mount provide secure PCB attachment.

Ideal for industrial, electronic, and electrical applications requiring reliable connectors.

The package includes one Lumberg Minimodul series right angle through hole PCB header with the technical specifications described. This product is manufactured new and sourced from India. Explore more PCB Headers and connectors on EnvMart to find compatible components and complementary products.
