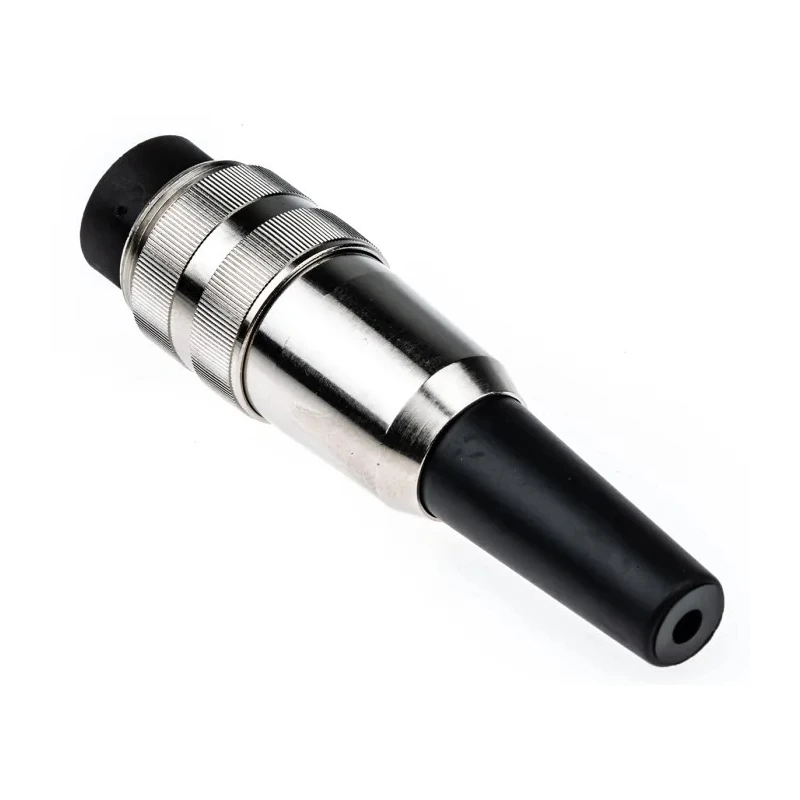

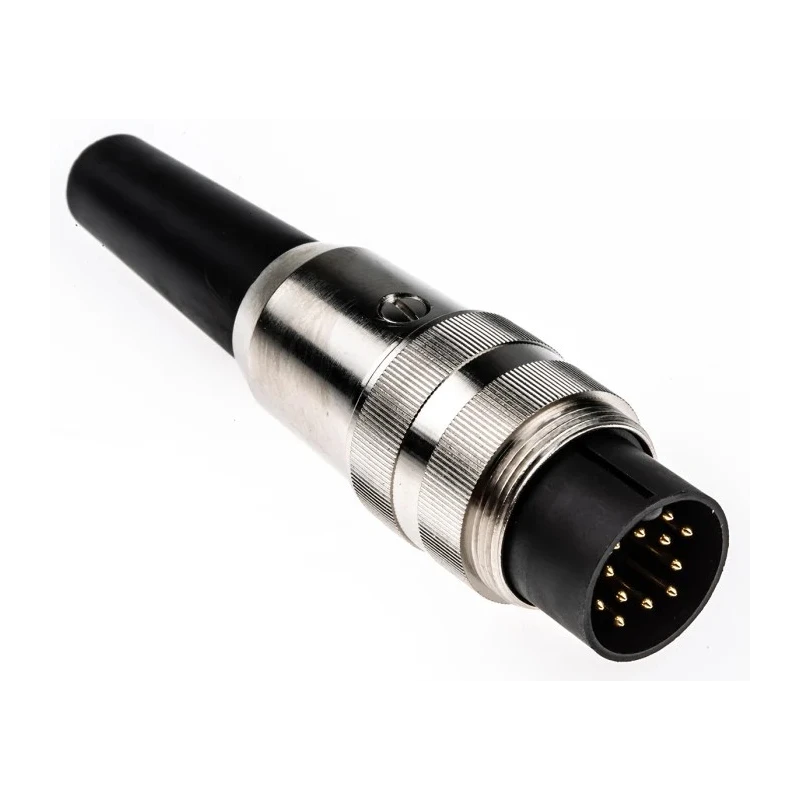

Lumberg 12 Pole Straight M16 DIN Plug Cable Male Threaded Solder Terminals SV 120
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 60V ac |
| Brand | Lumberg |
| Orientation | Straight |
| Current | 3A |
| Model | SV 120 |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Copper Zinc Alloy |
| Contact Material | Brass |
| Series | SV |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 12 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Connector Gender | Male |
| Mating Type | Threaded |
| Connector Size | M16 |
| DIN Number | DIN EN 60529 |
Key Features
- Rated for 3A current and 60V AC voltage for reliable electrical performance.
- Features gold over nickel-plated brass contacts ensuring durability and corrosion resistance.
- Constructed from copper zinc alloy housing for mechanical robustness.
- Operates in temperature range from -40°C to 85°C for wide environmental use.
- Includes solder termination type for secure wiring connections.
- Conforms to DIN EN 60529 standard with IP40 ingress protection rating.
- Designed for automation, control engineering, medical instrumentation, and MIDI equipment.
- Straight orientation with threaded mating for secure and durable connections.
Product Description
Lumberg SV 120 is a high-quality 12 pole straight DIN Plug connector, designed for secure cable connections in industrial and electronic applications. This M16 sized male plug features threaded mounting and solder termination, providing reliable and stable connections under various conditions.
The connector supports a current rating of 3A and an operating voltage of 60V AC, suitable for control and automation systems.
Its copper zinc alloy housing and brass contacts plated with gold over nickel ensure excellent durability and corrosion resistance, extending connector life even in demanding environments.
Rated IP40 according to DIN EN 60529, it offers protection against solid objects larger than 1 mm and limited protection against dust, making it well-suited for indoor industrial settings.
The operating temperature range from -40°C to 85°C allows usage in wide temperature conditions common in control engineering, medical instrumentation, MIDI instrument interfaces, and portable video devices.
This cable mount plug equipped with solder terminations provides secure and robust cable connection points, facilitating ease of assembly and maintenance. Rated for 3A current at 60V AC voltage for stable power transmission.
Gold over nickel-plated brass contacts ensure corrosion resistance and signal integrity. Copper zinc alloy housing offers mechanical strength and durability. Operating temperature range of -40°C to 85°C supports diverse environments.
IP40 ingress protection suitable for typical industrial indoor conditions. Threaded mating type ensures secure and vibration-resistant connections. Straight design facilitates space-efficient wiring layouts. Applications include automation, control engineering, medical instrumentation, and MIDI devices.
Manufactured in China and supplied new for guaranteed quality.
Explore further connectivity solutions in our Electronics & Electricals category at EnvMart to find complementary DIN connectors and accessories that match the robust quality of Lumberg components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 3A and an operating voltage of 60V AC.
The housing is made from copper zinc alloy, while the contacts are brass plated with gold over nickel for enhanced durability and corrosion resistance.
This model has an IP40 ingress protection rating, which protects against solid objects larger than 1 mm and provides limited dust protection.
It operates within a temperature range of -40°C to 85°C, making it suitable for various environmental conditions.
It features solder termination, providing secure wiring connections.
This connector has a straight orientation and is designed for cable mounting with threaded mating for secure connections.
It has 12 poles, allowing for multiple connections in a single unit.
It is designed for use in automation, control engineering, medical instrumentation, and MIDI equipment.
The connector size is M16, which specifies the dimensions for compatibility with corresponding sockets.
The gold over nickel plating on the contacts ensures corrosion resistance and maintains signal integrity over time.
This connector is manufactured in China.
It conforms to the DIN EN 60529 standard, which outlines the requirements for ingress protection ratings.
