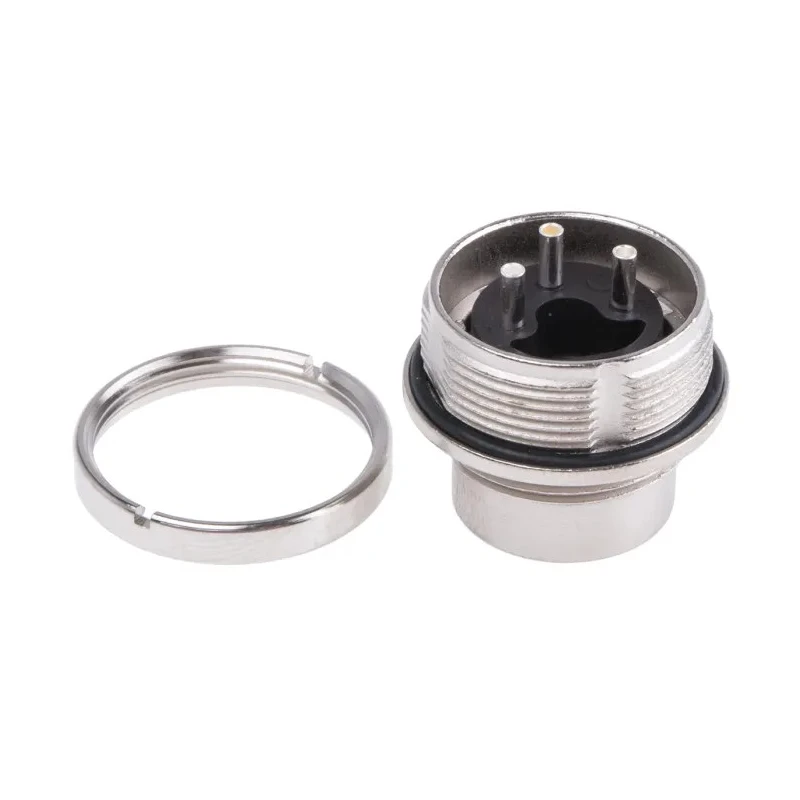

Amphenol Industrial DIN 41524 3 Pole Straight M16 Panel Mount DIN Plug 5A 300 V AC/DC IP67 Screw Terminal C091-31W003-1002

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Industrial DIN 41524 3 Pole Straight M16 Panel Mount DIN Plug 5A 300 V AC/DC IP67 Screw Terminal C091-31W003-1002

Name: Amphenol Industrial DIN 41524 3 Pole Straight M16 Panel Mount DIN Plug 5A 300 V AC/DC IP67 Screw Terminal C091-31W003-1002
Brand: Amphenol Industrial
SKU: 147840
Price: 11.18 USD
Availability: InStock



Category DIN Plug Brand Amphenol Industrial Condition New

Specifications

Country of Origin	China
Voltage	300, 300V ac
Brand	Amphenol Industrial
Orientation	Straight
Current	5A
Model	C091-31W003-1002
IP Rating	IP67
Mount Type	Panel Mount
Housing Material	Die Cast Nickel
Series	C 091 D
Termination Type	Solder
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-40°C
Pole Format	3
Contact Plating	Silver
Number of Contacts	3
Contact Gender	Male
Connector Gender	Male
Mating Type	Screw
Connector Size	M16
DIN Number	DIN 41524

Key Features

The connector conforms to DIN 41524 standards for reliability and compatibility.
Features a die cast nickel housing with silver contact plating for enhanced durability.
IP67 rating ensures water and dust resistance suitable for industrial environments.
Operates within a temperature range of -40°C to 100°C for versatile applications.
Designed for panel mounting with male connector gender and screw mating type.
Ideal for use in industrial automation, medical, robotic, automotive, instrumentation, and CCTV systems.
Provides robust electrical connections with screw locking and internal strain relief.
Connector size M16 allows compact and secure installations in demanding setups.

Product Description

Amphenol Industrial C091-31W003-1002 is a 3 Pole Straight M16 DIN Plug designed for panel mount applications with screw termination. Rated for 5A current and 300 V AC/DC voltage, this connector complies with DIN 41524 standards and offers reliable performance in harsh industrial conditions.

The connector features a die cast nickel housing, providing excellent mechanical strength and corrosion resistance, complemented by silver-plated contacts to ensure superior conductivity and long service life. With an IP67 rating, it is protected against dust ingress and temporary water immersion, making it suitable for rigorous indoor and outdoor environments.

Operating temperature ranges from -40°C to 100°C allows its use across various industrial, laboratory, and manufacturing sectors. The screw locking mechanism and internal strain relief enhance connection security and prevent damage from mechanical stress.

This panel mount male connector is particularly effective for applications requiring compact, robust circular connectors such as medical equipment interfaces, robotic controls, automotive sensor connections, and CCTV systems.

The connector conforms to DIN 41524 standards for reliability and compatibility. Features a die cast nickel housing with silver contact plating for enhanced durability. IP67 rating ensures water and dust resistance suitable for industrial environments.

Operates within a temperature range of -40°C to 100°C for versatile applications. Designed for panel mounting with male connector gender and screw mating type. Ideal for use in industrial automation, medical, robotic, automotive, instrumentation, and CCTV systems.

Provides robust electrical connections with screw locking and internal strain relief. Connector size M16 allows compact and secure installations in demanding setups. This product is made in China and offered new, ensuring high quality and authenticity. Suitable for electronics component assemblies requiring durable circular connectors.
