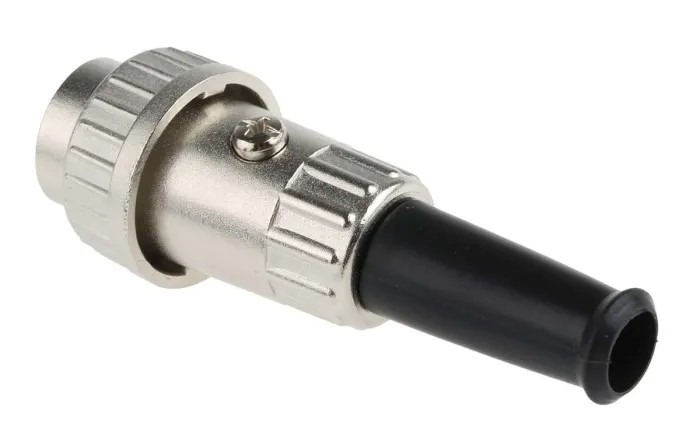

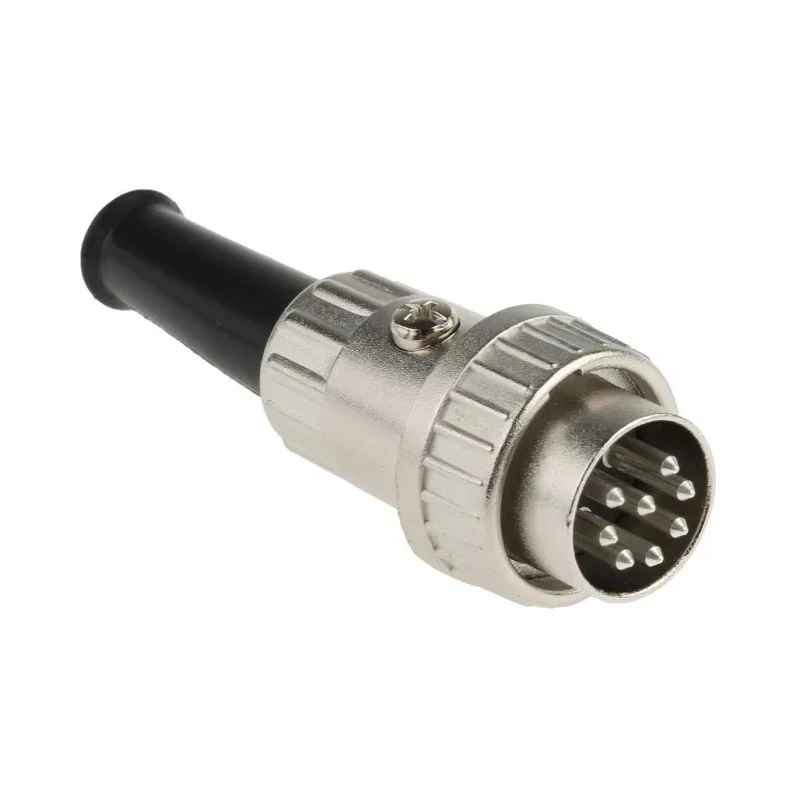

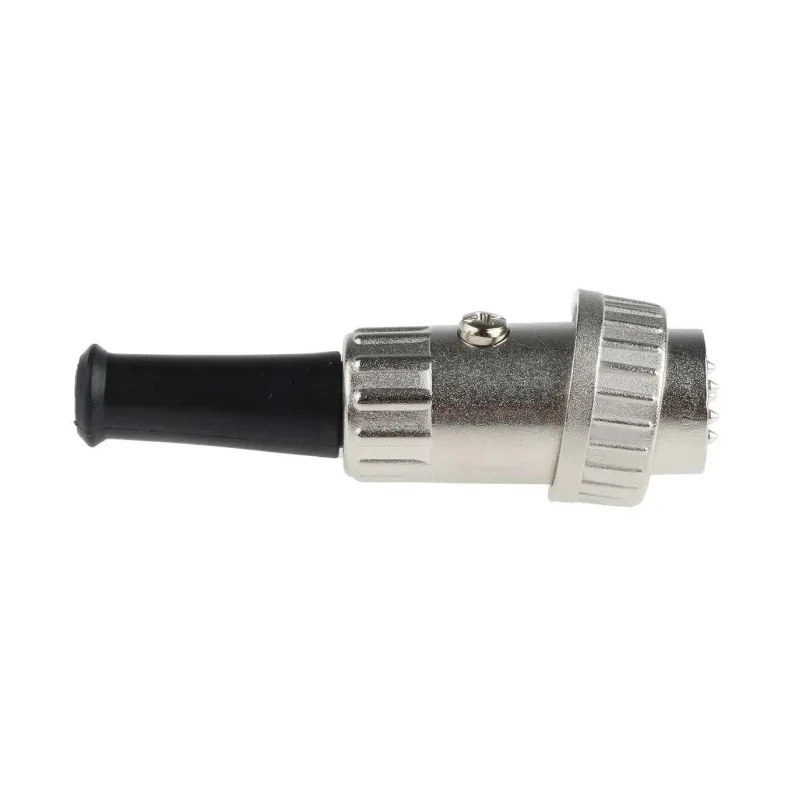

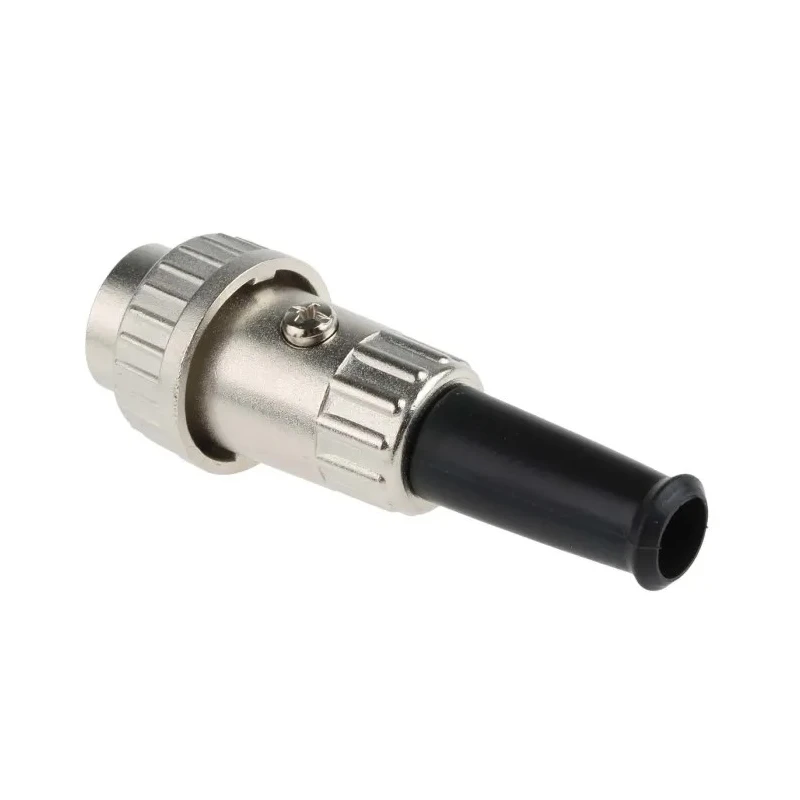

RS PRO 8 Pole Straight Standard DIN Plug, 1A, 100V AC, Bayonet Cable Mount 490-951

RS PRO 490-951 8 Pole Straight Standard DIN Plug is a high-quality cable mount DIN connector designed for industrial and electronic applications requiring reliable connections with moderate current and voltage ratings. Rated at 1A current and 100V AC voltage, this connector features a robust bayonet locking system, ensuring secure mechanical stability when mated with corresponding chassis-mounted sockets.

The plug includes 8 male contacts arranged in a standard size configuration. Constructed with an ABS plastic housing and brass contacts plated with silver, it ensures corrosion resistance and long service life. This connector supports operating temperatures from -25°C to 70°C, making it suitable for diverse environmental conditions.

Additional features include a metal shield for electromagnetic interference protection, zinc alloy nickel-plated bayonet cap, set screw and 'T' holder made of steel nickel-plated for durability, and cable grip with strain relief to protect cable integrity during use.

Technical performance includes a contact resistance of maximum 30 milliohms per pin and 50 milliohms for the shell, insulation resistance of minimum 100 megaohms at 500V DC, and voltage withstand capacity of 250V AC for one minute.

DIN connectors such as this are widely used for connecting peripherals and devices including audio, video, data, and power applications. The bayonet locking system allows quick mating and secure retention, preventing accidental disconnection under mechanical stress.

RS PRO is a trusted brand offering rigorously tested components that meet demanding industry standards and quality requirements. The 490-951 model is manufactured in Taiwan, Province Of China, ensuring reputable production quality.

Features 8 male contacts arranged in a standard connector size. Constructed with an ABS housing and brass contacts with silver plating for durability. Supports operating temperatures from -25°C to 70°C. Incorporates a bayonet locking system for secure and quick connection.

Includes cable grip and strain relief to enhance cable stability. Shielded with a metal shield covering and zinc alloy nickel-plated bayonet cap. Designed for reliable signal and current transmission in electronic applications.

Contact resistance is maximum 30mΩ per pin and 50mΩ for the shell. Insulation resistance is at least 100MΩ at 500V DC. Voltage withstand capacity of 250V AC for 1 minute. Explore more industrial and electronic connectors and components in the RS PRO range at EnvMart for reliable and efficient system connections.
