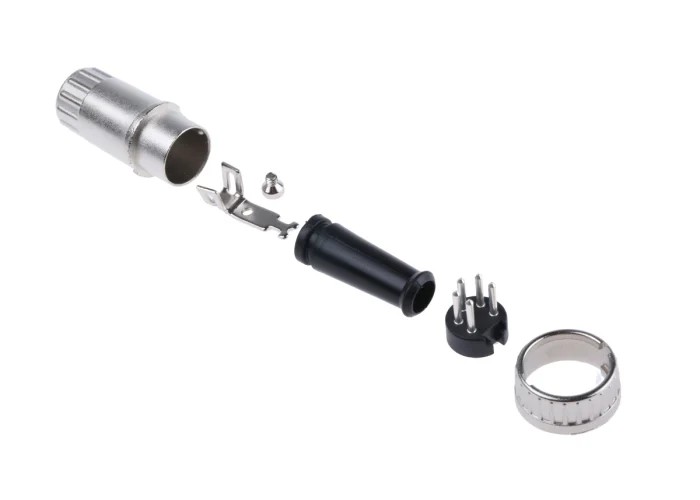

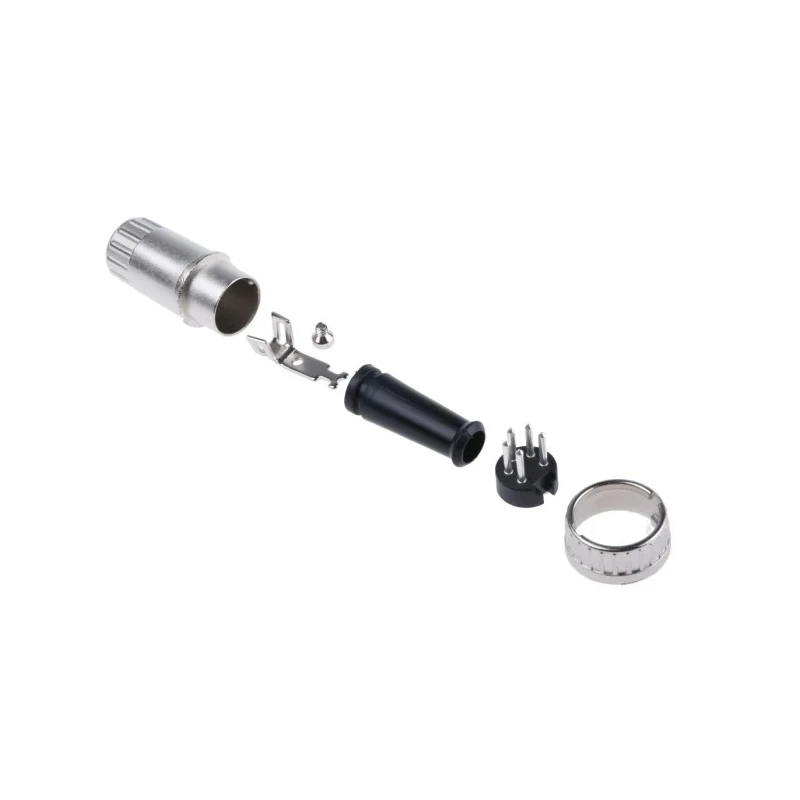

RS PRO 5 Pole Straight Standard DIN Plug 4A 100V AC Bayonet Cable Male 491-021

RS PRO 491-021 5 Pole Straight Standard DIN Plug is a robust cable-mounted electrical connector designed for industrial and electronic component applications. Rated for 4A current and 100V AC voltage, it features a cable mount type with a sturdy ABS housing and silver-plated brass contacts. The male connector has a bayonet locking system that ensures quick and secure mating with compatible chassis mounted sockets.

This DIN plug is shielded and oriented straight for reliable signal integrity and durability. It operates effectively within a temperature range of -25°C to 70°C, providing stable performance under various environmental conditions. The plug includes a cable grip and strain relief mechanism along with locking rings for enhanced mechanical protection.

Specifications include a contact resistance of 30 milliohms max per pin, an insulation resistance of 100 megaohms at 500 volts DC minimum, and a voltage withstand capability of 250 volts AC for one minute, ensuring high safety and operational standards. The shield cover and bayonet cap are zinc alloy nickel plated, while the set screw and T holder are steel nickel plated, increasing corrosion resistance and mechanical strength.

Typical applications involve secure connections for audio, video, power, serial, and data transmission devices across electronic, industrial, and laboratory environments. The RS PRO brand assures quality and reliability through rigorous industrial standards testing. This product is manufactured in Taiwan, Province of China, and is part of a broad RS PRO range of DIN connectors.

This DIN Plug has 5 contacts configured for cable mounting. Rated for a current of 4 amperes and voltage of 100V AC. Constructed with an ABS housing and silver-plated brass contacts for durability and conductivity. Includes a bayonet-type mating system with shielded and straight orientation.

Designed with a cable grip and strain relief with locking rings included as standard. Operates within a temperature range of -25°C to 70°C for various industrial applications. Offers contact resistance of max 30mΩ per pin and insulation resistance of 100MΩ at 500V DC minimum.

Designed to withstand voltages up to 250V AC for 1 minute. Suitable for audio, video, power, serial, and data connections in electronic devices. Manufactured in Taiwan, Province of China under the trusted RS PRO brand. Explore RS PRO and other reliable DIN connectors at EnvMart for your industrial and technical needs.
