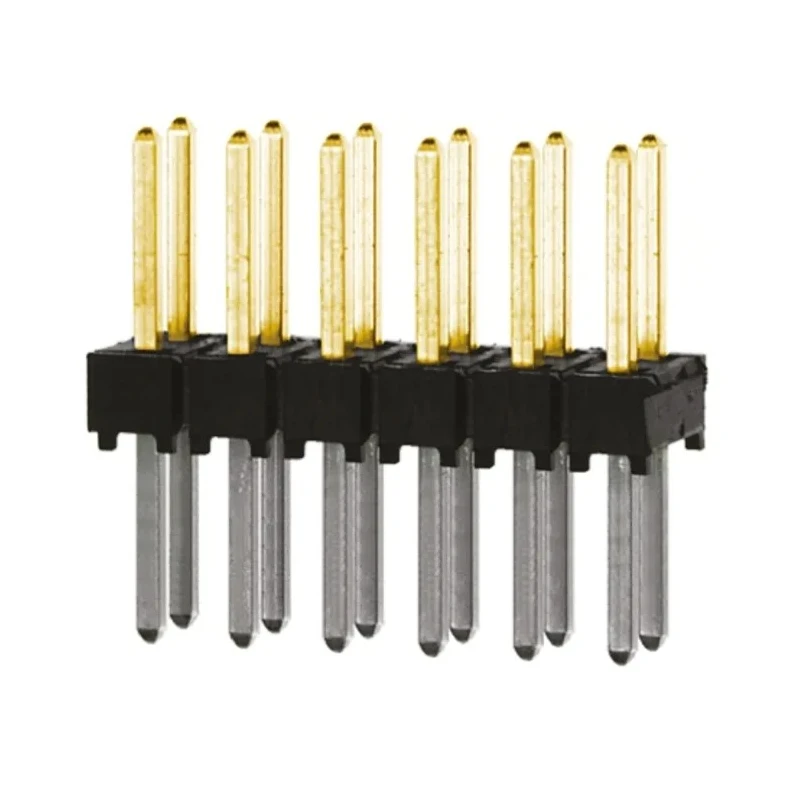

Samtec TSW Series Straight Through Hole 12 Contact 2.54 mm Pitch 2 Row Unshrouded Pin Header TSW-106-08-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | TSW-106-08-L-D |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 5.08mm |
| Mating Pin Length | 5.84mm |
Key Features
- The housing is made of black glass-filled polyester for durability.
- Contacts are phosphor bronze plated with gold for reliable conductivity.
- The connector operates safely between -55°C and 125°C.
- Rated to carry up to 7.6A current at 550V voltage.
- This through-hole connector features a solder termination type with a 5.08mm tail pin length.
- The product is unshrouded to allow easy mating with compatible sockets.
- Perfect for industrial electronics, power connectors, and PCB applications.
- Complies with the TSW series standards for quality and form factor.
Product Description
Samtec TSW-106-08-L-D is a straight, through-hole, unshrouded pin header with 12 male contacts arranged in 2 rows, featuring a 2.54 mm pitch. The connector housing is made from durable black glass-filled polyester, ensuring mechanical strength and electrical insulation. The phosphor bronze contacts plated with gold provide excellent conductivity and corrosion resistance. It is suitable for board-to-board and wire-to-board connections in demanding industrial and electronic applications.
The operating temperature range extends from -55°C to 125°C, supporting a maximum current rating of 7.6A and a voltage rating of 550V. The tail pin length of 5.08mm facilitates secure soldering onto PCBs. This product is ideal for applications requiring robust and reliable electrical connections within electronic assemblies, power systems, and embedded devices.
The TSW series connectors are versatile, with options for single or double rows and multiple plating types, allowing customization to meet different design requirements. This model is an unshrouded variation, simplifying access and mating to compatible sockets typically from Samtec's extensive PCB connector ecosystem.
The black glass-filled polyester housing enhances durability and heat resistance. Gold-plated phosphor bronze contact material provides reliable electrical performance. Designed for board-to-board and wire-to-board connector systems.
Suitable for through-hole mounting with solder termination. Wide temperature operating range from -55°C to 125°C for harsh environments. Rated for 7.6A current and 550V voltage ensures electrical safety. Unshrouded design allows easy mating with standard sockets and headers.
This pin header is widely used in industrial electronics manufacturing, PCB assembly lines, power connector installations, and other high-reliability electrical interconnections. Its robust construction and standardized footprint comply with industry requirements, making it a trusted choice for engineers and technicians.
Explore more similar PCB Headers and connectors in the Electronics Components category at EnvMart to find solutions that suit your technical needs.
