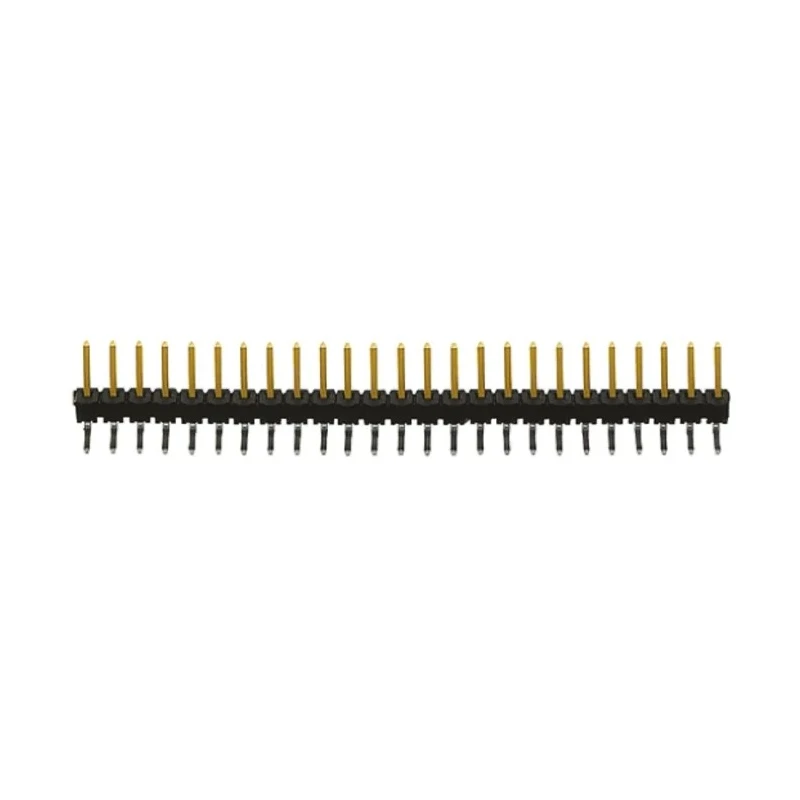

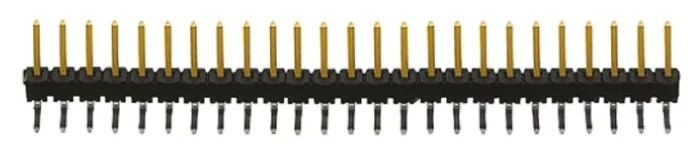

Samtec TSW Series Right Angle Through Hole Pin Header 25 Contacts 2.54 mm Pitch 1 Row Unshrouded TSW-125-08-L-S-RA

Samtec TSW-125-08-L-S-RA Right Angle Through Hole Pin Header is engineered for PCB interconnection where a sturdy and reliable connector solution is needed. It features 25 gold-plated phosphor bronze male contacts spaced at a 2.54 mm pitch arranged in a single row. The glass filled polyester housing provides mechanical strength and resistance to environmental factors, supporting typical industrial applications.

This connector’s right angle orientation and through hole mount type enable efficient board-to-board or wire-to-board connections in electronic assemblies. It supports a nominal current of 7.6A and can safely operate at voltages up to 450V, making it suitable for various power and signal applications in electronics manufacturing, industrial control systems, and instrumentation.

The solder termination with a 2.29 mm tail pin length facilitates secure soldering onto PCB pads, ensuring a robust electrical and mechanical connection. Its unshrouded design enhances accessibility and flexibility for mating with corresponding sockets or headers.

The connector operates reliably within a wide temperature range from -55°C to +125°C, accommodating demanding industrial environments. Suitable for industrial applications, electronics manufacturing, and prototyping, this connector series integrates effortlessly into commercial and laboratory electronic equipment.

The TSW series from Samtec offers a variety of terminal strip configurations, which include single and double rows, straight and right angle designs, and different plating options. This specific model variant TSW-125-08-L-S-RA is a standard single-row right angle header designed to meet diverse electronic assembly requirements.

Features a 2.54 mm pitch with 25 male contacts in one row. Constructed with glass filled polyester housing for durability. Phosphor bronze contacts plated with gold ensure reliable conductivity. Supports a current rating of 7.6 amps and voltage up to 450V.

Designed with right angle orientation for board-to-board and wire-to-board systems. Termination type is solder with a tail pin length of 2.29 mm. Operating temperature range between -55°C and 125°C for industrial robustness.

Unshrouded connector body allows for easy access and mating flexibility. Explore more high-quality PCB connectors and headers from Samtec and related brands for your electronic assembly needs at EnvMart.
