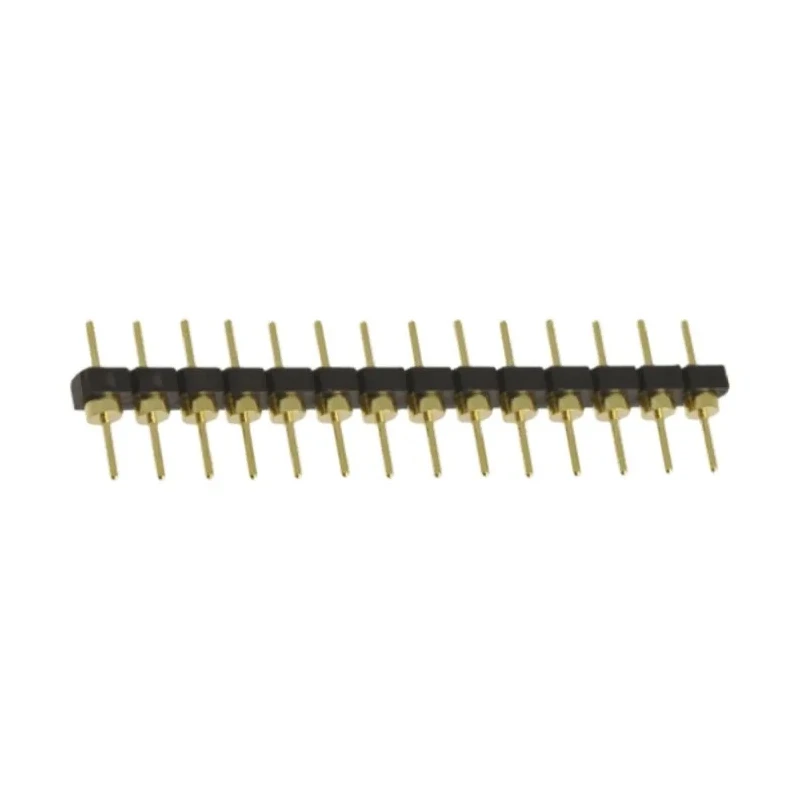

Samtec BBL Series Straight Through Hole Pin Header, 14 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded BBL-114-G-F

The Samtec BBL-114-G-F is a high-quality BBL Series straight through hole pin header designed for reliable board-to-board connections in electronic assemblies. It features 14 contacts aligned in a single row with a pitch of 2.54 mm, providing a compact and efficient interface solution.

This connector employs a durable black glass filled polyester housing material ensuring mechanical strength and thermal stability suitable for applications operating between -55°C and 125°C. The contacts are made from brass with a gold plating thickness of approximately 0.51μm, optimizing electrical conductivity and resistance to corrosion.

The pin header is unshrouded with male contact gender and a tail pin length of 3.18 mm, designed for secure solder termination on printed circuit boards using through hole mounting technology. Its straight orientation supports straightforward PCB integration and assembly.

The low profile machined board stacking design offers a minimal board separation of approximately 3.89 mm when mated with compatible SL series low profile socket strips. This enables high-density stacking and compact electronic module integration often used in industrial electronics, telecommunications, and power connector applications.

Designed for through hole PCB mounting applications. Glass filled polyester housing offers mechanical and thermal resilience. Brass contacts with gold plating ensure reliable electrical performance. Supports operation across a wide temperature range of -55°C to 125°C.

Compatible with SL series and SS series socket strips for versatile use. Single row with 14 contacts and 2.54 mm pitch for standardized connections. 1A current rating per contact suitable for low power signal and control circuits.

Provides durable solder termination with 3.18 mm tail pin length.

This pin header is well-suited for electronics manufacturing, industrial automation, instrumentation, and HVAC systems requiring robust board-to-board interconnect solutions. Explore the Samtec range for complementary connectors and enhance your product designs using reliable components.
