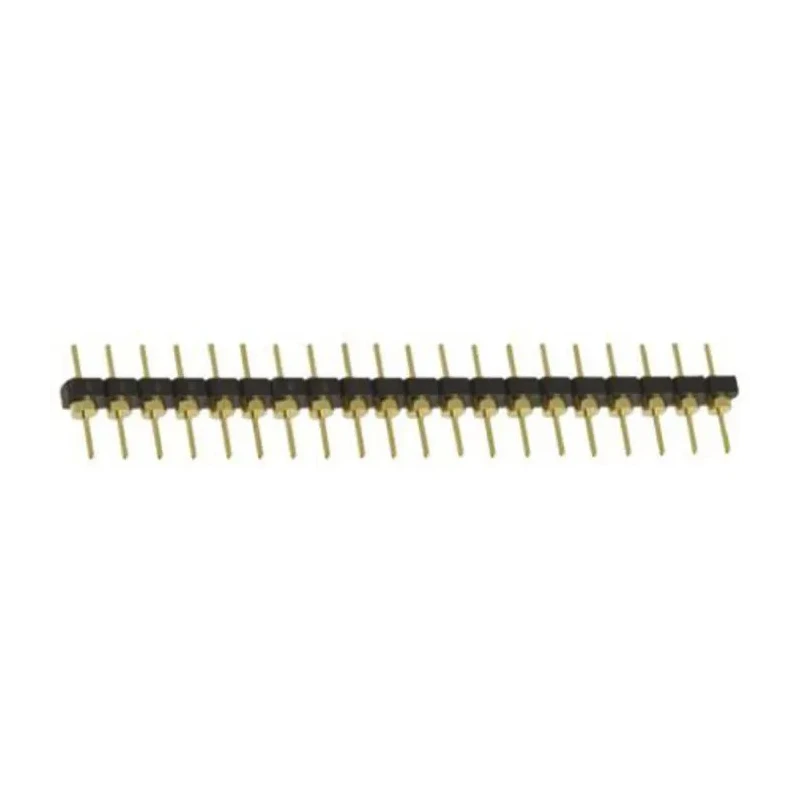

Samtec BBL Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded BBL-120-G-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1A |
| Model | BBL-120-G-F |
| Mount Type | Through Hole |
| Housing Material | Polymer |
| Contact Material | Brass |
| Series | BBL |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.18mm |
| Mating Pin Length | 3.1mm |
| SL series low profile socket strips | see stock number 767-9329 typically |
| SS series socket strips | see stock number 767-9717 typically |
Key Features
- The pin header features 20 contacts arranged in a single row for compact layout.
- It uses a through hole mount type for secure mechanical and electrical connection.
- Contact material is brass with gold plating for enhanced conductivity and corrosion resistance.
- Housing is made of high-quality polymer offering durability and temperature resistance from -55°C to 125°C.
- Suitable for use in low profile 2.54 mm stacking terminal strips applications.
- Tail pin length is 3.18 mm and mating pin length is 3.1 mm for optimal engagement.
- Designed to mate with SL series low profile socket strips and SS series socket strips.
- Low profile design achieves 3.89 mm board spacing when mated, ideal for dense PCB configurations.
Product Description
Samtec BBL-120-G-F is a straight through hole pin header from the BBL series designed for board-to-board connections with a pitch of 2.54 mm and 20 contacts arranged in a single row. The unshrouded, low profile header is engineered to enable compact, high-density PCB stacking and offers reliable mechanical and electrical performance.
The pin header incorporates brass contacts with a 0.51 μm gold plating, optimizing conductivity and corrosion resistance for long-term durability in industrial applications. The housing is constructed from black glass-filled polyester polymer, providing excellent temperature tolerance from -55°C up to 125°C, allowing operation in harsh environments while ensuring mechanical stability.
This through hole mount type header features a 3.18 mm tail pin length and a 3.1 mm mating pin length, designed to interface precisely with compatible socket strips such as the Samtec SL series low profile socket strips and SS series socket strips. When mated with the SL series, the design achieves a low 3.89 mm board spacing, ideal for space-constrained industrial, manufacturing, automation, and electronics assembly applications.
The pin header is suitable for applications requiring compact PCB-to-PCB interconnections with reliable signal integrity. Its gold-plated brass contacts ensure minimal signal loss and robust connectivity. The polymer housing provides mechanical strength and electrical insulation under extended operating temperature ranges.
Commonly used in industrial equipment, electronic assemblies, power connectors, and automation systems. Termination is by soldering, allowing for durable and maintenance-free connections on printed circuit boards. The straight orientation and male contact configuration facilitate straightforward mating with female connectors or sockets.
Set contains one Samtec BBL-120-G-F pin header supplied in a tube, ready for PCB insertion and soldering. This product supports a wide range of board-to-board applications in industrial, electronic, and manufacturing environments.
Explore more Samtec PCB Headers and connectors in the Electronics & Electricals category on EnvMart for your component sourcing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 2.54 mm.
This model features 20 contacts arranged in a single row.
The maximum operating temperature is 125°C.
The contacts are made of brass with gold plating, while the housing is constructed from polymer.
The tail pin length is 3.18 mm.
It is designed to mate with SL series low profile socket strips and SS series socket strips.
The termination type for this pin header is solder.
The current rating is 1A.
The minimum operating temperature is -55°C.
The contact gender is male, and the configuration is straight.
When mated with the SL series, the design achieves a low board spacing of 3.89 mm.
This pin header is suitable for board-to-board applications in industrial, electronic, and manufacturing environments.
