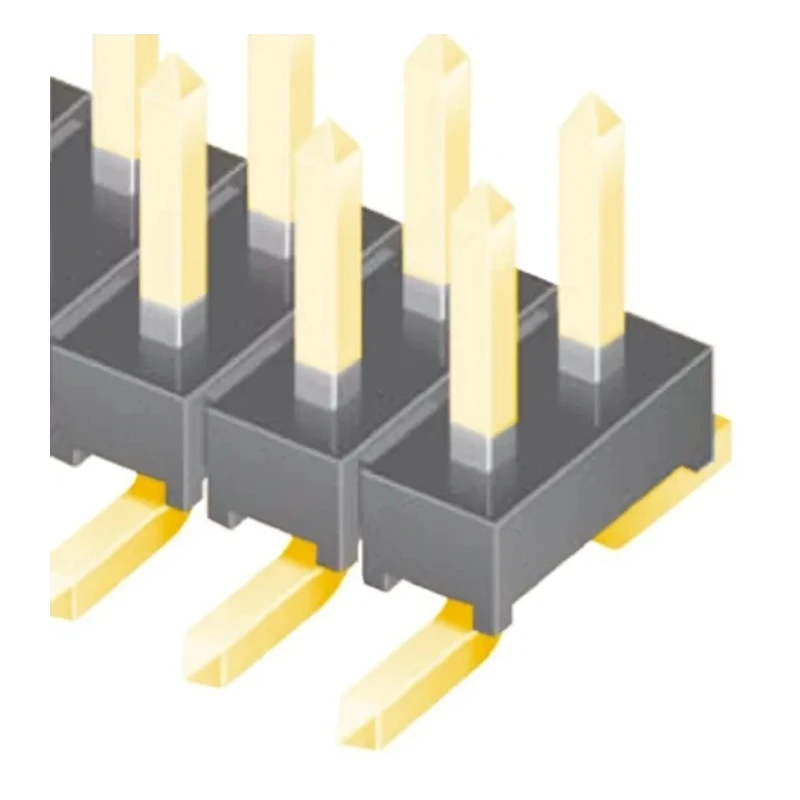

Samtec TMM Series Straight Surface Pin Header 16 Contact 2 mm Pitch 2 Row Unshrouded TMM-108-01-G-D-SM
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Samtec |
| Orientation | Straight |
| Operating Temperature | -55°C to +125°C with Gold |
| Current | 3.9A |
| Model | TMM-108-01-G-D-SM |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TMM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
| Mating Pin Length | 3.2mm |
| Insulator Material | Black LCP |
| TMM-1xx-01-L-x-SM | 0.25μm Gold plated Posts with Tin Plated Tails |
| TMM-1xx-01-G-x-SM | 0.75μm Gold plated Posts with 0.075μm Gold Plated Tails |
Key Features
- Constructed with phosphor bronze contacts plated in gold for corrosion resistance.
- Housing made of black Liquid Crystal Polymer for durability and insulation.
- Supports a current rating of 3.9 A and voltage up to 500 V.
- Designed for surface mount technology with a low profile height of 2.77 mm.
- Operating temperature range from -55°C to +125°C ensuring performance in harsh environments.
- Unshrouded design allowing compatibility with various mating socket series.
- Termination by solder with tail pin length of 3.5 mm for secure PCB connections.
- Male contact gender with 3.2 mm mating pin length optimized for reliable engagement.
Product Description
Samtec TMM-108-01-G-D-SM is a high-quality Straight Surface Pin Header from the TMM Series, offering 16 contacts arranged in 2 rows with a 2 mm pitch. It features a compact low profile of 2.77 mm suitable for SMT applications and provides reliable electrical connections in board-to-board and wire-to-board configurations.
This pin header is constructed with phosphor bronze contacts plated with gold to ensure excellent conductivity and resistance to corrosion. The housing is fabricated from black Liquid Crystal Polymer (LCP), offering high durability and thermal stability.
The component supports a maximum current of 3.9 amperes and a voltage rating of 500 volts, making it suitable for a wide range of electronic applications. Its operating temperature ranges from -55°C to +125°C, enabling use in demanding industrial and commercial environments.
The termination is via solder with 3.5 mm tail pin length, providing secure PCB mounting. Contacts are male and unshrouded, designed to mate with various socket series for flexibility in design.
This pin header is widely used in electronic component manufacturing, industrial automation, and PCB assembly processes where compact, reliable connectors are essential. Phosphor bronze gold plated contacts for durability and conductivity.
Black Liquid Crystal Polymer housing for mechanical strength. 2 mm pitch and 2-row configuration support compact PCB designs. Supports up to 3.9A current and 500V voltage. Operating temperature from -55°C to +125°C suitable for harsh conditions.
Surface mount technology (SMT) with low profile design. Unshrouded male contacts compatible with multiple mating sockets. Solder termination with 3.5 mm tail pin length for secure connection. Explore the comprehensive range of Samtec PCB Headers and connectors at EnvMart for industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Samtec TMM-108-01-G-D-SM pin header supports a maximum current of 3.9 A and a voltage rating of 500 V.
This model operates within a temperature range of -55°C to +125°C, making it suitable for harsh environments.
The contacts are made of phosphor bronze and are plated with gold for corrosion resistance, while the housing is constructed from black Liquid Crystal Polymer (LCP).
The pin header has 16 contacts arranged in 2 rows with a pitch of 2 mm.
It uses solder termination with a tail pin length of 3.5 mm for secure PCB connections.
Yes, this model is designed for surface mount technology (SMT) with a low profile height of 2.77 mm.
The contacts are male, designed for reliable engagement with various mating sockets.
The mounting type for this pin header is surface mount, suitable for compact PCB designs.
The pin header has a low profile height of 2.77 mm, but specific width and depth dimensions are not provided.
This model is widely used in electronic component manufacturing, industrial automation, and PCB assembly processes.
The contacts are gold plated, providing excellent conductivity and resistance to corrosion.
The country of origin for this pin header is India.
