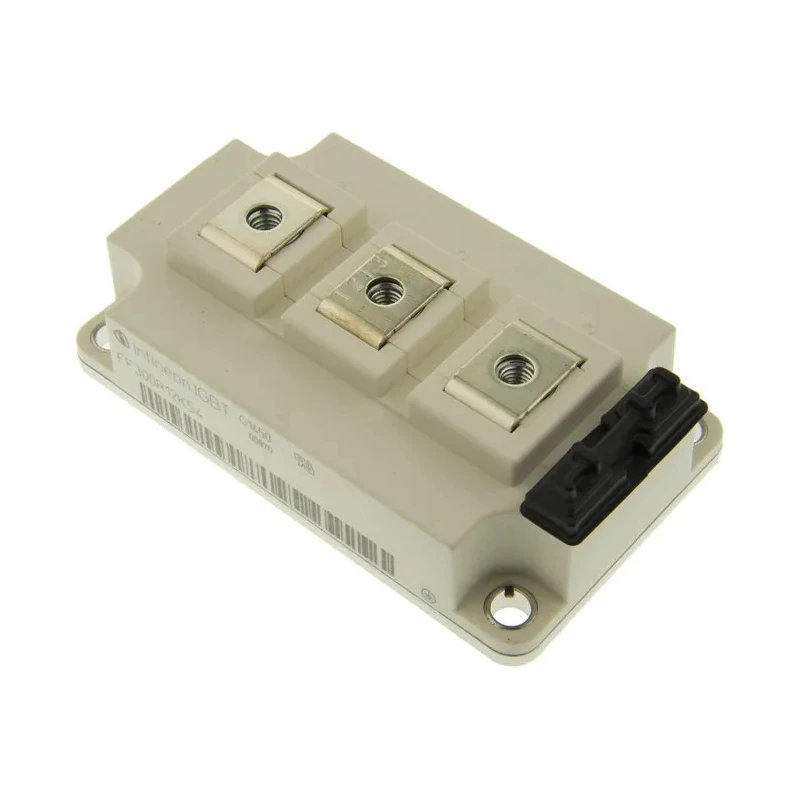

Infineon N-Channel IGBT Module 370 A 1200 V 3-Pin 62 mm Clamp Mount FF300R12KS4HOSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 30.9mm |
| Length | 106.4mm |
| Model | FF300R12KS4HOSA1 |
| Width | 61.4mm |
| Mount Type | Clamp |
| Series | 62_MMC |
| Maximum Operating Temperature | 125°C |
| Package Type | 62 mm Module |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | IEC61140, EN61140 |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 370A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 3.85V |
| Channel Type | N |
| Maximum Power Dissipation Pd | 1950W |
| Maximum Gate Emitter Voltage VGEO | 20 V |
| Package styles include | 62mm Modules, EasyPACK, EconoPACKTM2/EconoPACKTM3/EconoPACKTM4 |
Key Features
- Designed for high efficiency and fast switching applications.
- Supports maximum power dissipation of 1950 W for heavy-duty power management.
- Compact 62 mm module package ensures easy integration in industrial equipment.
- Operates in a temperature range from -40°C to 125°C for robust performance.
- Features 3-pin connection and clamp mounting for secure installation.
- Maximum gate emitter voltage is 20 V, suitable for varied control circuits.
- Module dimensions are 106.4 mm length, 61.4 mm width, and 30.9 mm height.
- Compliant with IEC61140 and EN61140 standards for electrical safety.
Product Description
Infineon FF300R12KS4HOSA1 is a high-performance N-Channel Insulated Gate Bipolar Transistor (IGBT) Module rated for a maximum continuous collector current of 370 A and a collector emitter voltage of 1200 V. This 3-pin module comes in a compact 62 mm clamp mount package, designed to provide reliable and efficient power control in industrial, commercial, and automotive applications.
The module offers a maximum power dissipation of 1950 W and supports a wide operating temperature range from -40°C to 125°C, ensuring stable operation under harsh environments. With a maximum gate emitter voltage of 20 V and a collector emitter saturation voltage of 3.85 V, it is suited for both hard and soft switching in high-frequency applications up to 60 kHz.
Infineon’s IGBT technology combines the advantages of MOSFET gate control with bipolar transistor power capabilities, delivering low switching losses and high switching speeds. The clamp mount design allows for secure and stable installation in power electronic systems such as industrial drives, UPS systems, inverters, and agricultural or commercial vehicles.
The module complies with IEC61140 and EN61140 safety standards and is part of the 62_MMCA series. Package styles span 62 mm modules, EasyPACK, and EconoPACK variants, offering flexible choices for various power management needs.
High efficiency and fast switching suitable for industrial power applications. Compact module size with clamp mounting for easy system integration. Wide temperature operating range and robust electrical characteristics. Multiple package styles available to meet diverse application requirements.
Compliant with relevant IEC and EN standards ensuring safety and reliability.
This IGBT module is a critical component for power electronics in laboratory, industrial automation, manufacturing, HVAC, and automotive sectors. Enhance your power management and control systems with Infineon quality and innovation. Explore more IGBT Modules and semiconductor components in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Infineon N-Channel IGBT Module has a maximum continuous collector current of 370 A.
This IGBT module supports a maximum collector emitter voltage of 1200 V.
It has a maximum power dissipation rating of 1950 W, suitable for heavy-duty power management applications.
The module dimensions are 106.4 mm in length, 61.4 mm in width, and 30.9 mm in height.
It operates within a temperature range from -40°C to 125°C, allowing for robust performance in various environments.
This model features a clamp mount design for secure installation in power electronic systems.
The maximum gate emitter voltage for this module is 20 V, making it suitable for various control circuits.
It complies with IEC61140 and EN61140 standards for electrical safety.
Package styles include 62 mm modules, EasyPACK, and EconoPACK variants, providing flexibility for different applications.
The collector emitter saturation voltage is rated at 3.85 V.
It is suitable for industrial, commercial, and automotive applications, particularly in power control systems.
This model features a 3-pin connection for easy integration into various systems.
