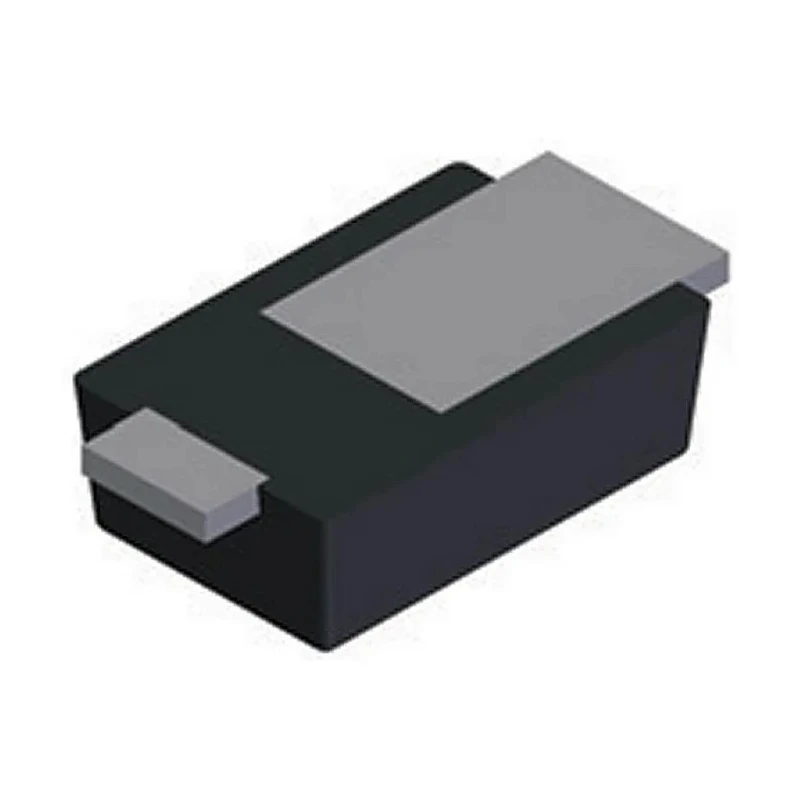

DiodesZetex 30 V 2 A Schottky Diode PowerDI323 Mount Surface PD3S230H-7

DiodesZetex PD3S230H-7 Schottky Diode PowerDI323 is a high-performance surface mount diode designed for efficient power rectification in industrial, automotive, and electronics applications. It is a single diode configuration featuring Schottky barrier technology, which offers significantly lower forward voltage drops compared to conventional silicon diodes, improving system efficiency and reducing heat dissipation.

This diode supports a maximum continuous forward current of 2 amperes and withstands peak reverse repetitive voltages up to 30 volts, making it suitable for low-voltage power conversion, voltage clamping, and protective circuits in power supply designs. The device can operate in extreme temperature environments from -65°C to +150°C, supporting use in harsh automotive and industrial settings.

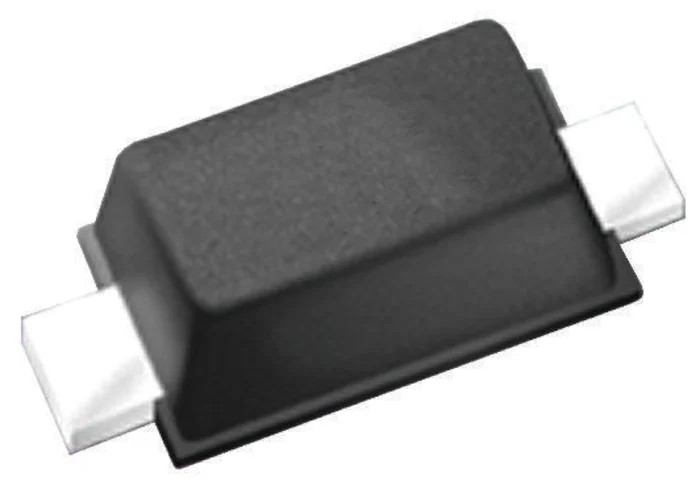

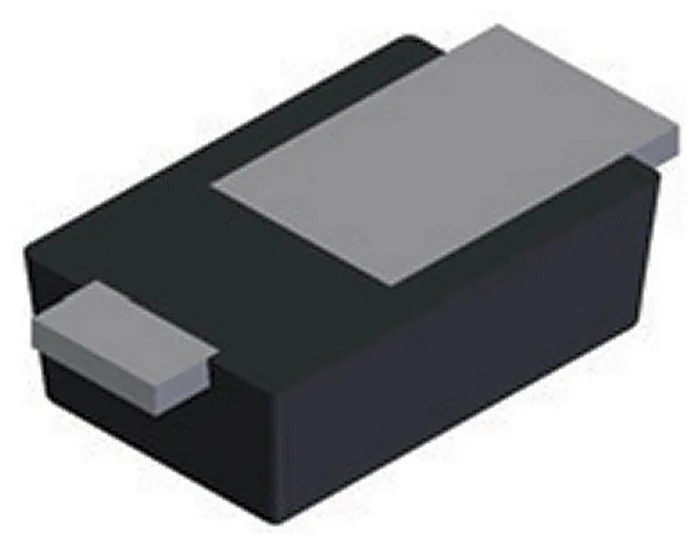

The compact PowerDI323 package measures just 1.95 mm in length, 1.3 mm in width, and 0.7 mm in height, optimized for surface mounting on densely packed printed circuit boards. With a maximum forward voltage of 600 mV at rated current, it delivers improved efficiency for applications requiring low power loss during rectification.

Quality and reliability are assured by compliance with the stringent AEC-Q101 automotive standard, enabling this diode to be deployed in automotive electronics requiring high durability. The peak non-repetitive forward surge capability of 30 A allows it to tolerate transient currents during switching events or startup conditions.

Typical applications include power supplies, DC/DC converters, battery management systems, solar panel arrays, and RF shielding circuits. Its robust design and thermal stability provide long service life and dependable performance in industrial, laboratory, automotive, and manufacturing systems.

Features a low forward voltage making it ideal for efficient rectification. Has a maximum continuous forward current rating of 2 amperes. Peak reverse repetitive voltage of 30 volts ensures robust performance in switching applications.

Compact dimensions with 1.95 mm length and 0.7 mm height for space-efficient PCB layout. Operates reliably between -65°C to 150°C temperature range. Complies with automotive standard AEC-Q101 for automotive grade applications.

Designed as a single Schottky barrier-type diode for low forward voltage drop. Capable of handling peak non-repetitive forward surge current up to 30 amperes. Package type PowerDI323 supports surface mounting for automated assembly.
