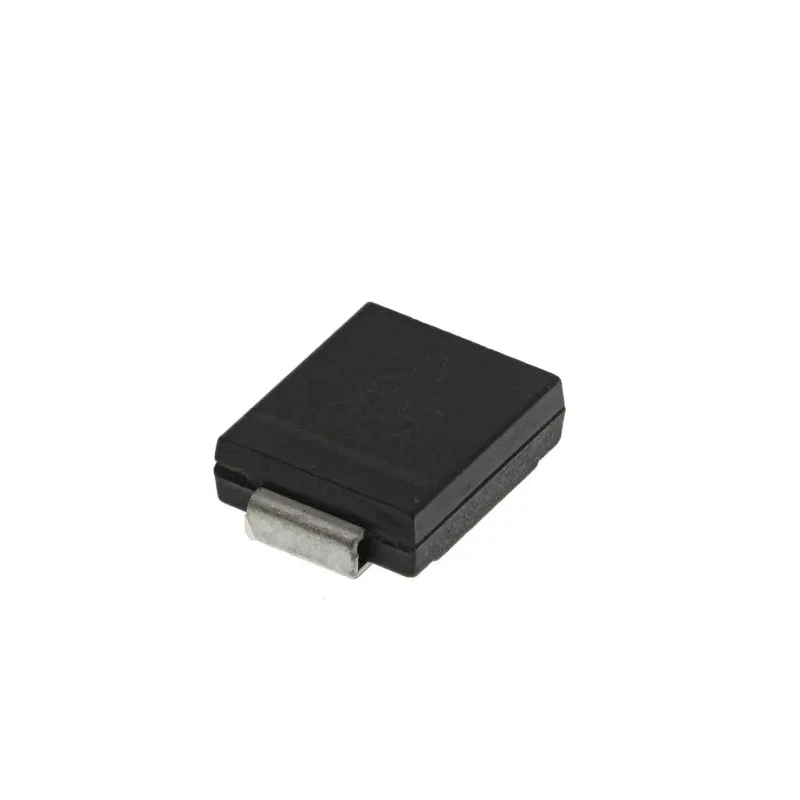

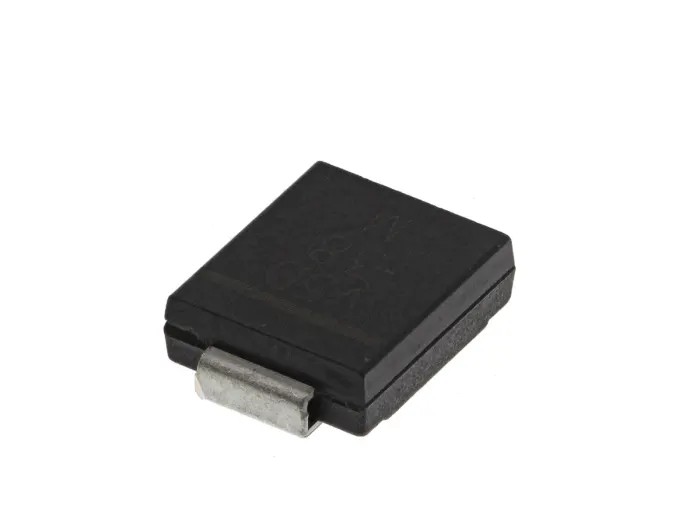

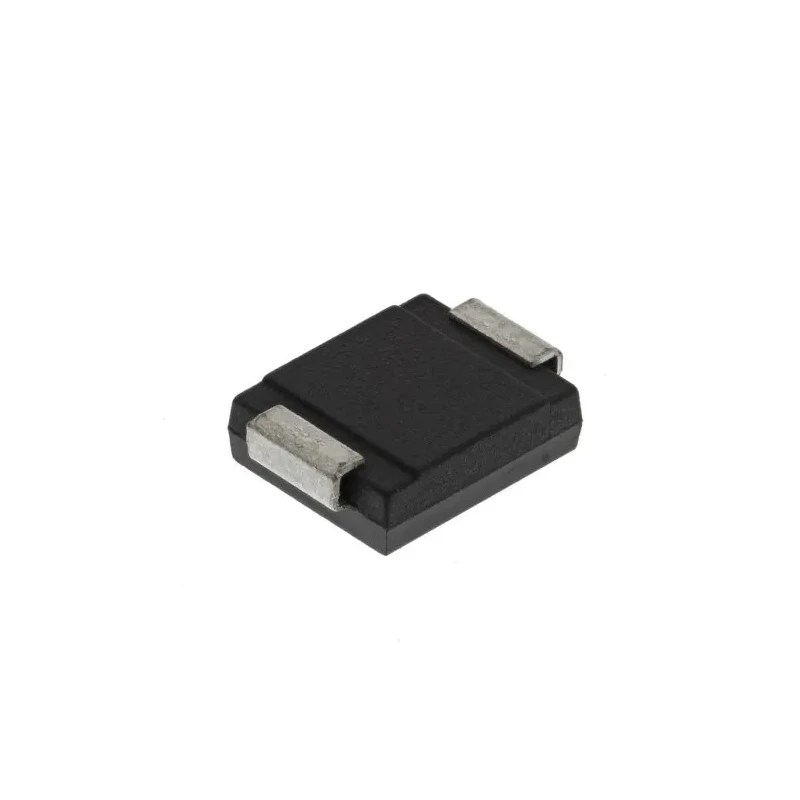

Vishay 200 V 5 A Surface Mount Trench MOS Barrier Schottky Diode 2-Pin DO-214AB VSSC520S-M3/9AT
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 2.42mm |
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | VSSC520S-M3/9AT |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 25mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 1.7V |
Key Features
- Features patented trench MOS barrier structure ensuring fast switching speeds and low forward voltage drop.
- Maximum forward voltage of 1.7 V optimizes efficiency in power applications.
- Minimum operating temperature of -40°C and maximum operating temperature of 150°C ensure reliability in harsh environments.
- Suitable for efficient AC/DC switched mode power supplies and DC/DC converter circuits.
- Peak reverse repetitive voltage rating of 200 V enhances blocking capabilities.
- Peak non-repetitive surge current of 100 A supports transient load handling.
- Single diode configuration with 2 pins allows easy surface mounting on PCBs.
- Manufactured in China and designed for industrial and commercial semiconductor applications.
Product Description
Vishay VSSC520S-M3/9AT is a Trench MOS Barrier Schottky (TMBS) diode designed for high efficiency and fast switching in industrial semiconductor circuits. This surface mount device is enclosed in a DO-214AB (SMC) package, measuring 7.11 mm in length and 6.22 mm in width, with a diameter and height of 2.42 mm respectively.
The device features a patented trench MOS barrier structure that reduces minority carrier injection effects, resulting in minimized stored charges and improved switching speeds. It operates reliably within a temperature range from -40°C to 150°C, making it suitable for demanding environments.
With a maximum continuous forward current of 5 A and a peak reverse repetitive voltage rating of 200 V, the diode is optimized for power supply circuits including AC/DC switched mode power supplies and DC/DC converters. Its low forward voltage drop of 1.7 V enhances overall power efficiency.
The peak non-repetitive forward surge current of 100 A allows the device to handle transient overloads robustly. The single diode configuration with two pins simplifies PCB mounting and circuit integration.
Features patented trench MOS barrier structure ensuring fast switching speeds and low forward voltage drop. Maximum forward voltage of 1.7 V optimizes efficiency in power applications. Minimum operating temperature of -40°C and maximum operating temperature of 150°C ensure reliability in harsh environments.
Compact dimensions allow for space-efficient PCB layout. Suitable for efficient AC/DC switched mode power supplies and DC/DC converter circuits. Peak reverse repetitive voltage rating of 200 V enhances blocking capabilities.
Peak non-repetitive surge current of 100 A supports transient load handling. Single diode configuration with 2-pin surface mount package. Reliable performance for industrial, commercial, and laboratory semiconductor circuits.
Explore the comprehensive range of Vishay diodes and rectifiers on EnvMart for all your semiconductor application needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay VSSC520S-M3/9AT is 5 A.
This model has a peak reverse repetitive voltage rating of 200 V, enhancing its blocking capabilities.
The maximum forward voltage drop for this diode is 1.7 V, which optimizes efficiency in power applications.
It operates reliably within a temperature range of -40°C to 150°C, making it suitable for harsh environments.
The diode is enclosed in a DO-214AB (SMC) package, which is suitable for surface mounting.
The maximum peak non-repetitive forward surge current for this model is 100 A, allowing it to handle transient overloads.
The dimensions of the Vishay VSSC520S-M3/9AT are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
This model features a single diode configuration with 2 pins for easy surface mounting on PCBs.
It is a Schottky diode, specifically a Trench MOS Barrier Schottky (TMBS) diode designed for high efficiency and fast switching.
This diode is suitable for efficient AC/DC switched mode power supplies and DC/DC converter circuits.
The peak reverse current for the Vishay VSSC520S-M3/9AT is 25 mA.
This diode is manufactured in China.
