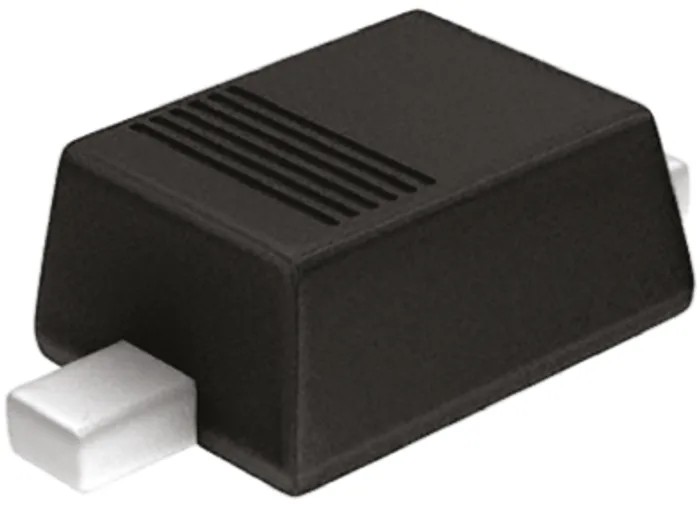

Taiwan Semiconductor 60 V 1 A Schottky Diode 2-Pin Sub SMA SS16L
Specifications
| Country of Origin | China |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 1.43mm |
| Length | 2.9mm |
| Model | SS16L |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | SS16L |
| Maximum Operating Temperature | 150°C |
| Package Type | Sub SMA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 6mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 700mV |
Key Features
- Offers low forward voltage drop for high efficiency.
- Capable of continuous forward current of 1 ampere.
- Compact Sub SMA package with dimensions 2.9mm length, 1.9mm width, and 1.43mm height.
- Wide operating temperature range from -55°C to 150°C for reliable performance.
- Peak non-repetitive forward surge current capacity of 30 amperes.
- Maximum forward voltage of 700 mV ensuring low power loss.
- Designed for single diode configuration with 2 pins.
- Peak reverse repetitive voltage rating of 60 volts suitable for applications with moderate voltage needs.
Product Description
Taiwan Semiconductor SS16L Schottky Diode is a discrete semiconductor designed for efficient power rectification in electronics and electrical applications. With a peak repetitive reverse voltage of 60 V and a continuous forward current rating of 1 A, this diode delivers low forward voltage drop and high current handling capability while maintaining thermal stability in a compact Sub SMA package.
This diode is surface mount technology (SMT) compatible, ideal for modern PCB assemblies where space saving and electrical efficiency are critical. Its thermal performance is supported by operation range from -55°C to 150°C, suitable for industrial, automotive non-critical, and consumer electronics applications.
The SS16L features a peak non-repetitive forward surge current of 30 A allowing short high current pulses without damage. Its maximum forward voltage of 700 mV minimizes energy losses in power conversion circuits. The 2-pin single diode configuration makes it straightforward to integrate into rectifier and switching circuits.
This component lacks formal standards or automotive certifications but is manufactured in China under the Taiwan Semiconductor brand, ensuring quality and reliability consistent with industry expectations.
Applications include power supply rectification, voltage clamping, reverse polarity protection, and freewheeling diodes in DC motors and switching regulators. Offers low forward voltage drop for high efficiency. Capable of continuous forward current of 1 ampere.
Compact Sub SMA package with dimensions 2.9mm length, 1.9mm width, and 1.43mm height. Wide operating temperature range from -55°C to 150°C for reliable performance. Peak non-repetitive forward surge current capacity of 30 amperes.
Maximum forward voltage of 700 mV ensuring low power loss. Designed for single diode configuration with 2 pins. Peak reverse repetitive voltage rating of 60 volts suitable for applications with moderate voltage needs. Explore more semiconductor components and Schottky diode solutions through EnvMart to meet your industrial, laboratory, electronics manufacturing, and repair needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SS16L diode has a maximum continuous forward current rating of 1 ampere.
It has a peak reverse repetitive voltage rating of 60 volts, suitable for moderate voltage applications.
The Sub SMA package of this model measures 2.9mm in length, 1.9mm in width, and 1.43mm in height.
This diode operates within a temperature range of -55°C to 150°C.
The maximum forward voltage drop is 700 mV, which helps minimize power loss.
The SS16L diode can handle a peak non-repetitive forward surge current of 30 amperes.
It is designed for a single diode configuration with 2 pins.
This model supports surface mount technology (SMT), making it suitable for modern PCB assemblies.
The peak reverse current rating is 6 mA.
Applications include power supply rectification, voltage clamping, reverse polarity protection, and freewheeling diodes in DC motors and switching regulators.
The SS16L diode is manufactured in China.
This diode belongs to the SS16L series.
