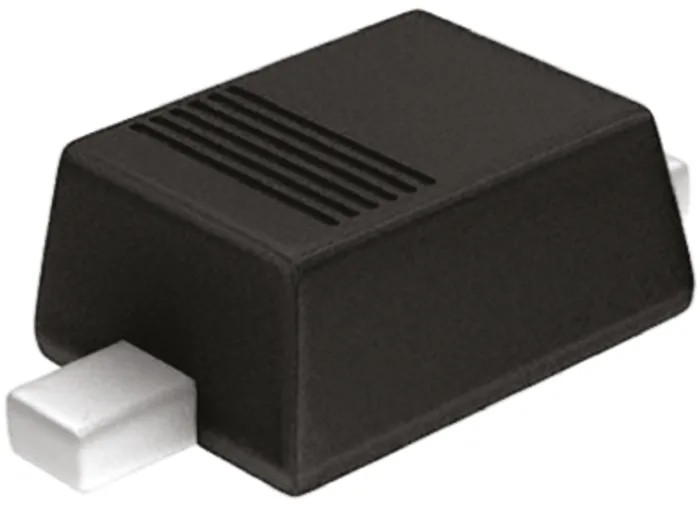

Taiwan Semiconductor Schottky Diode 60 V 1 A 2-Pin Sub SMA SS16L

Taiwan Semiconductor SS16L is a high-performance Schottky diode designed for applications requiring low forward voltage drop and high current capability. Featuring a 2-pin Sub SMA surface mount package, this diode supports a maximum continuous forward current of 1 ampere and withstands peak reverse voltages up to 60 volts. The device offers low power loss due to its 700 mV maximum forward voltage, making it suitable for efficient power rectification in commercial and industrial electronic circuits.

With a broad operating temperature range from -55°C to 150°C, the SS16L diode is reliable under harsh thermal conditions commonly found in industrial and telecommunications equipment. It also supports high surge currents up to 30 amperes, which protects circuits during unexpected transient events.

Measuring only 2.9 mm in length, 1.9 mm in width, and 1.43 mm in height, this compact diode fits well in space-constrained PCB layouts. The single diode configuration and a pin count of two enable straightforward implementation in power management and rectification circuits.

Its surface mount design optimizes automated assembly processes, enhancing production efficiency across a range of applications, including power supplies, battery chargers, and voltage clamping circuits in industrial, electronics manufacturing, and telecommunications sectors.

Surface mount package type suitable for compact PCB designs. Maximum continuous forward current of 1 ampere ensures reliable performance. Peak reverse repetitive voltage of 60 volts provides robust voltage handling. Low forward voltage drop of 700 mV reduces power losses.

Operating temperature range from -55°C to 150°C supports wide industrial applications. Peak non-repetitive forward surge current of 30 amperes allows handling transient currents. Compact dimensions: length 2.9 mm, width 1.9 mm, height 1.43 mm.

Single diode configuration with 2 pins in a Schottky rectifier type. Manufactured in China following standard semiconductor quality controls. Explore the full range of Taiwan Semiconductor devices and related Schottky diode technology at EnvMart to find solutions tailored to your industrial and electronics design needs.
