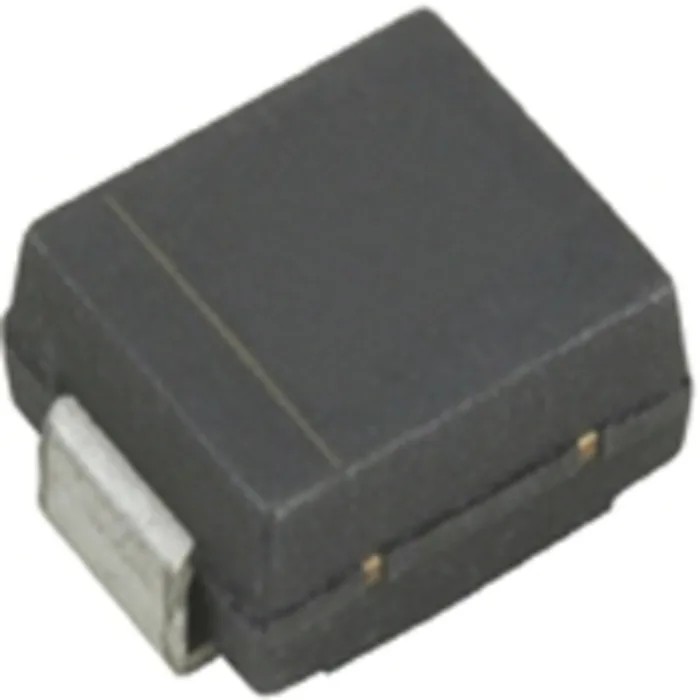

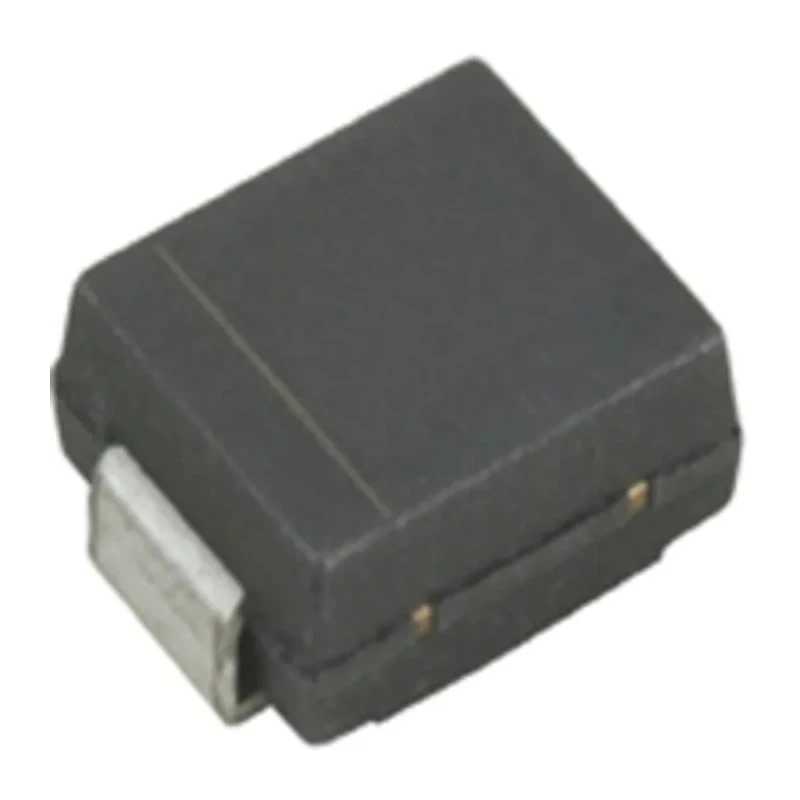

Taiwan Semiconductor 40 V 8 A Surface Mount Schottky Diode DO-214AB 2-Pin SK84C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SK84C |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | SK84C |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 15mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 550mV |
Key Features
- Supports a maximum continuous forward current of 8 amperes.
- Features a peak reverse repetitive voltage rating of 40 volts.
- Constructed with a 2-pin, single diode configuration in a DO-214AB (SMC) package.
- Operates within a temperature range from -55°C to 150°C ensuring reliability under varying conditions.
- Has a maximum forward voltage drop of 550 millivolts to reduce power losses.
- Equipped with a peak non-repetitive forward surge current of 150 amperes.
- Compact dimensions with length 7.11 mm, width 6.22 mm, and height 2.42 mm.
- Manufactured in China, complying with standard industrial requirements.
Product Description
Taiwan Semiconductor SK84C is a high-performance Schottky diode designed for surface mount applications in power conversion, rectification, and electronic circuits requiring low forward voltage drop and high current handling capacity. Featuring a DO-214AB (SMC) package with 2-pin configuration, this diode ensures efficient power transfer and minimal energy loss.
With a maximum continuous forward current of 8 amperes and a peak reverse repetitive voltage of 40 volts, the SK84C can operate reliably in demanding industrial and commercial electronic equipment. It maintains stable operation across a broad temperature spectrum from -55°C to +150°C, making it suitable for diverse environments including automotive, power supplies, and consumer electronics.
The device’s maximum forward voltage of 550 millivolts facilitates low power dissipation and improved efficiency in circuits. It also supports a peak non-repetitive forward surge current of up to 150 amperes to withstand transient conditions. Physical dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height offer a compact footprint for space-constrained PCB layouts.
Manufactured in China, the SK84C diode does not carry automotive or other special certifications but meets standard industry practices for discrete semiconductors. Ideal for use in industrial power management, switching power supplies, rectifiers, and electronic devices requiring robust diode performance.
Supports a maximum continuous forward current of 8 amperes. Peak reverse repetitive voltage rating of 40 volts for reliable operation. Compact DO-214AB (SMC) 2-pin surface mount package. Operates from -55°C to +150°C for temperature resilience.
Maximum forward voltage drop of 550 millivolts to reduce conduction losses. Peak surge current capacity of 150 amperes for transient tolerance. Compact dimensions allow for efficient PCB assembly. Manufactured in China adhering to standard semiconductor quality.
This Schottky diode is suited for applications in electronics assembly, power supplies, industrial equipment, and automotive electronics. It is a reliable choice for customers seeking robust functionality and surface mount convenience. Explore more components in the Schottky Diodes & Rectifiers category on EnvMart for complementary parts.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SK84C diode supports a maximum continuous forward current of 8 amperes.
It features a peak reverse repetitive voltage rating of 40 volts.
This model has compact dimensions of 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
It operates within a temperature range from -55°C to 150°C, ensuring reliability under varying conditions.
The maximum forward voltage drop is 550 millivolts, which helps reduce power losses.
The SK84C can handle a peak non-repetitive forward surge current of up to 150 amperes.
It is constructed in a DO-214AB (SMC) package with a 2-pin configuration.
This model is a Schottky rectifier, designed for efficient power conversion and low forward voltage drop.
The peak reverse current is rated at 15 milliamperes.
It is suitable for applications in power supplies, industrial equipment, and automotive electronics.
The SK84C diode is manufactured in China, adhering to standard industrial requirements.
It features a single diode configuration, making it suitable for various electronic circuits.
