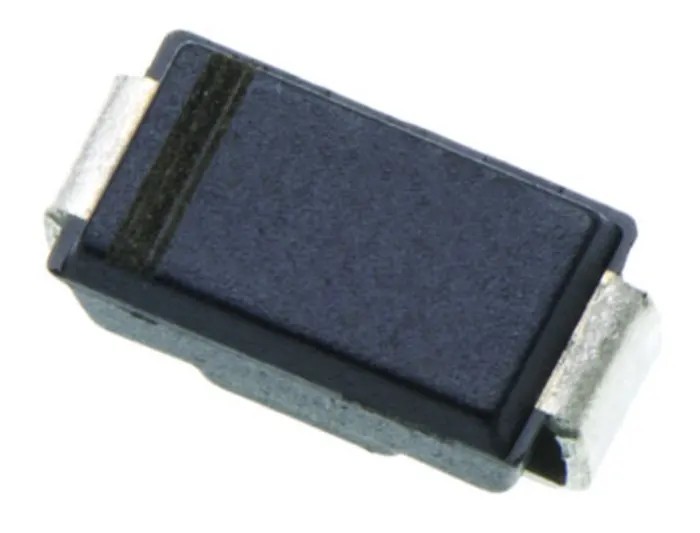

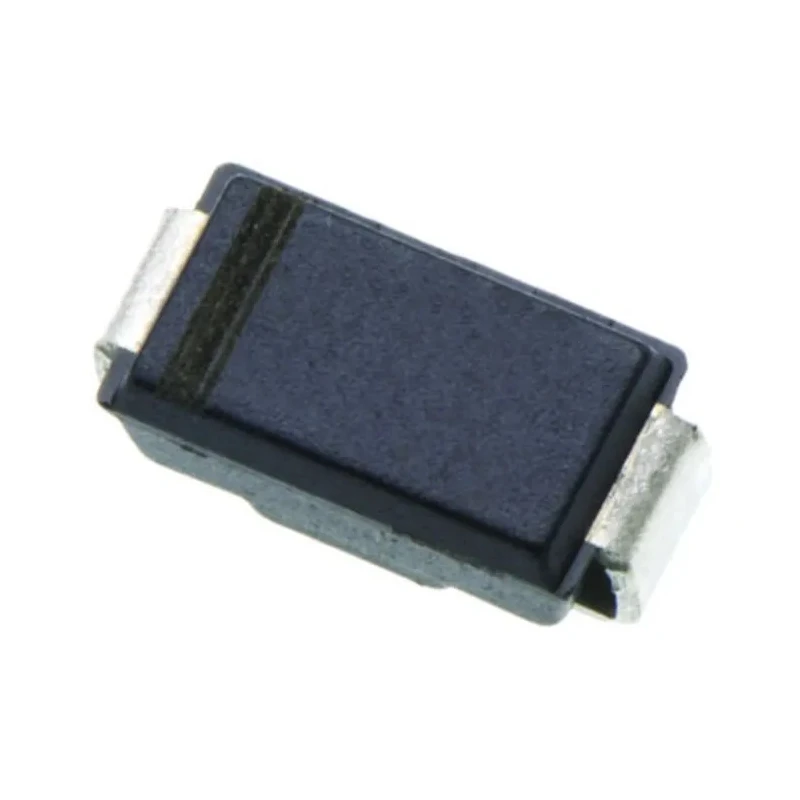

Taiwan Semiconductor 30 V 1 A Surface Mount Schottky Diode DO-214AC SS13 R3
Specifications
| Country of Origin | China |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.3mm |
| Length | 4.6mm |
| Model | SS13 R3 |
| Width | 2.83mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AC (SMA) |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 500mV |
Key Features
- Surface mount DO-214AC (SMA) package ensures easy PCB assembly.
- Maximum continuous forward current of 1 ampere for reliable power handling.
- Peak reverse voltage rating of 30 volts for robust operation.
- Low forward voltage drop of 500 millivolts minimizes power loss.
- Operates effectively within -65°C to 125°C temperature range.
- Peak non-repetitive forward surge current of 30 amperes supports transient loads.
- Compact dimensions with length 4.6 mm, width 2.83 mm, and height 2.3 mm.
- Single diode configuration suitable for Schottky rectifier applications.
Product Description
Taiwan Semiconductor SS13 R3 is a high-performance Schottky Barrier Diode in a compact DO-214AC (SMA) surface mount package, rated for 30 V and continuous forward current of 1 A. It features a low forward voltage drop of 500 mV ensuring efficient power conversion with minimal losses.
This diode is designed for a variety of industrial and electronic applications requiring fast switching, energy efficiency, and thermal stability. It supports a broad operating temperature range from -65°C to 125°C and can withstand peak non-repetitive surge currents up to 30 A.
The compact size with dimensions of 4.6 mm length, 2.83 mm width, and 2.3 mm height enables space-saving PCB layouts for power management circuits. Its 2-pin single diode configuration is ideal for use in Schottky rectifiers, power supplies, voltage clamping, and free-wheeling diode roles in industrial and commercial electronics.
With a peak reverse voltage rating of 30 V and low leakage current of 10 mA at peak reverse voltage, this diode ensures reliable protection and rectification in semiconductor circuits.
Surface mount package type DO-214AC (SMA) for automated assembly. Maximum continuous forward current of 1 A for power handling. 30 V peak repetitive reverse voltage for robust circuit performance. Low forward voltage of 500 mV for energy efficient operation.
Wide operating temperature range from -65°C to 125°C suits harsh environments. Supports peak surge currents up to 30 A for transient conditions. Compact physical dimensions for efficient PCB space utilization. Manufactured in China ensuring consistent quality.
This Taiwan Semiconductor SS13 R3 Schottky diode is engineered for industrial, electronic components, power management circuits, and semiconductor applications where energy efficiency and fast recovery are critical.
Explore the broad range of Schottky diodes and rectifiers in the EnvMart catalog to find suitable components for your design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
