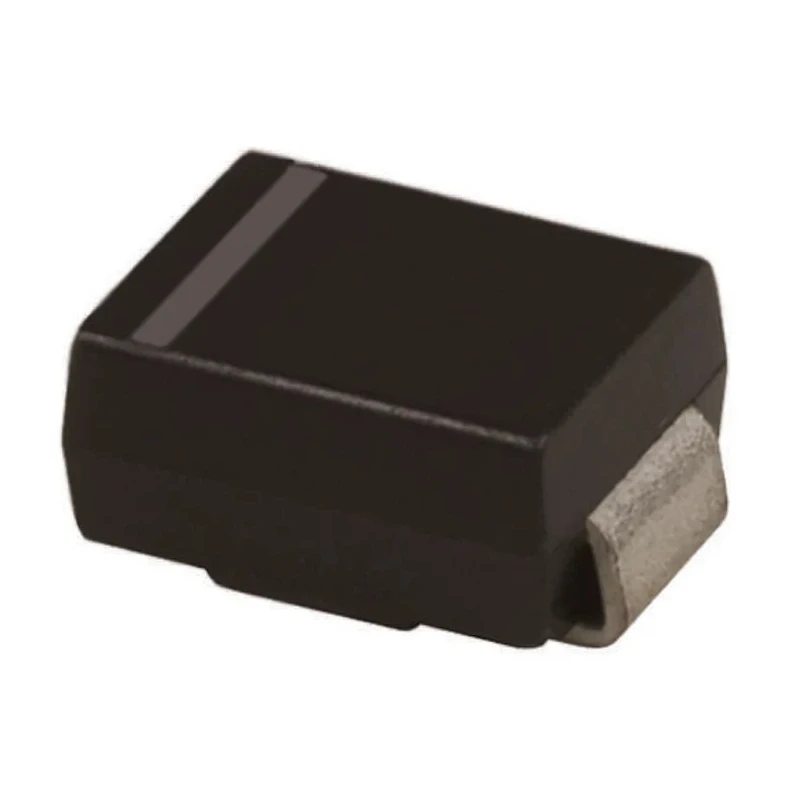

Taiwan Semiconductor 40 V 5 A Surface Mount Schottky Diode DO-214AA SK54B R4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.41mm |
| Length | 4.75mm |
| Model | SK54B R4 |
| Width | 3.73mm |
| Mount Type | Surface |
| Series | SK54B |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 550mV |
Key Features
- Features a single diode configuration for reliable rectifier operation.
- Maximum continuous forward current of 5 A suitable for power applications.
- Peak reverse repetitive voltage rated at 40 V ensures robust blocking capability.
- Low forward voltage drop of 550 mV reduces power dissipation.
- Compact DO-214AA surface mount package with dimensions 4.75 mm length, 3.73 mm width, and 2.41 mm height.
- Operates reliably between -55°C to 150°C for industrial and commercial environments.
- Peak non-repetitive forward surge current of 120 A for transient overload tolerance.
- Pin count is 2 for simple integration in circuitry.
Product Description
Taiwan Semiconductor SK54B R4 is a high-performance Schottky diode designed for surface mount assembly in DO-214AA package. Rated for 40 V reverse voltage and 5 A continuous current, it is ideal for low power loss and high current capability applications.
This diode features a single diode configuration optimized for fast switching and low forward voltage drop of 550 mV, improving overall circuit efficiency and thermal management. Its compact dimensions of 4.75 mm length, 3.73 mm width, and 2.41 mm height fit modern high-density PCB designs.
The SK54B R4 supports a wide operating temperature range from -55°C minimum to 150°C maximum, making it suitable for industrial, electronic, power management, and general semiconductor applications. Peak non-repetitive surge current capability of 120 A ensures durability against transient power surges.
The device has 2 pins and uses a surface mount DO-214AA package that facilitates efficient PCB layout with reliable mechanical stability and electrical connections. The absence of automotive compliance standards indicates it is primarily suited for standard industrial and commercial electronics use cases.
Manufactured in China, this Taiwan Semiconductor diode is part of the SK54B series Schottky barrier rectifiers known for their low forward voltage and high efficiency in semiconductor circuits.
Single diode Schottky configuration. 5 A continuous forward current rating. 40 V peak reverse voltage rating. DO-214AA surface mount package. Operating temperature range: -55°C to 150°C. Peak forward surge current: 120 A.
Compact dimensions suitable for circuit integration. Low forward voltage drop of 550 mV. Package contains 1 diode with 2 pins. Manufactured in China and used in electronics and semiconductor applications. Explore more semiconductor and Schottky diode products in the Electronics & Electricals category at EnvMart for reliable industrial and electronic component sourcing.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 5 A, making it suitable for power applications.
This diode has a peak reverse repetitive voltage rating of 40 V, ensuring robust blocking capability in circuits.
The dimensions of the DO-214AA package are 4.75 mm in length, 3.73 mm in width, and 2.41 mm in height.
The forward voltage drop for this model is 550 mV, which helps reduce power dissipation in applications.
The peak non-repetitive forward surge current rating for this diode is 120 A, providing tolerance against transient overloads.
This model operates reliably between -55°C and 150°C, making it suitable for various industrial and commercial environments.
The SK54B R4 features a pin count of 2, allowing for simple integration into circuitry.
This diode uses a single diode configuration optimized for reliable rectifier operation.
The peak reverse current for this model is rated at 20 mA.
This Schottky diode is manufactured in China.
This model is suitable for use in industrial, electronic, power management, and general semiconductor applications.
This diode is part of the SK54B series of Schottky barrier rectifiers, known for their low forward voltage and high efficiency.
