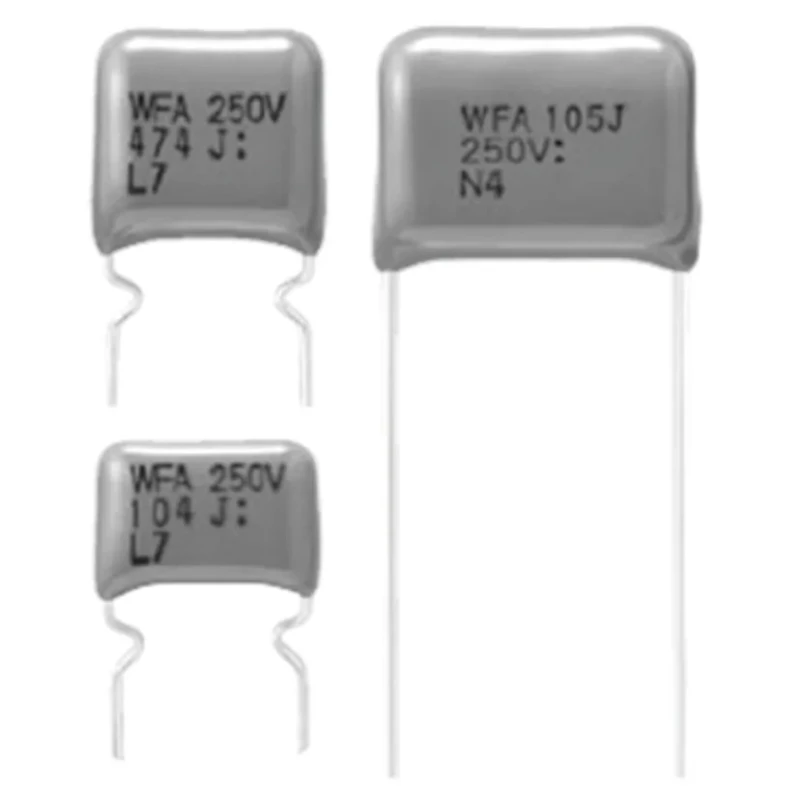

Panasonic ECWF2334JAQ ECWF(A) Metallised Polypropylene Film Capacitor, 330 nF, ±5% Tolerance, 250 V dc, Through Hole Mount
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 20.9mm |
| Length | 13mm |
| Model | ECWF2334JAQ |
| Packaging | Bag |
| Width | 7.3mm |
| Mount Type | Through Hole |
| Series | ECWF(A) |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 330nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Dissipation Factor | 0.1% |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 726-9994PBrand: PanasonicManufacturers Part No.: ECWF2334JAQ |
| Rated DC Voltage | 250V dc |
| Lead Pitch | 10mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 |
Key Features
- This capacitor utilizes metallised polypropylene film technology offering low loss and low noise performance.
- It features ±5% tolerance for reliable capacitance stability.
- The through hole mounting type allows for secure PCB installation with 10 mm lead pitch.
- Designed to operate in temperatures ranging from -40°C to 105°C, suitable for demanding environments.
- Encapsulated in self-extinguishing UL94V-0 rated material for safety and durability.
- Complies with automotive standard AEC-Q200, CSA, EN, and UL approvals for quality assurance.
- Compact dimensions of 20.9 mm height, 13 mm length, and 7.3 mm width conserve PCB space.
- Ideal for use in high current circuits, high frequency applications, and active filter circuits operating up to 250 V dc.
Product Description
Panasonic ECWF2334JAQ ECWF(A) series metallised polypropylene film capacitor features a capacitance of 330 nF with ±5% tolerance, designed specifically for high current and high frequency electronic circuits. Rated at 250 V dc, this through hole mount capacitor offers excellent frequency characteristics and reduced hum noise, making it suitable for demanding power and signal processing applications.
The capacitor is housed in a compact powder resin coated casing, measuring 20.9 mm in height, 13 mm in length, and 7.3 mm in width, ensuring space-efficient PCB layouts. It operates reliably in temperatures from -40°C up to 105°C, encapsulated in a self-extinguishing UL94V-0 material that meets stringent safety requirements.
Designed to meet automotive standard AEC-Q200 along with CSA E60384-14, EN 60384-14, and UL 60384-14 certifications, it ensures robust performance and compliance in industrial, automotive, and high reliability environments.
Ideal applications include 250 V dc and 630 V dc high frequency and high current circuits, as well as 450 V dc active filter circuits. The 10 mm lead pitch and through hole terminal type provide secure and stable mounting on PCBs.
This capacitor offers low loss and low noise performance for enhanced signal integrity. Compact size reduces PCB footprint by approximately 50% compared to other Panasonic series. Conforms to automotive and international safety standards for demanding applications.
Self-extinguishing material enhances operational safety in varied industrial settings. Suitable for power electronics, filtering, and audio frequency applications where stable capacitance is critical.
Explore Panasonic Film Capacitors on EnvMart for reliable and efficient electronic component solutions across industrial, automotive, consumer electronics, and communication sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 330 nF with a tolerance of ±5%.
It can operate at a maximum temperature of 105°C.
The rated DC voltage for this capacitor is 250 V dc.
This capacitor has dimensions of 20.9 mm in height, 13 mm in length, and 7.3 mm in width.
It features a through hole mounting type, allowing for secure installation on PCBs.
The lead pitch for this capacitor is 10 mm.
It complies with the automotive standard AEC-Q200.
The minimum operating temperature is -40°C.
The dissipation factor for this capacitor is 0.1%.
It is encapsulated in a self-extinguishing UL94V-0 rated material for safety.
It is suitable for high current circuits, high frequency applications, and active filter circuits.
The country of origin for this capacitor is India.
