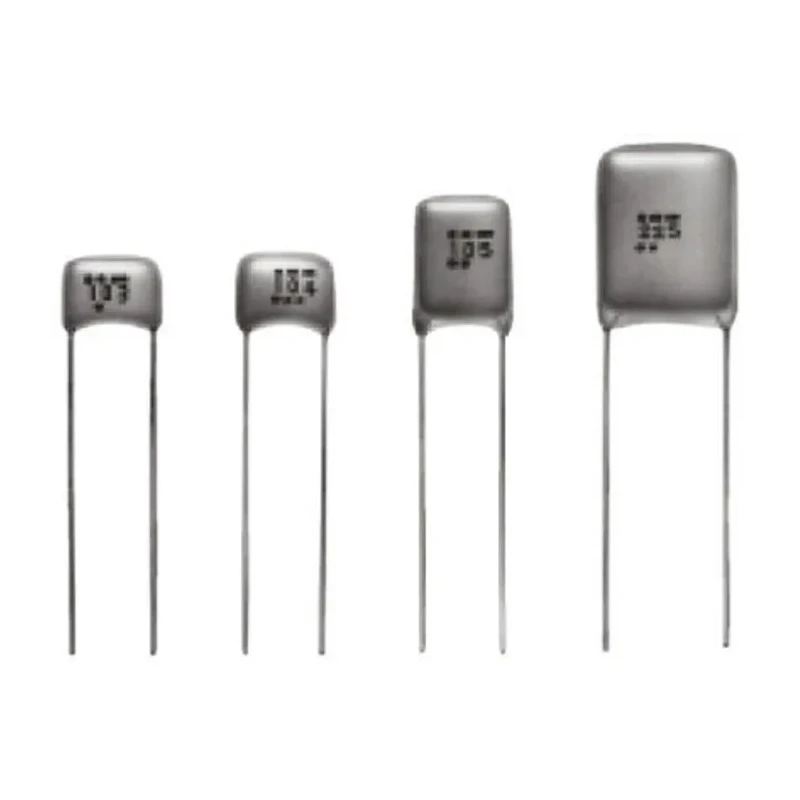

Panasonic ECWF(L) Film Capacitor, ±5 % Tolerance, 470 nF Capacitance, 630 V DC Rated Voltage, Through Hole Mount ECWF6474JL
Specifications
| Country of Origin | China |
|---|---|
| Brand | Panasonic |
| Height | 20.1mm |
| Length | 20.5mm |
| Model | ECWF6474JL |
| Packaging | Bag |
| Width | 13.5mm |
| Mount Type | Through Hole |
| Series | ECWF(L) |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 470nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Typical Application | Protection circuit in SMPS and Active filter circuits |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 17.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Metallised polypropylene radial film capacitor suitable for high frequency circuits.
- Capacitance tolerance is ±5% ensuring precise performance.
- Through-hole mounting with 17.5mm lead pitch for secure PCB integration.
- Operating temperature range from -40°C up to 105°C for robust thermal stability.
- Encapsulated in self-extinguishing material compliant with UL94V-0 for enhanced safety.
- Complies with automotive standard AEC-Q200 for reliability in automotive applications.
- Typical use includes protection circuits in switch mode power supplies and active filter circuits.
Product Description
Panasonic ECWF6474JL is a metallised polypropylene radial film capacitor with a capacitance of 470 nF and a ±5% tolerance, rated for 630 V DC. It features through-hole mounting with a lead pitch of 17.5 mm, making it suitable for durable PCB assembly in industrial electronics.
Designed for high frequency and high current stress circuits, this capacitor offers low loss and low noise characteristics essential for sensitive electronic applications. It operates reliably within a broad temperature range from -40°C to 105°C and is encapsulated in a self-extinguishing UL94V-0 compliant material to enhance fire safety standards.
The ECWF6474JL complies with international standards EN 60384-14, UL 60384-14, and CSA E60384-14, and meets automotive standard AEC-Q200, making it suitable for demanding automotive and industrial environments.
Typical applications include protection circuits in switch mode power supplies (SMPS) and active filter circuits where stable capacitance and reliability are critical. The compact form factor with dimensions 20.5mm x 20.1mm x 13.5mm and 0.8mm lead diameter facilitates integration in space-constrained designs.
Metallised polypropylene radial film capacitor ideal for high frequency use. ±5% capacitance tolerance for precise performance in circuits. Through-hole mounting with 17.5mm lead pitch for stable soldering. Robust operating temperature range from -40°C to 105°C.
Encapsulated in UL94V-0 rated self-extinguishing material for safety. Conforms to automotive standard AEC-Q200 ensuring durability in vehicles. Applications include SMPS protection and active filter circuits. Compact dimensions of length 20.5mm, height 20.1mm, and width 13.5mm.
This Panasonic ECWF(L) film capacitor is a dependable choice for engineers needing a sturdy capacitor for industrial, automotive, and commercial electronic circuit designs. Discover more high-quality Film Capacitors in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 470 nF with a tolerance of ±5%.
It is rated for a DC voltage of 630 V.
The dimensions are 20.5 mm in length, 20.1 mm in height, and 13.5 mm in width.
The lead pitch is 17.5 mm, facilitating stable soldering during PCB assembly.
It operates reliably within a temperature range of -40°C to 105°C.
This capacitor features through-hole mounting, making it suitable for durable PCB integration.
It complies with the automotive standard AEC-Q200, ensuring reliability in automotive applications.
Typical applications include protection circuits in switch mode power supplies and active filter circuits.
The terminal type is through-hole, with a lead diameter of 0.8 mm.
It is encapsulated in a self-extinguishing material compliant with UL94V-0 for enhanced safety.
It complies with international standards EN 60384-14, UL 60384-14, and CSA E60384-14.
The country of origin for this capacitor is China.
