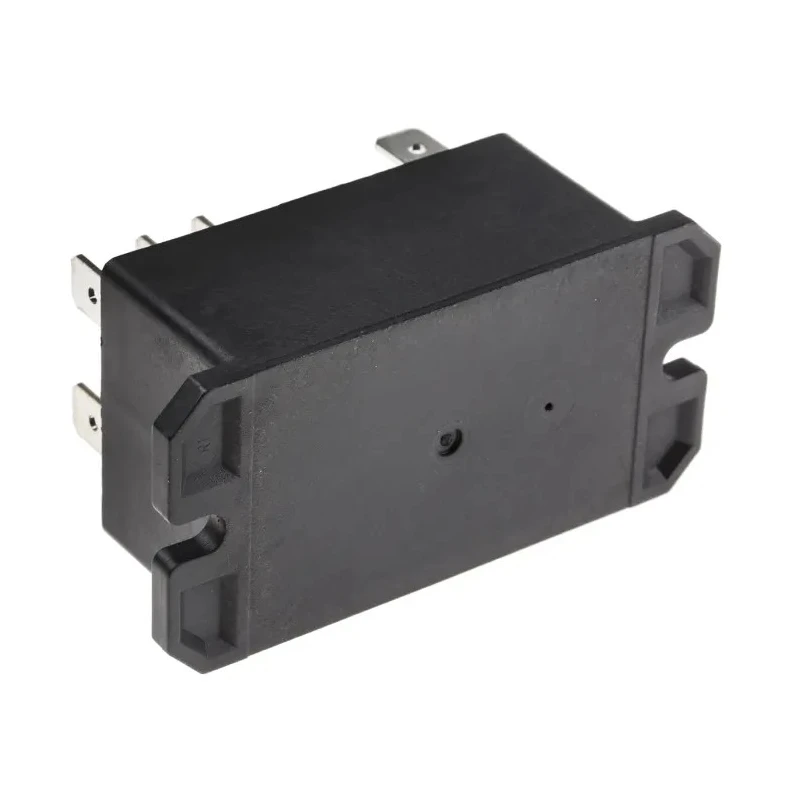

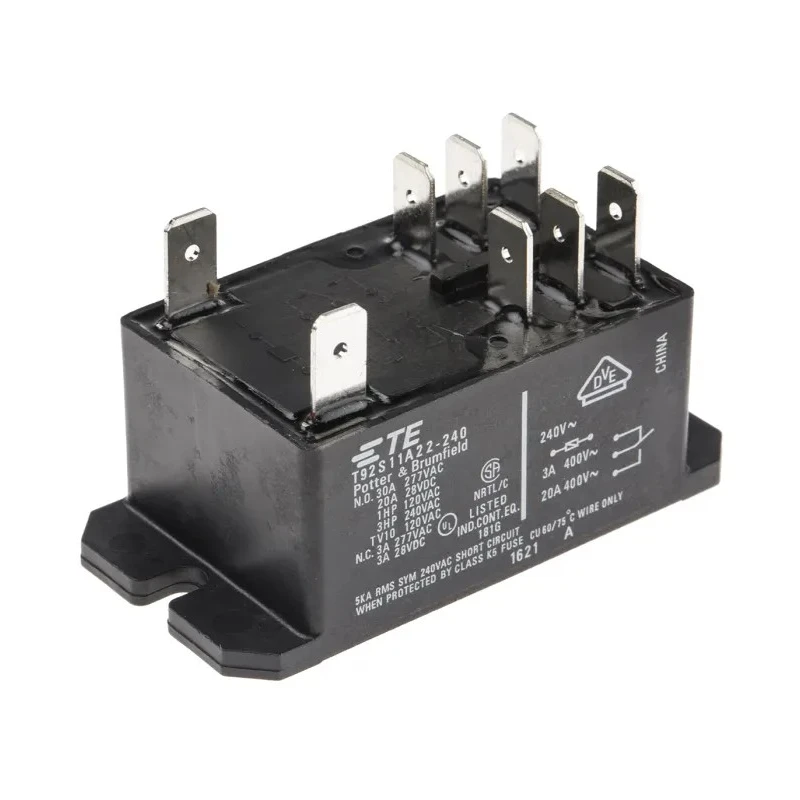

TE Connectivity Panel Power Relay 230V ac Coil 30A Switching Current DPDT T92S11A22-240 8-1393211-7

TE Connectivity T92S11A22-240 8-1393211-7 is a high-quality panel power relay designed for industrial and commercial applications where reliable control of high current loads is needed. It features a 230V AC coil voltage and a double-pole double-throw (DPDT) contact configuration, enabling it to manage multiple circuits simultaneously.

This relay is designed specifically for panel mounting and includes quick connect terminals to facilitate easy installation and maintenance. It can switch AC voltages up to 600V and handle switching currents as high as 30A, making it suitable for controlling motors, compressors, and other heavy electrical loads.

The device operates effectively over a wide temperature range from -45°C to 85°C, ensuring resilience under harsh industrial conditions. It employs durable silver alloy contacts, providing excellent conductivity and resistance to wear. The coil has a resistance of 3.8kΩ and consumes 4 VA power during operation.

Built with a compact form factor measuring 52.3mm in length, 34.5mm in width, and 30.7mm in height, this relay complies with UL 873 and UL 508 spacing requirements, CSA certification, and VDE standards, underlining its safety and reliability credentials.

Typical applications include HVAC systems, industrial automation panels, and control panels where dependable switching of compressor loads and motors is critical. It conforms to VDE 0435, 0631, and 0700 standards and UL Class F insulation system for coil construction.

Designed for panel mounting with quick connect terminals for ease of installation. Dual-pole double-throw configuration allows control of two separate circuits. Silver alloy contacts ensure low contact resistance and high durability.

Wide operating temperature range supports diverse environmental conditions. Conforms to international standards including UL, CSA, and VDE. Suitable for controlling compressor loads up to 3.5 tons and 25.3 FLA. Compact dimensions optimize space usage within control panels.
