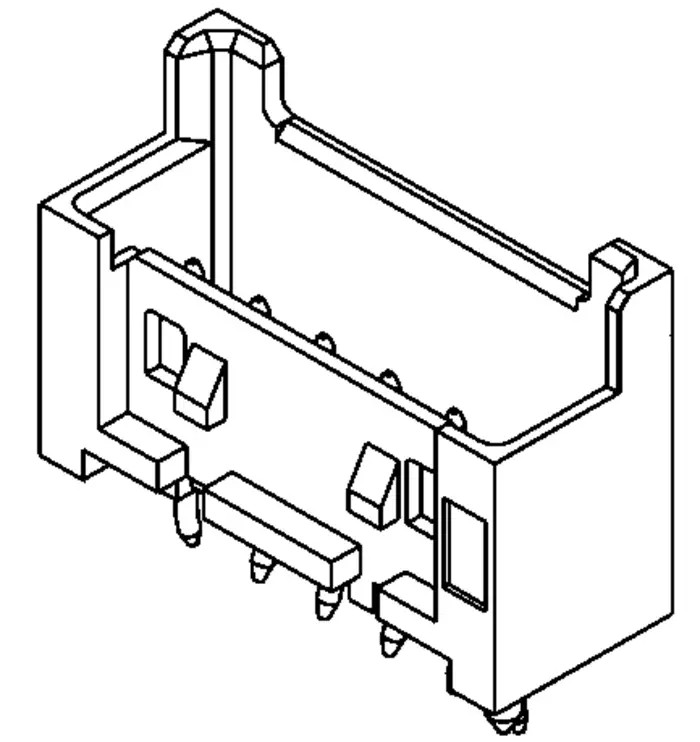

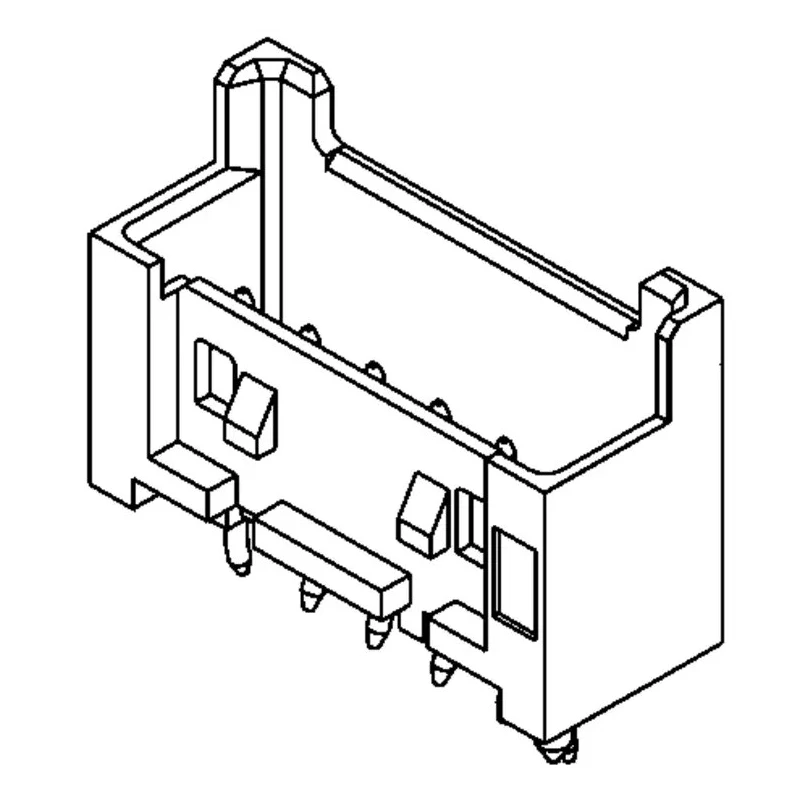

Molex Mini-Lock Series Straight Through Hole PCB Header 8 Contacts 2.5 mm Pitch 1 Row Shrouded 53375-0810
Specifications
| Country of Origin | Korea |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
| Series | Mini-Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-6410PBrand: MolexManufacturers Part No.: 53375-0810 |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.4mm |
Key Features
- Designed for secure wire-to-board connections with positive or friction lock housings.
- Features a 2.5 mm pitch and 1 row of straight male contacts.
- Made with durable polyester housing material for electrical insulation.
- Contact material is phosphor bronze with tin plating for reliable conductivity.
- Operates safely up to 250 V and 3 A current rating.
- Shrouded design provides protection and guides terminal mating.
- Kinked PC tails enhance secure retention on PCB through-hole mounting.
- Suitable for operating temperatures ranging from -40°C to 105°C.
Product Description
Molex 53375-0810 Mini-Lock Series Straight Through Hole PCB Header is a reliable electronic connector designed for secure wire-to-board applications. It features 8 male contacts aligned in a single row with a 2.5 mm pitch, housed in a durable polyester shrouded body that guides and protects terminals during mating. This PCB header is engineered for through-hole mounting, ensuring strong mechanical retention and stable electrical connections on circuit boards.
The contacts are crafted from phosphor bronze and plated with tin to provide excellent conductivity and corrosion resistance. Its kinked PC tails offer enhanced retention on the PCB to prevent dislodgement from vibration or handling. This connector supports a voltage rating of 250 V and current rating of 3 A, suitable for a wide range of power and signal applications.
Designed for harsh environments, this header operates within a wide temperature range of -40°C to 105°C, ensuring performance reliability in demanding industrial, electronic manufacturing, automotive, and telecommunications use cases. The mini-lock series allows mating with compatible housings from the 51103 series for wire-to-board or wire-to-wire connection systems.
This component is manufactured in the Republic of Korea, adhering to quality standards though no specific certifications are listed. It provides a compact, robust solution for printed circuit board assembly requiring secure electrical and mechanical connections.
Secure wire-to-board Mini-Lock connector design with positive or friction lock housings. Durable polyester housing with shrouded design protects terminals and improves alignment. Phosphor bronze contacts with tin plating ensure reliable electrical performance.
Rated for 3 A current and 250 V voltage in through-hole mount configuration. Wide operating temperature range from -40°C to 105°C for industrial-grade applications. Kinked PC tails enhance solder retention and mechanical stability on PCB.
Standard 2.5 mm pitch with 8 contacts in a single row layout. Ideal for electronic equipment, power connector assemblies, and PCB manufacturing. Explore our extensive category to find compatible connectors, headers, and other PCB components tailored to your application needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a voltage of 250 V and a current of 3 A.
It features a pitch of 2.5 mm and has 8 male contacts arranged in a single row.
The housing is made of durable polyester, while the contacts are crafted from phosphor bronze with tin plating.
It operates within a temperature range of -40°C to 105°C, making it suitable for harsh environments.
This model is designed for through-hole mounting, ensuring strong mechanical retention on circuit boards.
Yes, it has a shrouded design that protects the terminals and aids in proper alignment during mating.
It uses a solder termination type for secure electrical connections.
The tail pin length is 3.4 mm, enhancing retention on the PCB.
This header is part of the Mini-Lock series and is compatible with housings from the 51103 series for wire-to-board or wire-to-wire connections.
The contacts are oriented straight, facilitating easy insertion into the PCB.
This component is manufactured in the Republic of Korea.
It is suitable for a wide range of applications including industrial, electronic manufacturing, automotive, and telecommunications.
