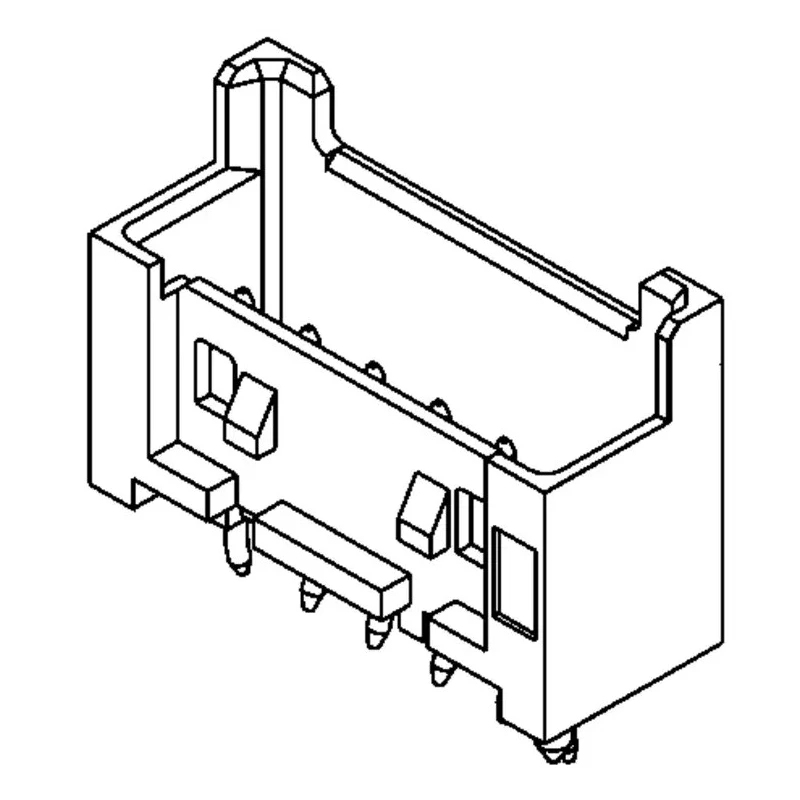

Molex Mini-Lock Series Straight Through Hole PCB Header 10 Contacts 2.5 mm Pitch 1 Row Shrouded 53375-1010

Molex 53375-1010 Mini-Lock Series Straight Through Hole PCB Header offers a high-quality wire-to-board connector solution designed for improved mechanical retention and electrical performance. This product features 10 male contacts arranged in a single row with a 2.5 mm pitch.

The connector housing is made of durable polyester material, shrouded to protect contacts and improve mating reliability with compatible housings such as the Molex 51103 Series. The contacts are phosphor bronze with tin plating, rated to carry up to 3 amperes of current at a voltage of 250V, suitable for various electronic and power connector uses.

Operating temperature range spans from -40°C to 105°C, ensuring dependable performance in demanding environments. The kinked tail pin design at 3.4 mm length secures soldered connections firmly to the PCB, minimizing stress and movement during vibration or handling.

This PCB header is ideally used in industrial electronics, power supply units, automation equipment, and other applications requiring wire-to-board connector reliability. Its through-hole mounting and high wall design assist in correct terminal guidance and positive friction lock housing acceptance.

This component is manufactured in Republic of Korea, maintaining high standards of quality compliance while not bearing any explicit standards/approvals certifications. This header features a shrouded design for enhanced terminal protection.

It has a single row with 10 male contacts designed for through-hole mounting. Constructed with polyester housing and phosphor bronze contacts plated with tin. Rated for 3A current and 250V voltage operating between -40°C to 105°C.

The kinked PC tail pins of 3.4 mm length ensure secure retention on the PCB. Compatible with Molex 51103 Series housings providing positive lock connections. Ideal for electronic and power connector applications requiring robust PCB connections.
