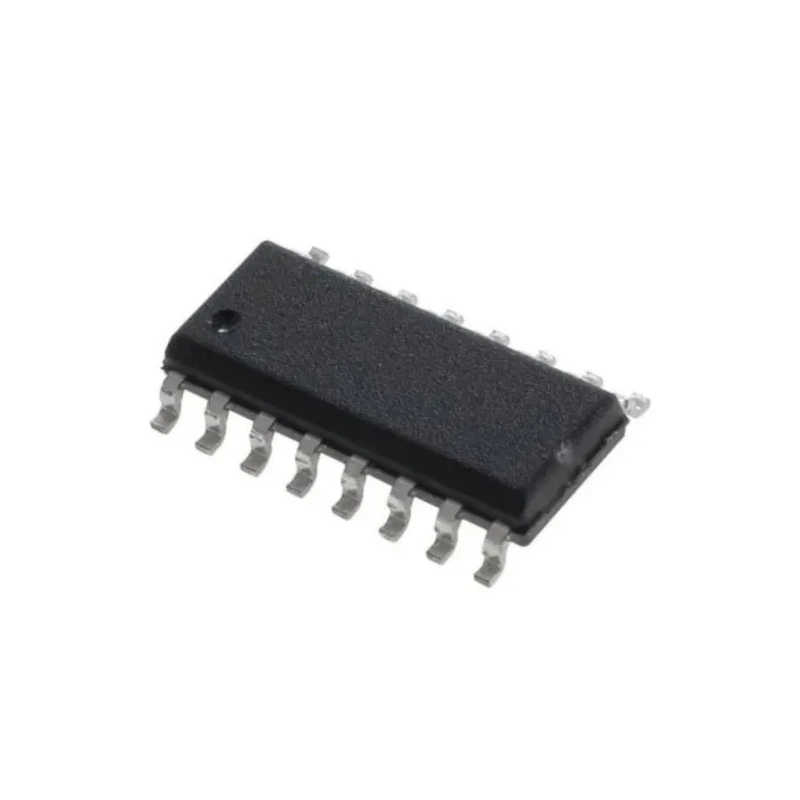

Vishay Analogue Switch, 4 CMOS Quad SPST, 16-Pin SOIC DG212BDY-T1-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG212BDY-T1-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG212B |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-4780PBrand: VishayManufacturers Part No.: DG212BDY-T1-E3 |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 22V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -22V |
| Maximum On State Resistance | 200Ω |
Key Features
- Supports CMOS and TTL logic families ensuring broad controller compatibility.
- Four independent single-pole single-throw (SPST) switching elements per chip.
- Operates over a bipolar supply voltage range of -22V to 22V.
- Maximum on-state resistance is 200 ohms, providing stable signal attenuation.
- Wide operating temperature range from -40°C to 85°C for diverse industrial environments.
- Surface-mount package designed for efficient PCB integration and automated assembly.
- Ideal for multiplexing audio and analogue sensor lines in mixed-signal systems.
- Applicable for signal gating in laboratory measurement and instrumentation equipment.
Product Description
Vishay DG212BDY-T1-E3 analogue switch is a high-performance, 16-pin SOIC surface-mount device that integrates four independent CMOS quad SPST switches in a single chip, making it an excellent choice for multiplexer and demultiplexer applications in electronic systems.
This device is designed to route analogue signals efficiently in mixed-signal controllers with CMOS and TTL logic compatibility, supporting input voltages ranging from -22V to 22V. It offers reliable operation across a broad temperature spectrum from -40°C up to 85°C, suitable for standard industrial environments.
The switch features a maximum on-state resistance of 200 ohms, ensuring predictable signal attenuation, and compact dimensions (length 10mm, width 4mm, height 1.55mm) for seamless PCB integration via surface mount technology.
Typical applications include multiplexing audio and analogue sensor inputs, signal gating in laboratory instruments, and instrumentation routing tasks requiring precise analogue signal control. The DG212BDY-T1-E3 also excels in scenarios demanding multiple switches in compact surface-mount designs for automated assembly processes.
Supports CMOS and TTL logic for broad controller compatibility. Four independent channels deliver compact signal routing. Handles ±22V supplies enabling wide input/output range. Maximum on-resistance of 200Ω for predictable signal attenuation.
Rated for operation from -40°C to 85°C for varied environments. 16-pin SOIC surface-mount package for efficient PCB integration. Ideal for multiplexing audio and analogue sensor lines. Used with mixed-signal controllers requiring CMOS/TTL interface.
Appropriate for compact surface-mount designs needing multiple switches.
This analogue switch series meets RoHS compliance and is well-suited for applications in industrial automation, laboratory instrumentation, consumer electronics, and telecommunications. With its surface-mount form factor and reliable specifications, the DG212BDY-T1-E3 provides an optimal solution for designers requiring flexible and compact Analogue Switching components.
Explore the full range of Vishay semiconductor components at EnvMart for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the DG212BDY-T1-E3 is 22V, allowing it to handle a wide input/output range.
This analogue switch operates within a temperature range of -40°C to 85°C, making it suitable for various industrial environments.
The DG212BDY-T1-E3 features four independent single-pole single-throw (SPST) switching elements per chip.
The maximum on-state resistance of this model is 200 ohms, which provides stable signal attenuation.
This model supports both CMOS and TTL logic families, ensuring broad compatibility with various controllers.
The dimensions of this analogue switch are 10mm in length, 4mm in width, and 1.55mm in height.
The DG212BDY-T1-E3 comes in a 16-pin SOIC surface-mount package, designed for efficient PCB integration.
This model is ideal for multiplexing audio and analogue sensor lines, as well as signal gating in laboratory measurement and instrumentation equipment.
Yes, this analogue switch meets RoHS compliance, making it suitable for environmentally conscious applications.
The DG212BDY-T1-E3 is designed for surface mounting, facilitating automated assembly and efficient PCB integration.
This analogue switch has a total of 16 pins, allowing for multiple connections in electronic circuits.
The DG212BDY-T1-E3 is part of the DG212B series of analogue switches from Vishay.
