Nexperia Analogue Switch 4 CMOS Quad SPST 14-Pin VQFN 2-6V Operating Voltage 74HC4066BQ,115

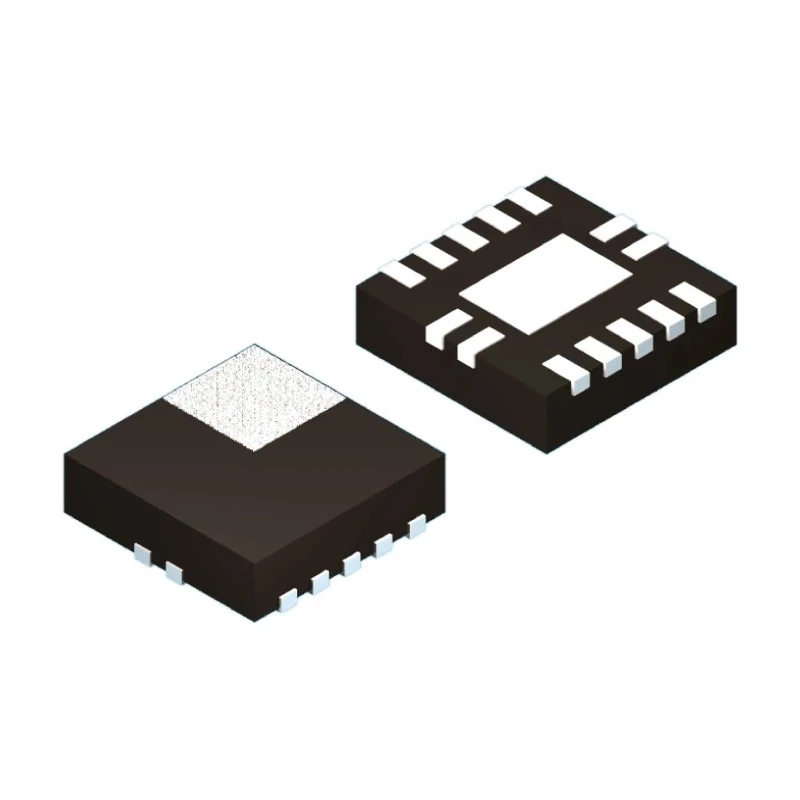

Nexperia 74HC4066BQ,115 Analogue Switch is a CMOS-based 4-element quad single-pole single-throw (SPST) analogue switch delivered in a compact 14-Pin VQFN surface mount package. Operating voltage ranges from 2V to 6V, this device is engineered to provide high-speed and low-power operation with a maximum on-state resistance of 142 ohms.

The device features four independent CMOS switches integrated on one chip, capable of handling analogue and digital signals. It offers robust performance within an operating temperature window of -40°C to 125°C, making it suitable for industrial and commercial electronic applications requiring reliable signal routing.

Its small form factor with dimensions 3.1mm by 2.6mm and a package height of 950 micrometers allows for space-saving PCB designs. The surface mount VQFN package type facilitates modern manufacturing and assembly processes.

This product is part of the Nexperia 74HC family of logic ICs, notable for combining CMOS low-power characteristics with high-speed operation comparable to LSTTL families. This component is compliant with RoHS environmental standards, ensuring it meets current regulatory demands.

Typical applications include multiplexing, signal switching, and analogue signal routing in industrial equipment, laboratory instrumentation, automation systems, communications, and consumer electronics sectors. The quad SPST configuration provides flexibility in designing complex switching arrangements.

The device operates over a voltage range of 2 to 6 volts, ensuring compatibility with standard CMOS circuits. It features a maximum on-state resistance of 142 ohms, suitable for signal switching applications. The product supports surface mount technology with a compact VQFN package type, measuring 3.1mm in length and 2.6mm in width.

Operating temperature range extends from -40°C to 125°C, supporting industrial environments. It includes 4 independent switch elements on a single chip, enhancing circuit complexity reduction. This CMOS analogue switch complies with RoHS standards, ensuring environmental compliance.

Designed by Nexperia, a known brand for semiconductor components and logic ICs. EnvMart provides detailed industrial-grade listings for semiconductor components such as Analogue Switches to support engineering, manufacturing, and research workflows.
