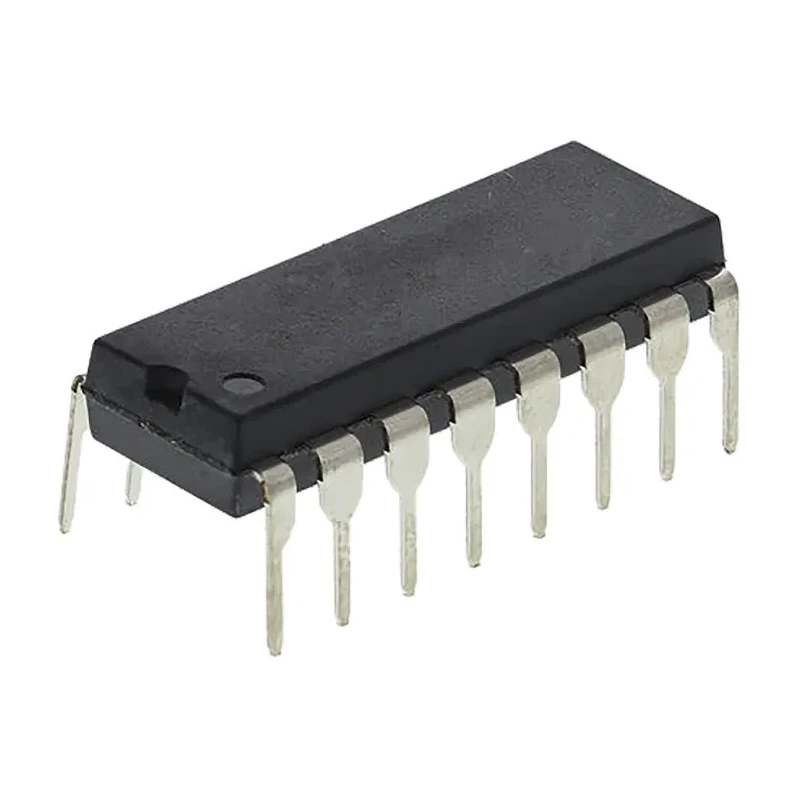

Vishay Analogue Switch 4 CMOS Quad SPST 16-Pin PDIP DG202BDJ-E3
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Vishay |
| Height | 3.81mm |
| Length | 21.33mm |
| Model | DG202BDJ-E3 |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Output type | CMOS/TTL |
| Series | DG202B |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 708-4591PBrand: VishayManufacturers Part No.: DG202BDJ-E3 |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 22V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -22V |
| Maximum On State Resistance | 200Ω |
Key Features
- This analogue switch features quad single-pole single-throw (SPST) configuration for versatile switching.
- It operates within a supply voltage range of -22V to 22V ensuring flexible power input options.
- The device supports CMOS/TTL output types compatible with modern logic circuits.
- It includes a maximum on-state resistance of 200 ohms for efficient signal conduction.
- The operating temperature range from -40°C to 85°C provides robust performance in various environments.
- Compact physical dimensions include a height of 3.81mm, length of 21.33mm, and width of 7.11mm.
- Designed for through-hole mounting in a 16-pin PDIP package for easy PCB integration.
- The DG202BDJ-E3 is part of the DG202B series known for high accuracy and low power consumption.
Product Description
Vishay DG202BDJ-E3 Analogue Switch is a precision 4 CMOS Quad SPST analogue switch housed in a 16-pin PDIP package designed for applications in test equipment, computer peripherals, and portable instruments requiring high accuracy and low power consumption.
This device operates with a supply voltage range from -22V to 22V and supports CMOS/TTL logic output, making it suitable for various electronic designs requiring flexible voltage supplies and compatibility with different logic families.
The analogue switch features a maximum on-state resistance of 200 ohms and works reliably across a wide temperature range from -40°C to 85°C, ensuring operational stability under challenging conditions.
4-element quad SPST configuration for multiple switching needs. Through-hole mount type providing robust mechanical stability. Compact dimensions (3.81mm height, 21.33mm length, 7.11mm width) suited for diverse PCB layouts.
Low power consumption making it ideal for portable and battery-powered devices. Manufactured to meet stringent quality standards, it does not comply with automotive standards.
Commonly used in industrial, laboratory, communication, and consumer electronic applications, this Analogue Switch enables precise signal routing and multiplexing. The product is manufactured in the Philippines and is part of Vishay's DG202B series semiconductor devices.
Explore the Electronics & Electricals category at EnvMart for more Semiconductor and Multiplexer & Demultiplexer IC options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of -22V to 22V, allowing for flexible power input options.
This model supports CMOS/TTL output types, making it compatible with modern logic circuits.
The maximum on-state resistance is 200 ohms, which ensures efficient signal conduction.
It has compact dimensions: a height of 3.81mm, a length of 21.33mm, and a width of 7.11mm.
The operating temperature range is from -40°C to 85°C, providing robust performance in various environments.
This analogue switch features a quad configuration with 4 elements per chip.
It is housed in a 16-pin PDIP package, designed for through-hole mounting.
The product is manufactured in the Philippines.
This model is part of the DG202B series, known for high accuracy and low power consumption.
It is commonly used in industrial, laboratory, communication, and consumer electronic applications for precise signal routing and multiplexing.
This analogue switch has a pin count of 16.
The device is compatible with the CMOS logic family.
