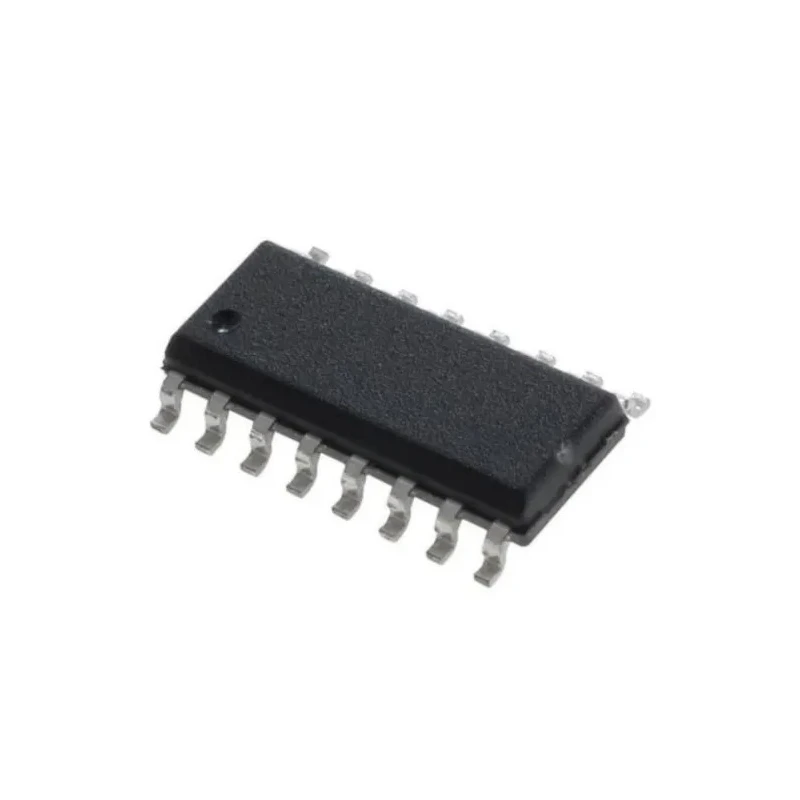

Vishay Analogue Switch 4 CMOS Quad SPST 16-Pin SOIC DG201BDY-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG201BDY-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG201B |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 708-5187PBrand: VishayManufacturers Part No.: DG201BDY-E3 |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 22V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -22V |
| Maximum On State Resistance | 200Ω |
Key Features
- The device operates with a wide dual supply range of ±22V supporting higher-voltage signals.
- Compatible with standard CMOS and TTL logic levels for versatile control.
- Maximum on-state resistance of 200Ω ensures predictable signal attenuation.
- Supports an operating temperature range from -40°C to 85°C, suitable for harsh environments.
- Quad channel configuration simplifies multi-signal routing in mixed-signal circuits.
- Designed for automated surface mount PCB assembly with 16-pin SOIC footprint.
- Ideal for analogue signal multiplexing, audio switching, and precision measurement applications.
- Operates reliably in industrial, laboratory, and portable instrumentation settings.
Product Description
Vishay DG201BDY-E3 Analogue Switch is a four-channel CMOS quad SPST analogue switch designed to provide efficient signal routing and switching in mixed-signal electronic circuits. The device operates with dual supplies up to ±22V, allowing it to handle higher-voltage signals while interfacing with CMOS and TTL logic levels.
Featuring a compact 16-pin SOIC surface-mount package, the DG201BDY-E3 facilitates automated assembly on printed circuit boards. It supports a wide operating temperature range of -40°C to 85°C, enabling reliable performance even in harsh environmental conditions.
The maximum on-state resistance of 200Ω ensures predictable signal attenuation, important for maintaining signal integrity across the switch elements. Each chip includes four independent single-pole single-throw (SPST) channels, which simplify complex multi-signal routing tasks.
Typical industrial applications include analogue signal multiplexing in test rigs, audio switching in mixed-signal equipment, precision front-end measurement channel selection, and routing control signals on industrial PCBs. Its compact design and robust electrical characteristics also make it suitable for portable instrumentation requiring reliable and compact switching solutions.
The device offers a quad channel configuration for multi-signal routing. Compatible with CMOS and TTL logic control inputs. Wide supply voltage range ±22V supports diverse applications. Compact 16-pin SOIC package supports surface mount technology.
Operates over a temperature range from -40°C to 85°C. Maximum on-state resistance of 200Ω for consistent signal handling. Suitable for industrial, laboratory, and portable instrumentation applications.
For comprehensive component selection and design requirements, this Analogue Switch is an industrial-grade solution adhering to RoHS standards, assuring material compliance and quality. Explore other multiplexer and demultiplexer ICs in the EnvMart catalogue for complementary components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is ±22V, allowing it to handle higher-voltage signals.
It operates over a temperature range from -40°C to 85°C, making it suitable for harsh environments.
This model features a quad channel configuration, providing four independent single-pole single-throw (SPST) channels.
The maximum on-state resistance is 200Ω, ensuring predictable signal attenuation.
It is compatible with standard CMOS and TTL logic levels, allowing for versatile control.
The DG201BDY-E3 comes in a compact 16-pin SOIC surface-mount package.
The dimensions are 10mm in length, 4mm in width, and 1.55mm in height.
It is suitable for analogue signal multiplexing, audio switching, and precision measurement applications.
Yes, it adheres to RoHS standards, assuring material compliance and quality.
This model is designed for surface mounting on printed circuit boards.
Each chip contains four elements, corresponding to its quad SPST configuration.
It is beneficial in industrial, laboratory, and portable instrumentation settings.
