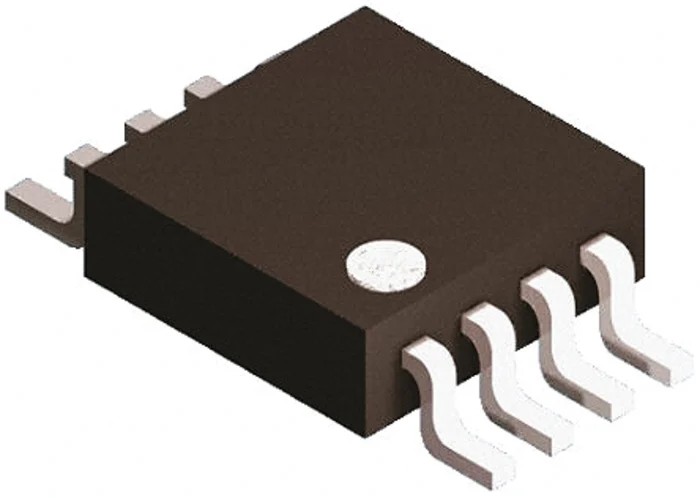

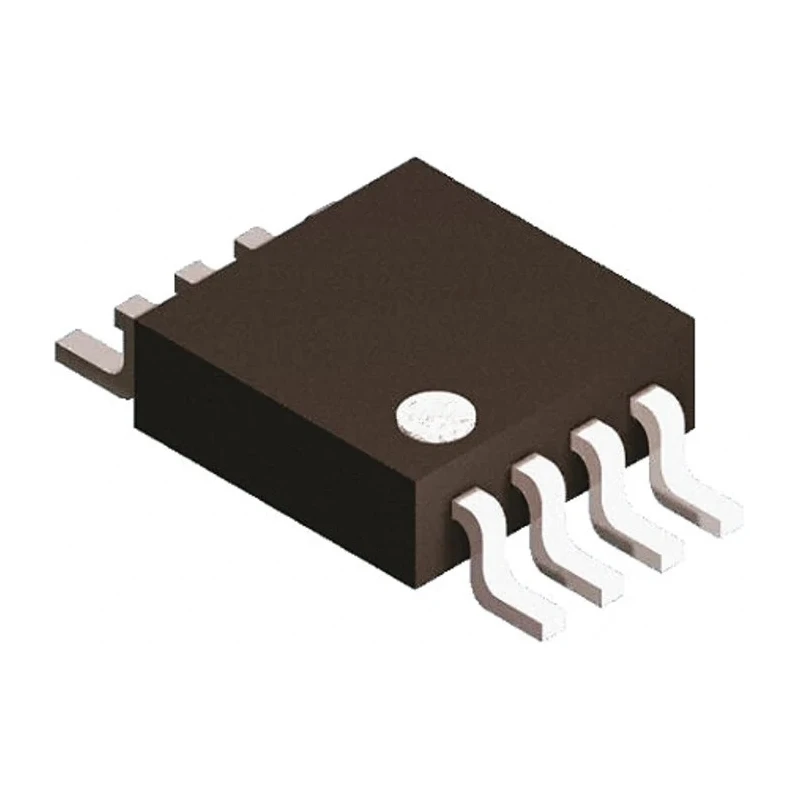

Nexperia Bilateral Switch CMOS Dual SPST Multiplexer 8-Pin VSSOP 1.65 to 5.5 V 74LVC2G66DC,125
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 850μm |
| Length | 2.4mm |
| Model | 74LVC2G66DC,125 |
| Width | 2.1mm |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | CMOS/TTL |
| Series | 74LVC2G66 |
| Configuration | Dual SPST |
| Maximum Operating Temperature | 125°C |
| Package Type | VSSOP |
| Minimum Operating Temperature | -40°C |
| Operating Voltage | 1.65 to 5.5 V |
| Pin Count | 8 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 1.65V |
| Multiplexer/Demultiplexer | Multiplexer |
| Maximum On State Resistance | 195Ω |
Key Features
- Operates across a wide voltage range from 1.65 V to 5.5 V.
- Offers low on-state resistance of 195 ohms for efficient signal switching.
- Compact 8-pin VSSOP package enables space-saving PCB designs.
- Supports dual single-pole, single-throw (SPST) configuration with 2 elements per chip.
- Designed for surface mount applications ensuring easy integration.
- Wide operating temperature range from -40°C to 125°C for reliability.
- Compatible with input LVTTL/TTL and output LVCMOS logic levels.
Product Description
Nexperia 74LVC2G66DC,125 bilateral switch is a high-performance CMOS dual SPST multiplexer designed to provide reliable signal switching in compact electronic applications. Operating over a voltage range of 1.65 to 5.5 V, it supports both LVTTL/TTL input and LVCMOS output compatibility, making it versatile for various logic level interfacing needs.
The device comes in a small 8-pin VSSOP surface mount package measuring 2.4 mm in length, 2.1 mm in width, and 850 micrometers in height, allowing for efficient use of PCB space without compromising performance. Its low maximum on-state resistance of 195 ohms ensures minimal signal loss during switching.
Engineered to function over a wide temperature range from -40°C to 125°C, it offers robust performance in diverse industrial and commercial environments including consumer electronics, communication devices, and automotive electronics not requiring automotive grade certification.
The dual SPST configuration with two elements per chip provides flexible switching options suitable for multiplexing tasks in electronic circuits. This chip is ideal for integration in semiconductor, logic IC, and multiplexer/demultiplexer applications in electronics and electrical systems.
Wide operating voltage range from 1.65 V to 5.5 V. Low maximum on-state resistance of 195 ohms for efficient switching. Compact 8-pin VSSOP package for space-saving installations. Dual SPST configuration with two switch elements per chip.
Surface mount package type facilitating PCB assembly. Operating temperature range from -40°C to 125°C ensuring durability. Compatible with LVTTL/TTL inputs and LVCMOS outputs. Dimensions: 2.4 mm (L) x 2.1 mm (W) x 0.85 mm (H).
It is available for purchase as a single unit or in packs for volume requirements. Explore EnvMart's extensive range of Electronic Components and Semiconductor ICs for complementary devices and electronic solutions.
Explore more products in our Analogue Switch category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates across a voltage range from 1.65 V to 5.5 V.
The maximum on-state resistance is 195 ohms, ensuring efficient signal switching.
This model measures 2.4 mm in length, 2.1 mm in width, and 850 micrometers in height.
It comes in a compact 8-pin VSSOP surface mount package.
It operates reliably over a wide temperature range from -40°C to 125°C.
It is compatible with LVTTL/TTL input and LVCMOS output logic levels.
The chip features a dual SPST configuration with two elements per chip.
Yes, it is designed for surface mount applications, facilitating easy integration into PCB designs.
It is suitable for multiplexing tasks in electronic circuits, including consumer electronics and communication devices.
The logic family of this device is CMOS.
This multiplexer has a pin count of 8.
The output type is CMOS/TTL, providing flexibility in interfacing.
