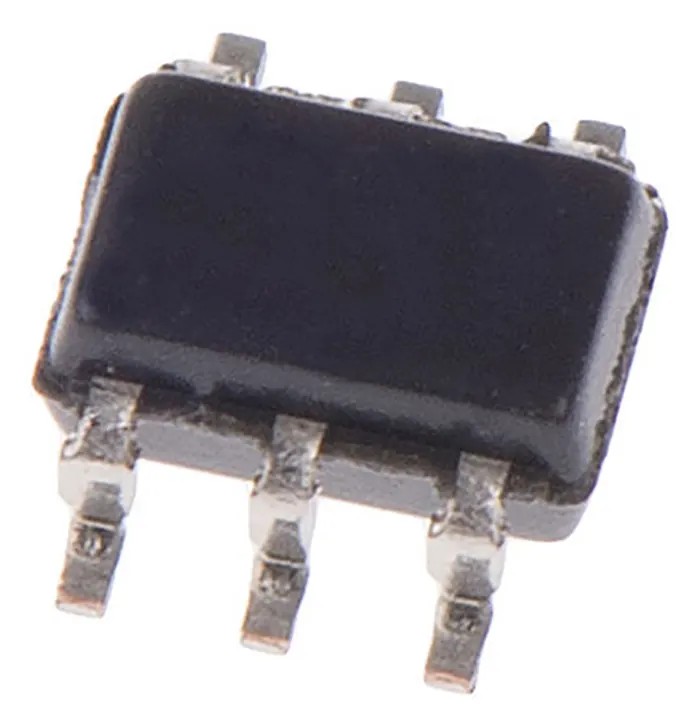

Texas Instruments Analogue Switch 1 CMOS Single SPDT 6-Pin SOT-323 TS5A3159DCKT

Texas Instruments TS5A3159DCKT analogue switch is a high-performance CMOS single SPDT switch with 1 element per chip, housed in a compact 6-pin SOT-323 surface-mount package. Operating over a supply voltage range of 1.65V to 5.5V and rated for temperatures from -40°C to 85°C, this device is suitable for a wide range of industrial, electronic, and communication applications requiring signal routing and switching.

The device's maximum on state resistance of 1.5 ohms ensures minimal signal degradation and power loss, making it ideal for precision analogue signal switching. The CMOS technology facilitates low power consumption and reliable operation. Its miniature SOT-323 package supports high-density PCB layouts, optimizing space in complex circuit designs.

This Analogue Switch complies with the RoHS directive, promoting environmental compliance and safety in electronic manufacturing. Typical use cases include multiplexing, signal selection, and other switching operations in professional electronics, instrumentation, automation, and communication industries.

Operates between 1.65V and 5.5V supply voltage for flexible application integration. CMOS technology ensures efficient, low power switching capability. Compact 6-pin SOT-323 package supports surface mounting and reduces PCB footprint.

Temperature range from -40°C to 85°C suitable for varied environmental conditions. Maximum on state resistance of 1.5Ω ensures effective analog signal integrity. Single SPDT configuration facilitates versatile switching arrangements.

RoHS compliance certifies environmentally responsible manufacturing. Explore the complete range of semiconductor solutions at EnvMart for industrial and laboratory needs.
